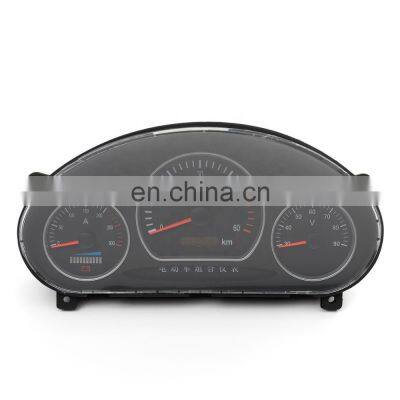

Dash Display Instrument Cluster For Electric Mobility Scooter HXYB

HXYB- B main function:

Power description

1,Normal operating voltage: 3 6 V - 7 2 V

2,Indicator signal operating voltage: 1 2 V/4 8 V(Forward & Reverse)

3,Pulse of Rotary speed sensor in high level: 2~1 2 V

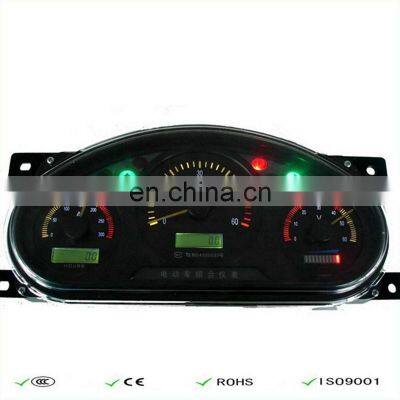

(1) signal lamp

I. Left-turn signal lamp(Green)

II. Right-turn signal lamp(Green)

III. Reversing signal lamp(Green)

IV. Brake signal lamp (Red)

V. Parking brake signal lamp /Handbrake signal lamp(Red)

VI. Forward signal lamp(Green)

(2) Drive: stepper motor

(3) Lighting model: LED light source

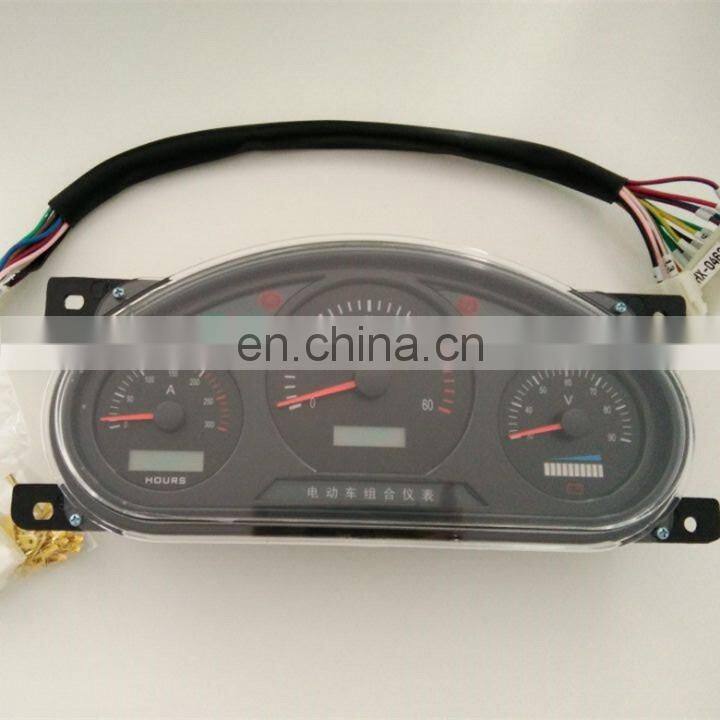

1. Speedometer+information center (Total Odometer ,Trip Meter & Clock)

2. Voltage meter

3. Battery fuel gauge

4. Amperage meter

The combination meter always used for Electric patrol car,sightseeing car ,cleaning cars.

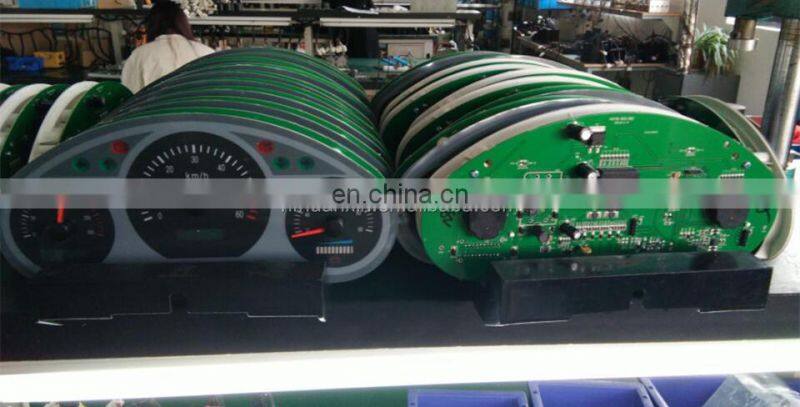

The Instrument cluster are all made by our factory ,Welcome to contact us if you want to know more details.

Picture:

  Package: Normally we use the standard exporting packaging. We also can according to clients' request .
