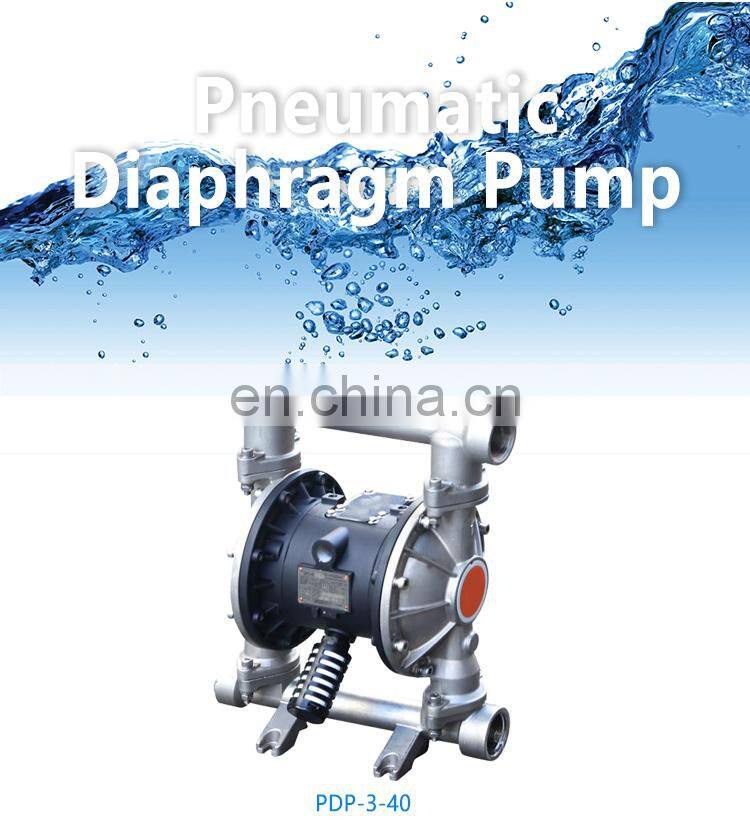

LAB1ST Good Price Pneumatic Diaphragm Pump for Sale

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Labfirst Scientific (LAB1ST) Was Founded and Based in Shanghai, Committed to Providing First-class Equipment for Customers in the Chemical and Pharmaceutical Industry. Our Product Lines Range from Laboratory & Pilot Scale to Industrial Scale and Mainly Focus on the Fine Chemicals, Biological Fermentation, Plant Extraction and Other Related Fields, to Provide All Kinds of Equipment and Turnkey Solutions.

Our Team

Office in China

Warehouse in USA

Warehouse in China

Products Description

Model	PDP-3-20	PDP-3-25	PDP-3-40	PDP-3-50	PDP-3-65
Working pressure (Mpa)	0.2-0.7			0.2-0.84
Fluid temperature (°C)	-50-100
Particle diameter (mm)	≤2.5			≤3.2	≤4.8
Flow (L/min)	≤57			≤151	≤378.5
Air consumption (m3/min)	0.36			0.67	0.9
Maximum lift (m)	70			84		84
Maximum suction lift (m)	4	4.5	5.48
Material	SUS304
Weight(KG)	9.85	9.85	18.35	35	35
*Dimension(LWH mm)*	260×160×305	260×160×305	350×202×409	439×265×536	439×265×536

Model	PDP-3-80	PDP-3-100	PDP-3-125
Working pressure (Mpa)	0.2-0.84
Fluid temperature (°C)	-50-100
Particle diameter (mm)	≤6.3	≤6.3	≤9.4
Flow (L/min)	≤568	≤568	≤1041
Air consumption (m3/min)	1.5~2.0	1.5~2.0	3
Maximum lift (m)	84
Maximum suction lift (m)	5.48	5.48	2.4-7.6
Material	SUS304
Weight(KG)	41.1	41.1	104
*Dimension(LWH mm)*	456×318×801	456×318×801	568×411×967

Real Shot

Recommend Products

About Us

FAQ

1.How many ports on the lid? There are 6 standard ports on the lid of 10L to 200L reactors, including thermometer, vacuum suction, solid inlet, constant pressure funnel, reflux and stirring port. For 1L to 5L reactors, only 5ports on the lid without solid inlet port. 2.Can you provide other type impellers/blades? Yes, different kinds of blades for your choices, such as pitch blade, anchor blade, sprial propeller blade, ribbon blade, pitch-blade, angled pitch blade, rushton blade, etc. 3.Can I make some changes on this reactor? No problem, we provide customization service. 4.What’s size of the adapters of the vessel? They are standard barb or male thread adapters. Please refer to our detailed data specification. 5.Can this reactor make isolate? Yes, you can use it for isolation by high experienced operators. If you are not familiar with the operation technology, our special designed isolation/crystallization reactor will be your best choice.
