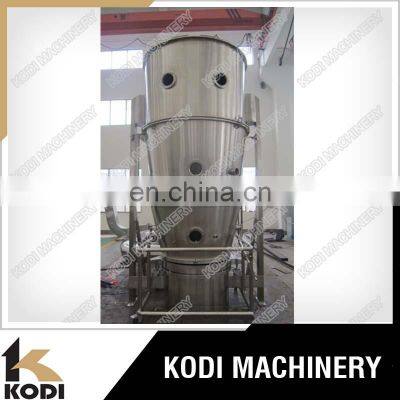

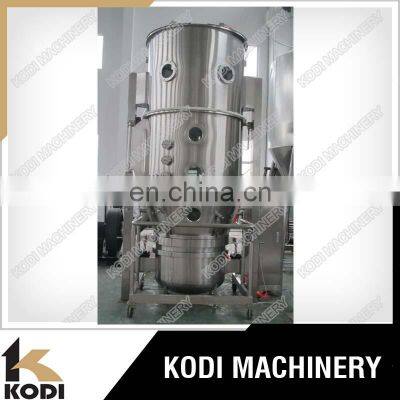

KODI FL Series Pharmaceutical Powder Fluidized Bed Granulating Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
KODI FL 120 Lab Fluid Bed Dryer And Granulator For Casein
-
KODI FL Series High Efficiency FL 50 Pharmaceutical Fluid Bed Granulator
-
KODI FL Fluid Bed Granulator For Lemon Juice Granule
-
KODI FL 120 Fruit Juice Powder Fluid Bed Dryer and Granulator
-
KODI FL Model Instant Granule Fluid Bed Granulator
-
KODI FL Model Milk Powder Fluid Bed Granulator

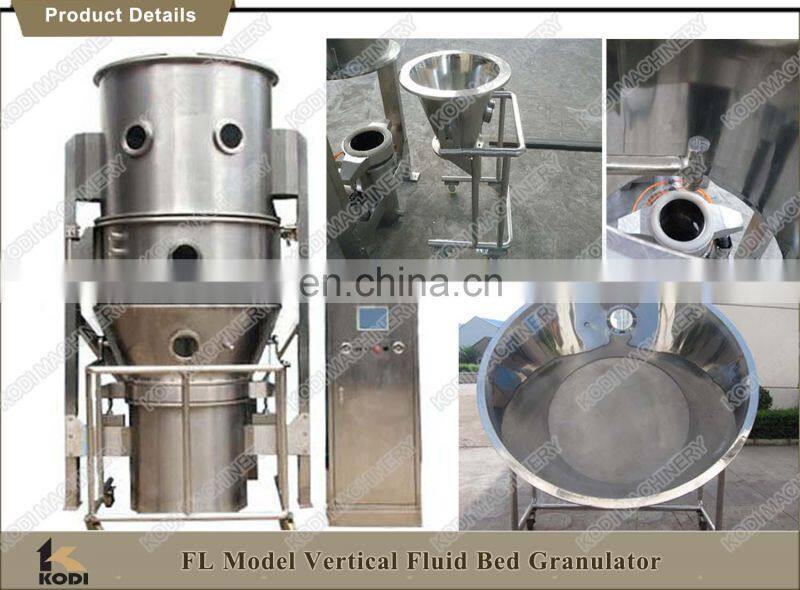

Product Description
Product Description
FL Powder Fluid Bed Dryer and Granulator
1. Fruit juice powder granulator / fluid bed dryer and granulator / Granulating machine
2. GMP stardand
3. Easy to operate and cleaning
4. Mixing-granulating-drying in one body
KODI FL Powder Fluid Bed Dryer and Granulator
1. Fruit juice powder granulator / fluid bed dryer and granulator / Granulating machine
2. GMP stardand
3. Easy to operate and cleaning
4. Mixing-granulating-drying in one body
KODI FL Powder Fluid Bed Dryer and Granulator
Fluid Bed Dryer and Granulator is mainly used for the operations of mixing, granulating, drying and coating of granule "Top
Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of
tablet, granule for quick resolving drinking, condiment. The machine is manufactured in accordance with JB20014-2004 Fluid-bed Granulator In Medicine
Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of
tablet, granule for quick resolving drinking, condiment. The machine is manufactured in accordance with JB20014-2004 Fluid-bed Granulator In Medicine
Features of Powder Fluid Bed Dryer and Granulator
1.Mixing-granulating-drying in one-step.
2.Adopting double chamber filtering bags system, remove dust completely.
3.Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the content of powder is very low.
4.Can choose 2 bar explosive-proof design
5.Designed, manufactured and laid out by GMP
Working Principle of FL Powder Fluid Bed Dryer and Granulator
The Powder granule the container (fluidized bed)appear the state of fluidization. It is preheated and mixed with clean and heated air. At the same the solution of adhesive solvent is fogged and sprayed into the container. It makes the Same particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Drawings of FL Powder Fluid Bed Dryer and Granulator
1.Mixing-granulating-drying in one-step.
2.Adopting double chamber filtering bags system, remove dust completely.
3.Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the content of powder is very low.
4.Can choose 2 bar explosive-proof design
5.Designed, manufactured and laid out by GMP
Working Principle of FL Powder Fluid Bed Dryer and Granulator
The Powder granule the container (fluidized bed)appear the state of fluidization. It is preheated and mixed with clean and heated air. At the same the solution of adhesive solvent is fogged and sprayed into the container. It makes the Same particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Drawings of FL Powder Fluid Bed Dryer and Granulator
Technical Parameters of FL Powder Fluid Bed Dryer and Granulator
Specification

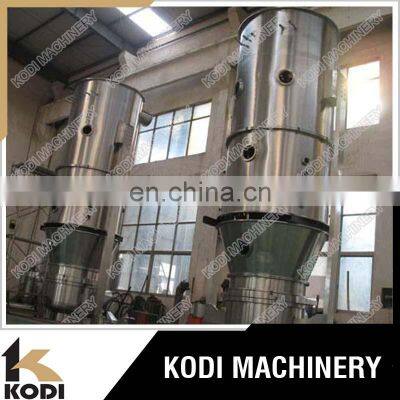

Successful Experience Overseas By KODI FG Vertical Fluid Bed Dryer
Name | Unit | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 |
Container Volume | L | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 |
Capacity | kg/batch | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 |
Steam(Pressure) | Mpa | 0.4-0.6 | |||||||
Steam(Consumption) | kg/h | 10 | 18 | 35 | 60 | 99 | 120 | 130 | 140 |
Power of fan | kw | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 |
Power of electricity heater | kw | 6 | 9 | ||||||
Noise | dB | Not more than 75dB Separated of fan | |||||||
Compressed air(pressure) | Mpa | 0.6 | |||||||
Compressed air(Consumption) | m 3 /min | 0.3 | 0.3 | 0.6 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 |
Name | Unit | 150 | 200 | 300 | 500 | 800-1000 |
Container Volume | L | 550 | 670 | 1000 | 1500 | By client |
Capacity | kg/batch | 150 | 200 | 300 | 500 | |
Steam(Pressure) | Mpa | 0.4-0.6 | ||||
Steam(Consumption) | kg/h | 161 | 180 | 310 | 400 | |
Power of fan | kw | 22 | 22 | 30 | 45 | |
Power of electricity heater | kw | 9 | ||||
Noise | dB | Not more than 75dB Separated of fan | ||||
Compressed air(pressure) | Mpa | 0.6 | ||||
Compressed air(Consumption) | m 3 /min | 0.9 | 1.1 | 1.3 | 1.5 |
Successful Experience Overseas By KODI FL Powder Fluid Bed Dryer and Granulator

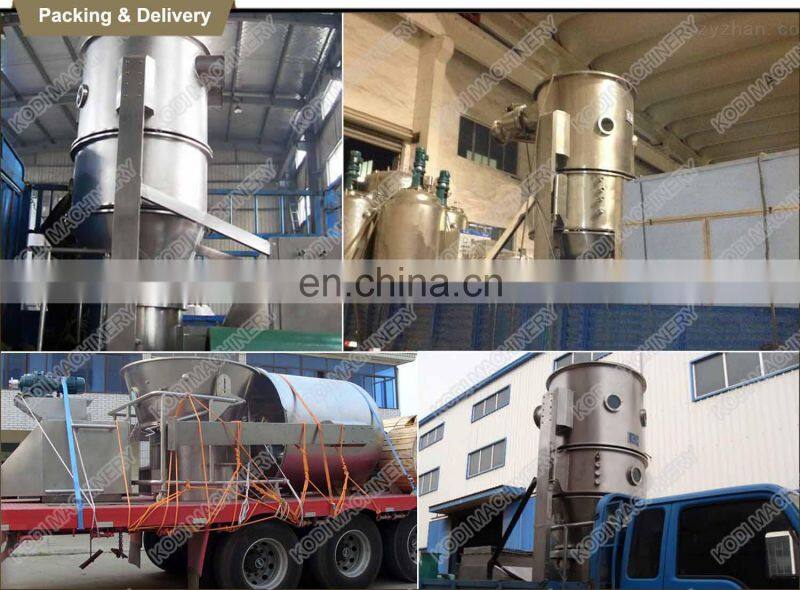

Packing & Delivery
Company Profile
Why Choose KODI
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedback
* One-stop service, customized exclusive project feasibility report
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedback
* One-stop service, customized exclusive project feasibility report
About KODI
KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), LPG Spray dryer, Food ingredients spray dryer, Industrial spray dryer, egg spray dryer / Collagen Spray Dryer / Enzymes Spray Dryer, Whey spray dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer, Spray drying equipment,Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc.
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.
KODI company also has a lot of top talent which have more than 15 years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as China, Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!
Our Service
Pre-sale service
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
FAQ
Special Notice:
In order to quota you the right egg spray dryer / Collagen Spray Dryer / Enzymes Spray Dryer with best price, we would like to get the following information include in your inquiry:
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the capacity per hour you need (kg/h)?
* -What is the initial moisture and final moisture of finished products you require to get?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you 1 hour to get Changzhou.Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
In order to quota you the right egg spray dryer / Collagen Spray Dryer / Enzymes Spray Dryer with best price, we would like to get the following information include in your inquiry:
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the capacity per hour you need (kg/h)?
* -What is the initial moisture and final moisture of finished products you require to get?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you 1 hour to get Changzhou.Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
