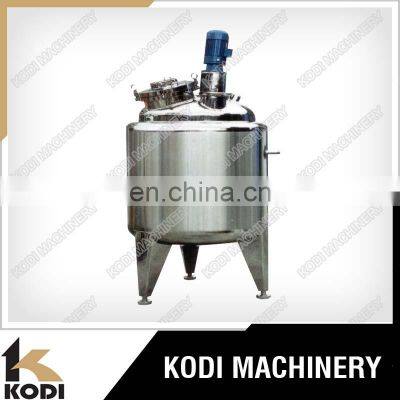

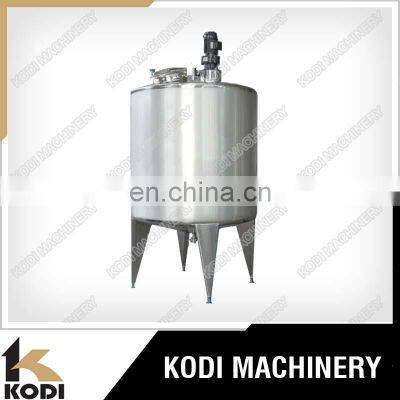

Stainless Steel Vertical Mixing Tank Agitator Tank With Jacket
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Product Description
Description of Stainless Tank Agitator Mixer
Blending preparation Stainless Tank Agitator Mixer , also called as materials blending tank or materials mixing tank , have the advantages such as being energy saving , corrosion-proof , strong productivity and easy to clean etc .
And it is mainly used for blending and homogenizing of dairy products , sugar , other elements and various medicines , as an indispensable equipment for dairy products, beverage and pharmacy manufacturers . It is made of SUS304 or 316 stainless steel and it in accordance with GMP production standard.
Electric Heating mixing tank is a type of tank makes enzymes decompose in optimum conditions and converts certain substances into some other substances with better performances through action of enzymes . The jacket can be used for heating or cooling , attached with external heat preservation layer
And it is mainly used for blending and homogenizing of dairy products , sugar , other elements and various medicines , as an indispensable equipment for dairy products, beverage and pharmacy manufacturers . It is made of SUS304 or 316 stainless steel and it in accordance with GMP production standard.
Electric Heating mixing tank is a type of tank makes enzymes decompose in optimum conditions and converts certain substances into some other substances with better performances through action of enzymes . The jacket can be used for heating or cooling , attached with external heat preservation layer
Application of Stainless Tank Agitator Mixer
1.Cosmetic and daily chemical product: Cosmetic cream, lotion, shampoo, detergent, health care product, gel, Laundry detergent, hand sanitizer, armpits lotion etc.
2.Pharmaceutical product: Ointment, Ice packs, injection liquid, penicillin etc
3.Food : Salad, mayonnaise, peanut butter, sesame butter, buttery, Animal fat, iced products, healthy food etc.
4. Beverage: Fruit Juice, Milk Juice etc.
5.Chemical: Paints, Pigments, dyes, phto solvents, Rubber and resin, pesticides ,Shoe polish, general chemicals etc.
2.Pharmaceutical product: Ointment, Ice packs, injection liquid, penicillin etc
3.Food : Salad, mayonnaise, peanut butter, sesame butter, buttery, Animal fat, iced products, healthy food etc.
4. Beverage: Fruit Juice, Milk Juice etc.
5.Chemical: Paints, Pigments, dyes, phto solvents, Rubber and resin, pesticides ,Shoe polish, general chemicals etc.
Structure of Stainless Tank Agitator Mixer
1. Electric heating
2. Jacketed with insulation layer
3. With or without mixing system. Mixing device: Paddle, Anchor, or spiral agitator (optional and changeable to meet customer demands).
4. Material: SUS 304 or SUS 316.
5. Outer casing surface: Mirror polishing / 2B original sub-gloss / 2B frosted sub-gloss; Inner surface (bladder and tank): Mirror polishing (Roughness: Ra≤ 0.4μ M ).
6. Liquid level gauge: Digital metre or glass gauge optional.
7. Thermometer: Optional. Temperature indication ranges from 0 to 100º C.
8. Sample valve optional
9. CIP cleaning: T-shaped 360° Rotational CIP cleaning ball.
10. Man-hole equipped.
Performance and characteristicsof Stainless Tank Agitator Mixer
1.High speed disperser. Might mixing and disperse viscously, solid and liquid etc. Various kind of raw material will be dissolve which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production the and shorten production period.
2.Main adopts stepless timing device which reduce babble occur under low temperature and high viscosity condition less air bubble will be formed to produce liquid washing products.
3.Finished products can be discharged by Disc-valve or suitable to all liquid wash products.
1. Electric heating
2. Jacketed with insulation layer
3. With or without mixing system. Mixing device: Paddle, Anchor, or spiral agitator (optional and changeable to meet customer demands).
4. Material: SUS 304 or SUS 316.
5. Outer casing surface: Mirror polishing / 2B original sub-gloss / 2B frosted sub-gloss; Inner surface (bladder and tank): Mirror polishing (Roughness: Ra≤ 0.4μ M ).
6. Liquid level gauge: Digital metre or glass gauge optional.
7. Thermometer: Optional. Temperature indication ranges from 0 to 100º C.
8. Sample valve optional
9. CIP cleaning: T-shaped 360° Rotational CIP cleaning ball.
10. Man-hole equipped.
Performance and characteristicsof Stainless Tank Agitator Mixer
1.High speed disperser. Might mixing and disperse viscously, solid and liquid etc. Various kind of raw material will be dissolve which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production the and shorten production period.
2.Main adopts stepless timing device which reduce babble occur under low temperature and high viscosity condition less air bubble will be formed to produce liquid washing products.
3.Finished products can be discharged by Disc-valve or suitable to all liquid wash products.
Specification
Effective volume | Dimension of tank | Total height | Diameter of inlet & outlet | Heat preservation layer | Motor power | Blending speed |
(L) | (mm) | (mm) | (mm) | (mm) | (kw) | (r/min) |
500 | 840*1000 | 2750 | 60 | 38 | 0.55 | Common rotation speed 35,43,60 ; stepless speed reducer or dual-speed reducer are also available |
600 | 920*1000 | 2850 | 60 | 38 | 0.55 | |
700 | 990*1000 | 2850 | 60 | 38 | 0.55 | |
800 | 950*1220 | 3000 | 60 | 38 | 0.55 | |
900 | 1010*1220 | 3000 | 60 | 38 | 0.55 | |
1000 | 1060*1220 | 3150 | 60 | 51 | 0.75 | |
1500 | 1160*1500 | 3350 | 60 | 51 | 0.75 | |
2000 | 1340*1500 | 3410 | 60 | 51 | 1.1 | |
3000 | 1410*2000 | 4000 | 60 | 51 | 1.5 | |
4000 | 1620*2000 | 4250 | 60 | 51 | 1.5 | |
5000 | 1810*2000 | 4300 | 60 | 51 | 2.2 | |
6000 | 1980*2000 | 4550 | 60 | 51 | 2.2 | |
7000 | 1930*2440 | 5000 | 60 | 51 | 2.2 | |
8000 | 2060*2440 | 5000 | 60 | 51 | 3 | |
9000 | 2180*2440 | 5050 | 60 | 51 | 3 | |
10000 | 2300*2440 | 5050 | 60 | 51 | 3 | |
12000 | 2270*3000 | 5600 | 60 | 51 | 4 | |
15000 | 2530*3000 | 5700 | 60 | 51 | 4 | |
20000 | 2640*3660 | 6400 | 60 | 51 | 5.5 |
Remark: we can meet the requirement as per your drawings or samples
Stainless Tank Agitator Mixer Sucessful Project
Stainless Tank Agitator Mixer Process Flow Chart
Company Profile
Why Choose KODI
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedback
* One-stop service, customized exclusive project feasibility report
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedback
* One-stop service, customized exclusive project feasibility report
About KODI
Changzhou KODI Machinery Co., Ltd. located in the birthplace of China drying equipment----Zhenglu Industrial Park, Changzhou City, Jiangsu Province which is 150km away from Shanghai city, with a comfortable environment and convenient transportation access.KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), Spray dryer, Food ingredients spray dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer, Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in Stainless Steel ribbon blender, horizontal ribbon blender, double ribbon blender, high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and hermetic leaf filter,high efficiency stainless steel leaf filter etc.
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.
KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!
Our Service
Pre-service:
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
FAQ
Special Notice:
In order to quota you the right horizontal ribbon blender / double ribbon blender / horizontal ribbon blender with best price, we would like to get the following information include in your inquiry:
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the capacity per hour you need (kg/h)?
* -What is the initial moisture and final moisture of finished products you require to get?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
In order to quota you the right horizontal ribbon blender / double ribbon blender / horizontal ribbon blender with best price, we would like to get the following information include in your inquiry:
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the capacity per hour you need (kg/h)?
* -What is the initial moisture and final moisture of finished products you require to get?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
