High Quality Granulation Machine Pharmaceutical
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Njp 1200 Automatic Hard Shell Capsule Machine Maquina de Encapsuladora Drugs Encapsulation Machine
-
High Speed Automatic 25mm Effervescent Tablet Press Machine
-
FLP 5 Mini Lab Pilot Pharmaceutical Fluid Bed Granulator Fluidized Bed Dryer Fluid Bed Processor
-
Automatic Rotary Type Ampoule Filling and Sealing Machine
-
Supercritical Co2 Extractor for Oil Production Line
-
Good Quality Plastic Aluminium Tube Filling Sealing Machine
Product Description
Product Description

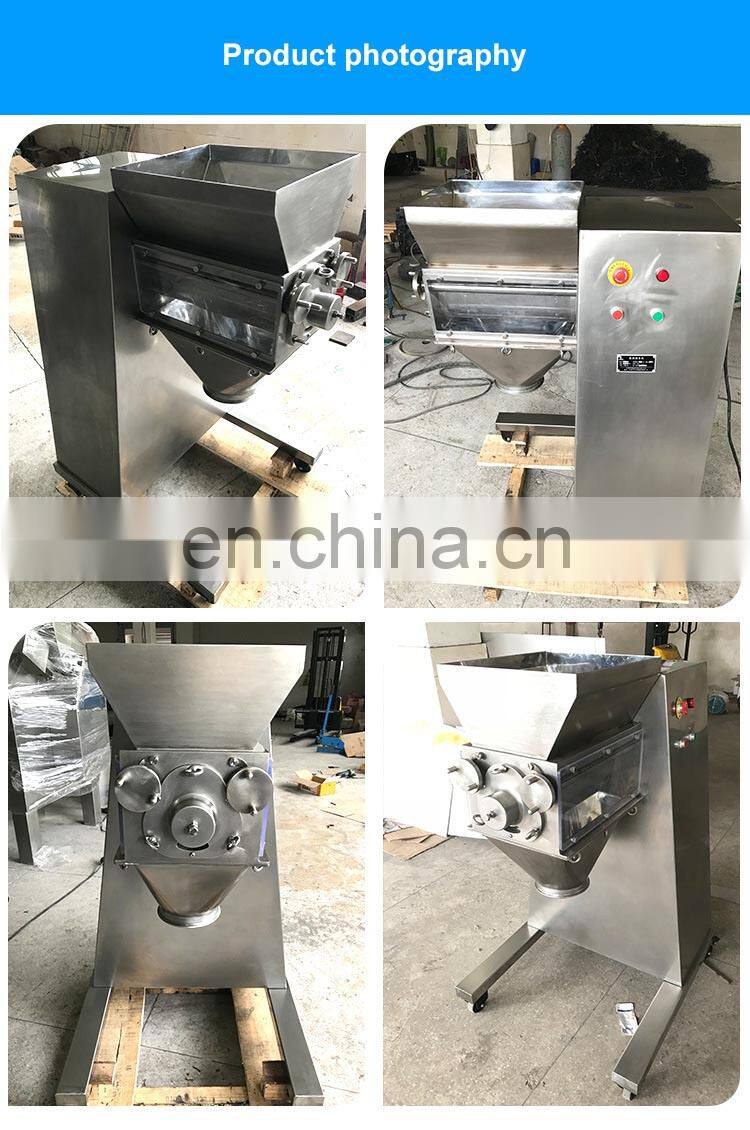

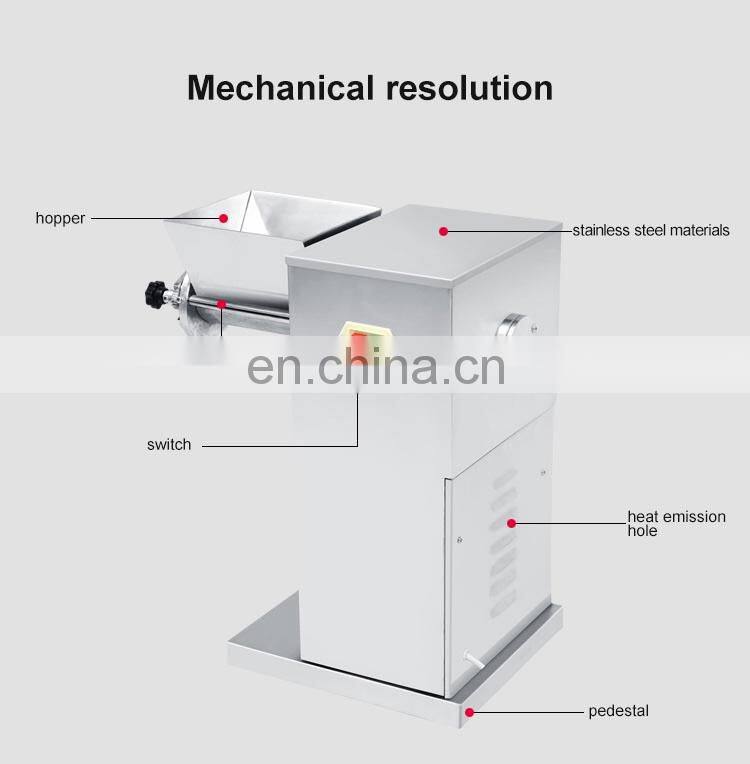

Detailed Image
Features

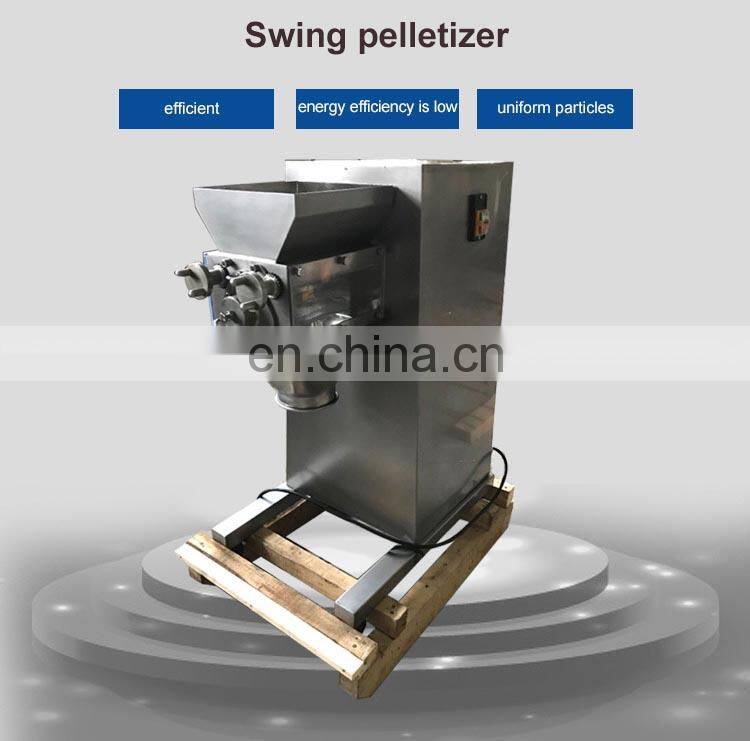

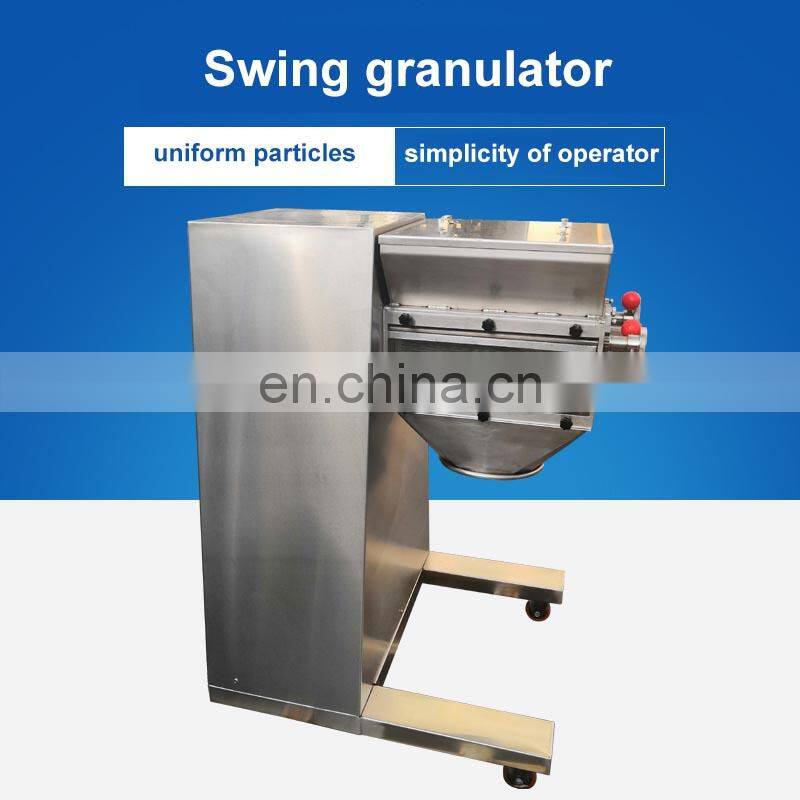

○ This Oscillating granulating machine makes use of the rolling motion of rotating barrel, granulates the wet powder materials into granule by sieve, it also can be used to crush agglomerate materials into small granules directly.
○ In chemical medicine field, it can be used for granulating the mixed powder into granule, and compressed into tablet after being dried. It also can be used for granulating the coagulated material that is formed during storage or during chemical processing, In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products. In other industries, it can be used to granulate such as porcelain and plastic mixtures into forming granules.
○ It is not suitable for solid, fluid medium, paste or pulverizing.
○ Its mesh number of sieve should be prepared by users, according to the size of granule.
○ In chemical medicine field, it can be used for granulating the mixed powder into granule, and compressed into tablet after being dried. It also can be used for granulating the coagulated material that is formed during storage or during chemical processing, In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products. In other industries, it can be used to granulate such as porcelain and plastic mixtures into forming granules.
○ It is not suitable for solid, fluid medium, paste or pulverizing.
○ Its mesh number of sieve should be prepared by users, according to the size of granule.
Model | YK160 (heavy type) | YK200 |
Productive capacity (kg/h) | 150-300 | 200-500 |
Power of motor (kw) | 3 | 5.5 |
Revolution of roller (r/min ) | 65 | 65 |
Swing angle (°) | 360° | 360° |
Diameter of roller (mm) | φ160 | φ200 |
Overall dimensions (mm) | 1260*750*1150 | 1400*850*1400 |
Weight (kg ) | 300 | 450 |
More models need to be customized, please contact us.
Product Application
This machine is mainly suitable for pharmaceutical industry, chemical industry and foodstuff industry to make granule with different specifications. After it is dried through backing, then press it to form all kinds of shaped products. It can also be used for dry block raw material that is crushed and coagulated.

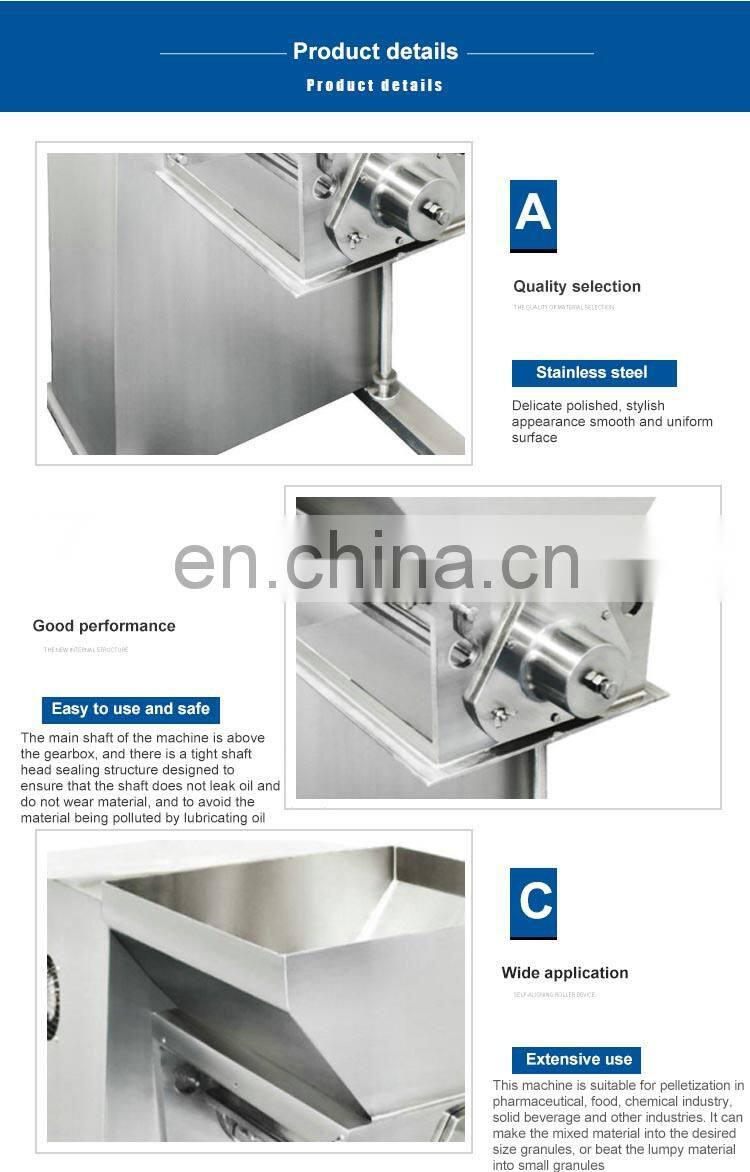

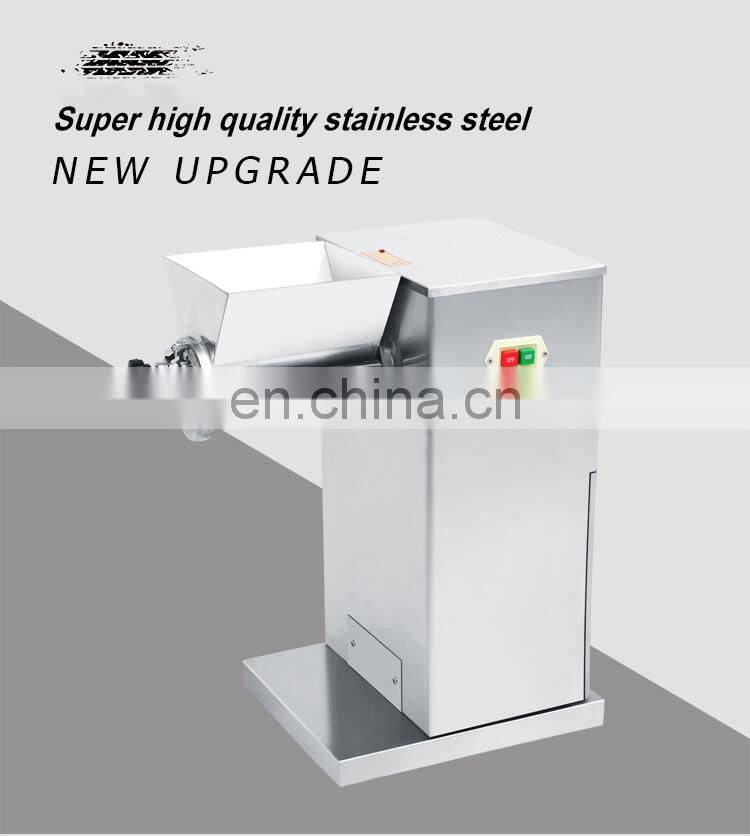

All parts in this machine are made of stainless steel. Its appearance is beauty. Its cleaning is very convenient. Its operation is very simple. Its energy consumption is very low.
