DTJ-C Semi Automatic Capsule Filling Machine
- T/T Credit Card
You May Like
-
SNGR-2B Automatic Vial Bottle Filling, Stoppering and Capping Machine/ Vial Filler
-
Vacuum Freeze-drying Machine/ Vacuum Dryer Series for Vegetable and Fruit
-
LG200 Freeze Drying Machine for Fruit and Vegetables
-
Sinoped High Quality Laboratory Powder Mixer Makeup Powder Blender Mill,Herb Powder Blender Mill
-
Chemical Machinery & Equipment V Type Mixing Machine
-
V Shape 1000 L Easy Operation Pharmaceutical Machinery Chemical Powder Blending Mixing Machine Mixer
Product Description
Features
• Matching different size formats to fill 000#~ 4#capsule;
• One size capsule matched one set format;
• It can finish the whole filling capsule process, adjusted the capsule of cap and bottom, open the cap and bottom, filling powder, get rid of unqualified capsules, close the capsule, finished capsule;
• Satisfied GMP standard, the powder will not be pollution, save powder materials than automatic capsule filling machine. Easy to be clean;
• Low wear and tear. The structure is new, improved design;
• Can filling all kinds of Chinese and foreign medicine powder, and granules;
• Frequency control, the operation is safety and simply;

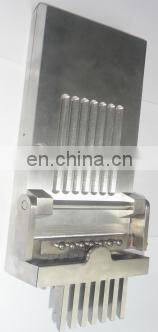

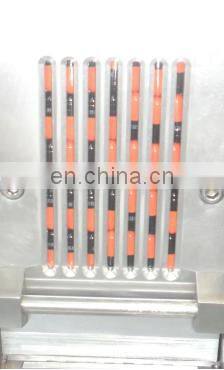

I. New Type of Capsule Sowing Plate Parts



Old Type
New Type (our company)
New Type (our company)
Materials | Disassembly | Install | Defect capsule |
304 stainless steel,CNC machining molding, meet GMP standard. | Can be completely clean residue | Have a positioning device, easy to repeated disassembly and installation, no adjustment | Have a perspective window can be found as early as possible, can be resolved without stopping machine, convenient and easy |
Installing Overall Visual of Capsule Sowing Plate Parts


Old Type
New Type (our company)
Other facotry (old type) | Our company (new type) |
Old mechanical parts most exposed to external operation, easy to cause the oil powder flying,no mould positioning device, adjusting was complicated, the operator will have bad efficiency, the overall visual effect is poor. | All the mechanical running parts are packed in capsule sorting plate, no exposed mechanical running parts.All moulds adopt position device,assemble and disassemble are very clean and extremely convenience,aesthetic appearance and practical clean and use. |
II. Regulating block

Old Type

New Type (our company)
Materials | Installation | |
Other facotry (old type) | cast copper,shaped through miling,this can not meet GMP standards. | no positioning device,manual adjustment is needed after installation |
Our company (new type) | SUS304 regulating block manufactured through wire cutting and polishing,in compliance with GMP standard | positioning device,easy to repeatly dismantle and install,no need to adjust |

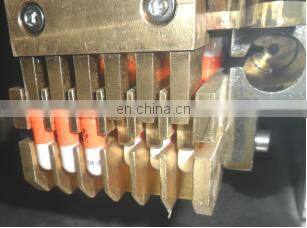

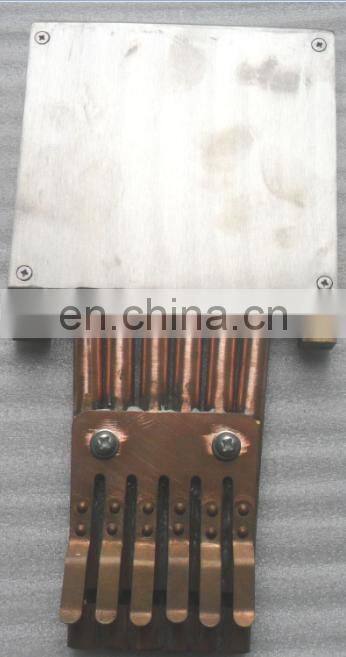

III. Comparison Between New and Old Capsule Feeding Fork



Old Type (no turning function)

New Type (turning function)
Material | Installation | Running | |
Other facotry (old type) | cast copper,shaped through miling, this can not meet GMP standards. | with long groove | only activate capsule pushing process. |
Our company (new type) | SUS304 regulating block manufactured through wire cutting and polishing,in compliance with GMP standard | with long groove | activate capsule pushing process,meanwhile activate capsule turning process |
IV. Capsule Discharging Switch



Old type New type: capsule discharging switch(off,on)
Other factory (old type) | Old type does not have capsule discharging switch,capsule control frame is behind copper frame,which is very complicated to adjust and uncontrollable. Every time capsule plugging board runs up and down,the capsules will be discharged. | ||||
Our company (new type) | New type capsule plugging board is very humanized-controllable capsule discharging switch.When user wants to adjust the machine or start the machine,but do not hope to discharge the capsules,please slightly plug out control switch.This device could reduce capsule consumption during trouble shooting,which is very effective.There is no switch on old type capsule filling machine,so every time the machine runs,the capsules will be discharged,which wastes the capsules. | ||||
V. Discharging effect comparison



New type Capsule is declined as shown (old type)
Other factory (old type) | Old type device horizontally pushes the capsules with no turning,slightly press capsule head then turns the capsule.Capsules are lined up in tilted position into 2 rows then fed into mould cavities, which increases tolerance percentage,and affect the rate of final product. | ||||
Our company (new type) | New type device horizontally turns the capsule,presses the capsule head, then moves vertically.Capsules are vertically lined up in single row and smoothly enters into mould cavity. | ||||
Technical Parameter | ||||||
Model | SNTJ-C | |||||
Capacity | 10,000 – 25,000 pieces/hour | |||||
Filling Range | Size 00, 0, 1, 2, 3, 4 empty hard gelatin capsules | |||||
Filling Type | Powder/Tiny granules | |||||
Power and Voltage | 380V, 50Hz, 3phases, 4.0 KW | |||||
Air Pressure | 0.03m3/min 0.7Mpa | |||||
Vacuum Pump | 40m3/h | |||||
Weight | 380KG | |||||


We offer professional turnkey project from design till done of the whole project:
?Conceptual design
?Design
?Factory building
?Clean room and machine manufacturing
?Installation
?Commissioning
?Training
?Assist validation and production
?Customer's project works well...
?Tablet press machine
?Capsule filling machine
?Vila line
?Ampoule line
?Fluid bed dryerFreeze dryer(lyophilizer)
?Blister and cartoning line
?Cleaning room
?Sterilizer
?Washing machine
?Tank
?Tablet coating machine
?Candy coating machine
?Candy pillow-type packing machine
?Granulator
?Tube filing and filling machine
?Etc.

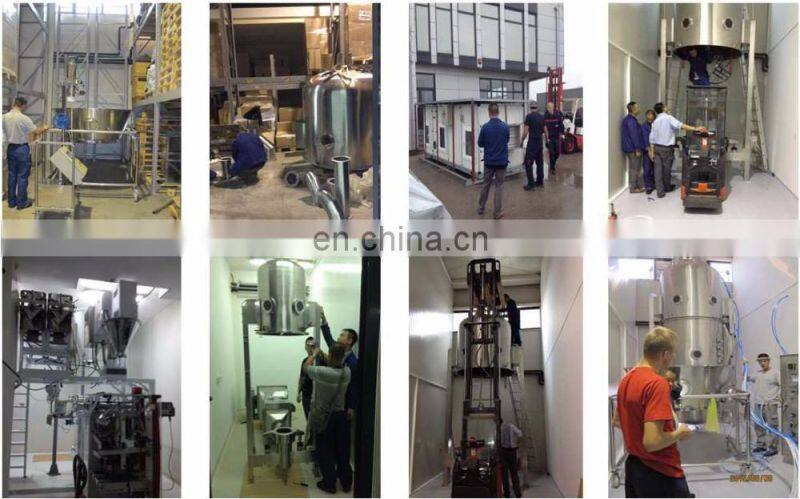

Professional team at the working site

Warranty
18 months from the date when you received machine or 12 months when installation finished;
Consultant services for whole machine life, 24 hours technical support.
After-Sale Service
1. We will send our technical enginner to your country to do installation, and training.
2. After our machine arrived to your country, we can send our technician to do the installation and training, and your part bear the airplane fee, the local accommadation and time fee.
3. One year free spare part free with our machine.
Welcome to choice our product , please give us more advices . Thank you!

Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPED International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties. Our main products are filling machines, glass-lined reactors, fermentors, centrifuges, granulators, mixers, dryers, pulverizers, tablet presses, soft and hard blister packing machines, capsule filling machines, cartoners and rollers etc.
In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, Besides machinery and equipment, we also supply production lines, turn key projects and know-how.
In SINOPED you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad
