Home > Products > Hoses > New Hot Selling Products Wear Resistant Composite Hose With EN13766 Standards
New Hot Selling Products Wear Resistant Composite Hose With EN13766 Standards
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Original Factory BV Certificate Transoil Composite Hose Testing For Tanker
-
Manufactory Wholesale Best Customer Testimonials 12 IN Composite Vacuum Hose
-
China Big Factory Good Price Customized 16 Bar 3/4 Composite Hose For Sale
-
Factory Price Wholesale Anti Collision 969 Composite Hose for Oil
-
Floating Dredging Hose for Commercial Official Discharge Ship Floating Dredging Hose
-
Manufacturers 2021 Anti-corrosion Discharge Rubber Self Floating Dredge Hose 24/40 Flange for Sand Dredging
Product Description

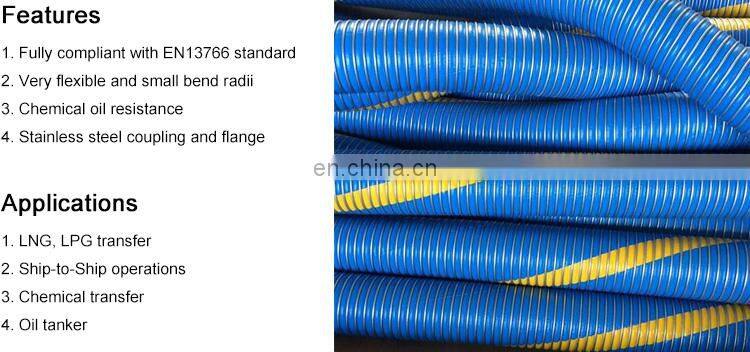

Composite Hose
Exclusive construction allows for excellent flexibility. Rugged cover is resistant to oil, cuts, scuffs and ozone attack. The Hongruntong composite hose is designed with the combination of multilayer of different polymers and spirals in stainless steel 316L with the latest manufacturing technology that makes it an excellent and safe solution to support cryogenic products at extreme temperatures up to -196ºC and working pressures up to 10,5Bar.In typical applications such as liquefied natural gas discharge loading both on trucks, wagons and even Marine applications. Included bunkering operations ship to ship.
Product Description
Specification
Model | Dimensions | Working Pressure | Safety Factor | Bending Radius | Weight | Length | ||||||||||
[mm] | [inch] | [bar] | [psi] | [kg] | [m] | |||||||||||
HM-CH20 | 20 | 3/4" | 16 | 230 | 8:1 | 80 | 0.8 | 40 | ||||||||
HM-CH25 | 25 | 1" | 16 | 230 | 8:1 | 100 | 1.0 | 40 | ||||||||
HM-CH32 | 32 | 11/4" | 16 | 230 | 8:1 | 125 | 1.3 | 40 | ||||||||
HM-CH40 | 40 | 11/2" | 16 | 230 | 8:1 | 140 | 1.5 | 40 | ||||||||
HM-CH50
| 50 | 2" | 16 | 230 | 8:1 | 180 | 2.5 | 40 | ||||||||
HM-CH65 | 65 | 21/2" | 16 | 230 | 8:1 | 200 | 3.3 | 40 | ||||||||
HM-CH80 | 80 | 3" | 16 | 230 | 8:1 | 260 | 4.0 | 40 | ||||||||
HM-CH100
| 100 | 4" | 16 | 230 | 8:1 | 380 | 6.8 | 40 | ||||||||
HM-CH125 | 125 | 5" | 16 | 230 | 8:1 | 440 | 9.2 | 40 | ||||||||
HM-CH150 | 150 | 6" | 16 | 230 | 8:1 | 500 | 13.2 | 40 | ||||||||
HM-CH200 | 200 | 8" | 16 | 230 | 8:1 | 750 | 18.0 | 40 | ||||||||
HM-CH250
| 250 | 10" | 16 | 230 | 8:1 | 900 | 26.0 | 25 | ||||||||
*Note: Various sizes can be customized according to the requirements. | ||||||||||||||||
