85V P4SMF Series 250V ESD Protection Transient Voltage Suppression Tvs Diode Tvs Array Replace Littelfuse Semtech Vishay Bourns

Xiamen SET Electronics Co., Ltd.

● 400 W peak pulse capability at 10/1000 μS waveform, repetition rate (duty cycles):0.01%

● Compatible with industrial standard package SOD-123FL

● Low profile: maximum height of 1.2 mm.

● Low inductance, excellent clamping capability

● For surface mounted applications to optimize board space

● High temperature to reflow soldering guaranteed: 260°C / 30 sec

● Typical failure mode is short from over-specified voltage or current

● Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

● IEC-61000-4-2 ESD 30 kV (Air), 30 kV (Contact)

● ESD protection of data lines in accordance with IEC 61000-4-2

● EFT protection of data lines in accordance with IEC 61000-4-4

● Fast response time: typically less than 1.0 ns from 0 Volts to VBR min

● Glass passivated junction

● Built-in strain relief

● Plastic package is flammability rated V-0 per UL 94

● Meet MSL level1, per J-STD-020

● Matte tin lead–free plated

● Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/ JEDEC J-STD-609A.01)

● Halogen-free and RoHS compliant

Surface Mount

SMD

● Communication Equipment

● Security & Protection

● Industrial Control Equipment

● Power Supply

● Automotive Electronics

● New Energy

● Lightning Protection

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Process, Online Inspection and Testing (Function 100% Test).

IPQC (AQL, Dimension, Function, Visual Inspection).

FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Reliability Test (AQL).

OQC (Packaging, Labeling, Quantity Inspection).

Quality Management System (TUV Approved and issued certificate).

SETsafe | SETfuse

SET

TVS P4SMF(SMD)_SETsafe & SETfuse.pdf

TVS Diodes are used to protect sensitive circuit from high-voltage transients. Their p-n junctions have a larger cross-sectional area than those of a normal diode, allowing them to conduct large currents to ground without damage. SETsafe | SETfuse supplies TVS Diodes with peak power ratings from 200 W to 30 kW, and reverse standoff voltages from 5.0 V to 512 V.

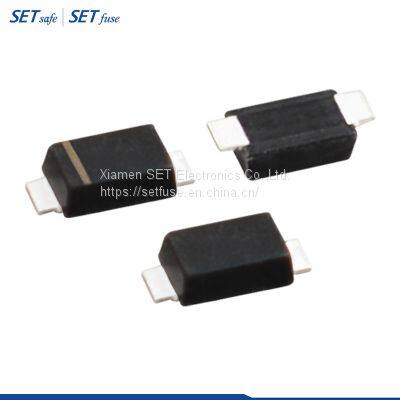

P4SMF series
