KJ212 Mechanized low-profile mining drill rig excavation tabular ore bodies platinum chrome mines

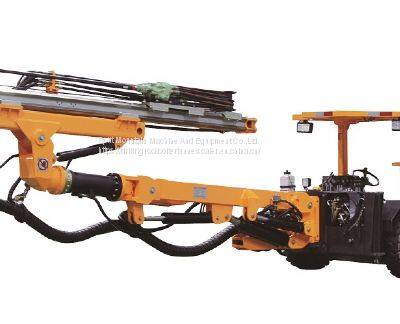

Split Mountain KJ212 is a single-boom, electro-hydraulic low-profile development drill rig,designed as an ideal choice for work in tabular ore bodies, such as platinum and chrome mines, offering improved safety and productivity, as well as minimized ore dilution.This low-profile mining drill rig has a robust universal boom with large, optimum-shaped coverage, 360-degree rotation and full automatic parallelism for fast and easy face drilling and cross cutting. This drill rig is engineered for excavations,development and production drilling with headroom as low as 1.7 meters (5.6 feet). Other types option, like low profile rock support drill rig,longhole low profile drill rig and low-profile cable bolter etc.

Quick Facts

? Drifter / rock drill: HC109 18.8 kW,

? Feed 360-degree rollover and ±135° Swing,ideal for cross cutting and bolting,

? Hole diameter: 45-88 mm with HC109 Rock Drill/Drifter,

? Coverage: 12-35 m2,

? Engine power: 53kw/2200rpm Deutz,

? Motor power:55 kw ABB.

Features

- Robust universal,Heavy duty boom with a large optimum shaped coverage,

- Full automatic parallelism for direct,fast,easy accurate positioning,face drilling,cross cutting and bolting,

- High performance with reliable hydraulic control system,ergonomically designed operator environment,good visibility and hand reach servicability on the panel,

- Powerful engine,low oil consumption,

- ROPS and FOPS approved canopy or cabin.

Technical Specifications

Below dimensions in mm,and against drilling steels/ rods length 3700mm.Optimum operating coverage about 30 m2.
