High Quality Ship Launching Rubber Airbag

FOB Price

US$ 220 - 8000 / Piece

1 Piece(Min. Order)

Port Qingdao
Payment TermsT/T L/C PayPal
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sunhelm		Place of Origin	China
Model Number	SH-EVO

Product Description

Defender Ship Launching Airbags Specification

D:Bag Diameter LOA:Effective Length L:Total Length 1. Mouth 2. Head 3. Body

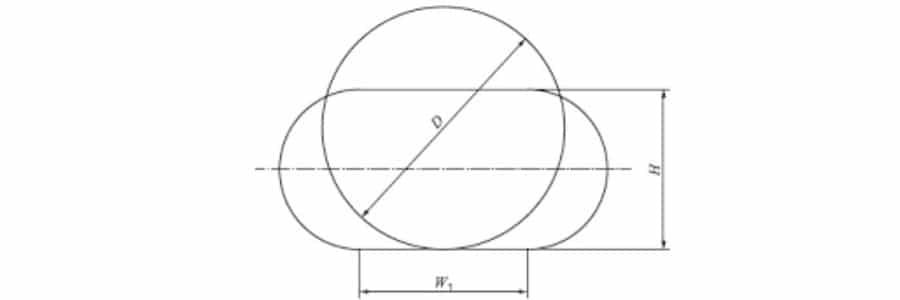

D:Free State Height H:Operating State Height W1:Operating State Breadth

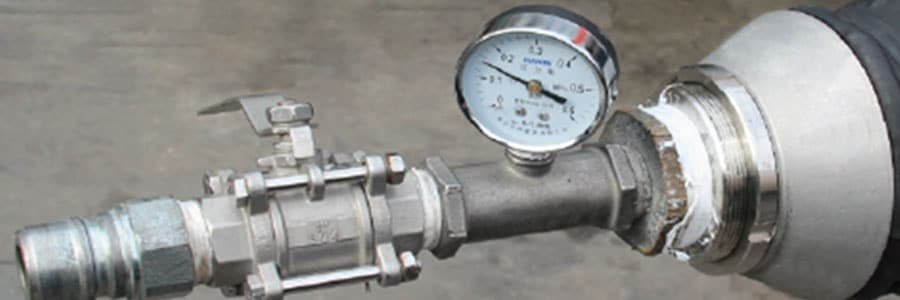

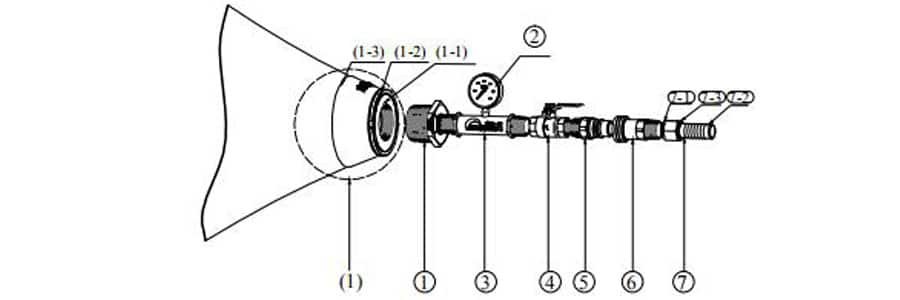

Airbag Inflate Ends

1.Reducing joint 2"x1"(sus304) 2.Pressure gage M14x1.5 3.Tee coupling (sus304) 4.Ball valve G1"(Extra Strength) 5.Quick connectors (male head), G1 6.Quick connector (female head), G1"

7.Hose Fitting 7-1 Rubber seal ring 7-2 Joint pipe 7-3 Nut

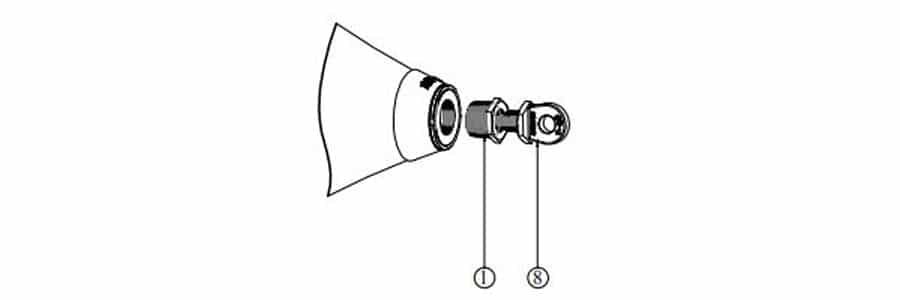

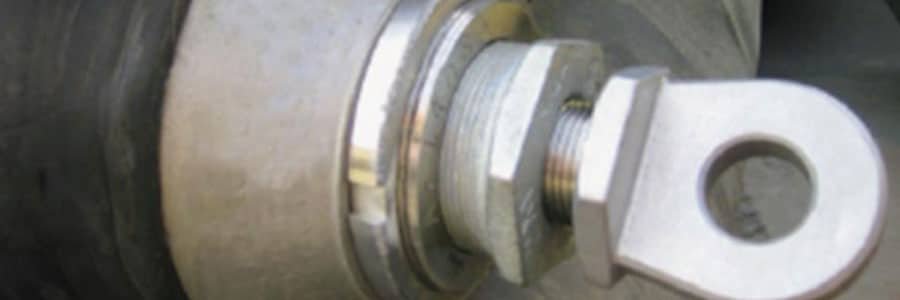

Airbag Drag Ends

1.Reducing joint 2"x1"(sus304) 8.Drag Ring SUS304

Why Choose SunHelm Ship Launching Airbag?

As a leading airbag manufacturer in Jinan, Shandong, where the airbag was invented, Sunhelm has been constantly exploring the manufacturing technology of airbags. We have always been adhering to the principle of quality first, never slack in the choice of raw materials, and are committed to guaranteeing us Good user experience for every customer.

Our Marine airbags enjoy a high reputation all over the world, not only in Asia but also in Africa, the Middle East, Oceania, South America and North America.

Sunhelm is very particular about the rubber material used in the airbag. We only use 100% natural rubber materials to ensure that each airbag is high-performance.Sunhelm Prior to the air bag production,the outer and inner rubber layers shall be tested to meet the criteria in below Table in accordance with the test methods given in the International Standards listed in below table.

No.	Test Item		Required value	Test Method
1	Tensile strength (MPa)		≧18	ISO37
2	Elongation at break (%)		≧400	ISO37
3	Hardness,o (Shore A)		60±10	ISO7619-1
4	Tear strength (N/cm)		≧400	ISO34-1
5	Compression set,% (70oC±1oC,22h)		≤30	ISO815-1
6	After thermal aging at 70oC±1oC,96h	Holding of pull lengthening,%	≧80	ISO188
7		Holding of elongation at break,%	≧80	ISO188
8		Change of hardness,o(Shore A)	≤8	ISO7619-1
9	Static ozone aging at 40oC×96h [ozone concentration (50±5)×10-8],extension 20%		No Crack	ISO1431-1
