Multi-parameter Patient Monitor for Infant NIC-YD800

Features

Core

● Newly advanced A9 main board with Linux OS

● Support storage of 2160 hours trend table and graph review, 2 hours waveform review, 2000 groups NIBP review and 2000 alarm events review

Body

● 12.1 inches high-brightness TFT LED

● Support display 9~13 waveforms

● Support 7 channel ECG waveform display simultaneously

● Optional HDMI output

Printer

● Built-in high-speed 50mm thermal printer Central System

● Wired or wireless connection

Alarm

● Three-level acousto-optic alarm

● Sensor-off alarm

● Paper out alarm

● Support alarm review

● Support alarm pause

Linux OS

● Support operation with USB mouse and computer keyboard (option)

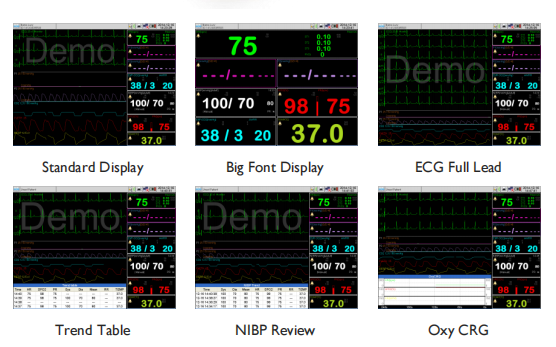

● Multi-display mode

● NIBP self-test mode

● Support medical history search by patient ID, name and mobile number

● 13 types of Arrhythmia analysis and real-time S-T segment analysis and pacemaker detection

● Drug calculation and titration table

● Multi-language display

● Online software upgrading by net/USB

Dimension and Weight

● Dimension: 310mm*290mm*150mm

● Weight: 3.4 kg (excluding accessories)

Power Supply

● Voltage: AC100～240V, 50/60HZ, Power≤60W

Display

● 12.1" color TFT LED resolution: 800*600 pixels

Battery

● Type: Rechargeable lithium battery 12V/2200mAh

● Charge Cycle: ≥500 times

● Working time: 2 hours

Recorder (Option)

● Method: Thermal printer

● Paper width: 50 mm (1.97 in)

● Printing speed: 12.5/ 25/ 50 mm/s

● Trace: Max. 3 tracks

● Recording way: Real-time Recording, Review Printing, Periodic Recording, Alarm Recording

Alarm

● Level: Low, medium and high

● Indication: Auditory and visual

● Alarm volume adjustable

● Alarm pause time: 1min, 2min

● Parameter alarm type: Latch/ Unlatch

Input Device

● Standard: Knob /Keypress

● Option: USB Mouse / USB Keyboard / Touch screen

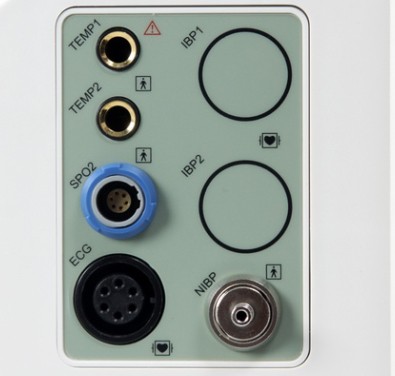

System Output & Extensible Interface

● Ethernet Network: standard RJ45 socket * 1pc

● USB Port: 1pc

● Video Output: HDMI port (option) * 1pc

Operating Environment

● Temperature:   5 ~ 40  ℃

● Humidity:    15% ~ 90% (non-condensing)

● Atmosphere pressure:   86 KPa ~ 110 KPa

Transportation and Storage

● Temperature:   -20～50  ℃

● Humidity:    10%～90%   (non-condensing)

● Atmosphere pressure:   86 KPa ~ 110 KPa

Safety

● IEC60601- 1 Approved, CE marking according to MDD93/42/EEC

● With reference to RoHS Directive 2011/65/EU recasting

Trend & Reviewing

● Trend: 2160 hours

● ARR events: 128 groups of ARR events and associated

waveform

● NIBP measurement reviewing: 2000 groups

● Waveform review: 2 hours

● Alarm event: 2000 groups of parameter alarms events and associated parameter

 SpO2

● Measurement Range: 0~100 %

● Resolution: 1%

● Accuracy:±2% (70% ~ 100%)

                      ±3 % (40% ~ 69%)

                     Unspecified (0 ~ 39%)

● Support Pitch tone and multi-level volume

● User-selectable waveform speed:6.25, 12.5, 25, 50 mm/s

● PI range (Option)：0.075%-20%

Pulse Rate

● Measuring and Alarm Range: 20~250bpm

● Accuracy: ±1% or ±1 bpm, whichever is greater

● Resolution: 1bpm

 Respiration

● Method: Impedance between RA-LL, RA-LA

● Gain: ×0.25, ×0.50, ×1, ×2, ×4

● Respiration Rate: 0bpm, 6 ~ 150 BrPM

● Sweep speed:6.25 mm/s, 12.5 mm/s, 25mm/s

● Resolution: 1 BrPM

● Accuracy:±2BrPM or ±2%      whichever is greater (7~ 150BrPM)

                     Unspecified (0%~ 6BrPM）

● Apnea Alarm: 10 ~ 40 s

Temperature

● Technique: Thermistor probe (2.25K)

● Channel: Dual-channel, provide T1; T2; ΔT

● Measuring and Alarm Range: 0.0  ℃~ 50  ℃ (32℉~ 122℉)

● Unit: Celsius (℃), Fahrenheit (  ℉)

● Resolution: 0.1℃or 1℉

● Accuracy: ±0.1℃(exclusive probe)

ECG

● Lead mode: 3/5 Leads, I, II, III or I, II, III, AVR, AVL, AVF, V

● Protection: Breakdown Voltage 4000VAC 50/60Hz; Defibrillator proof

● Gain: 2.5mm/mV(×0.25), 5.0mm/mV(×0.5), 10mm/mV (×1), 20mm/mV (×2), 40 mm/ mV (×4), Auto

● Sweep speed: 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s

● ECG signal range:   ±5 mV p-p

● Accuracy: ±1bpm/ ±1%, whichever is greater

● Resolution: 1 bpm

● Leakage Current <10 μA

● Baseline Recovery:≤ 3s after defibrillation (Monitor mode)

                                      ≤ 1s after defibrillation (Surgery mode)

● Bandwidth:Surgery 1 ~ 20 Hz

                      Monitor 0.5 ~ 40 Hz

                      Diagnostic 0.05 ~ 130 Hz

● Indication of Electrode Separation: Every electrode (exclusive of RL)
