Hot Sale! 5 to 15 Floors Multi-level Parking System/Automated Parking System/Parking Machine
- Qingdao, China
- T/T L/C D/P D/A PayPal
- 30 days
You May Like
-
Hot Sale! 5 to 15 Floors Multi-level Automated Parking System/Parking Machine/Garage Storage
-
Hot Sale! 5 to 15 Floors Multi-level Automated Parking Machine/Garage Storage/Hydraulic Car Parking System
-
Hot Sale! 5 to 15 Floors Multi-level /Garage Storage/Hydraulic Car Parking System/Automated Car Parking System
-
Hot Sale! 5 to 15 Floors Multi-level Automated Car Parking System/Car Park System
-
Hot Sale! 5 to 15 Floors Multi-level Automated Car Parking System/Car Park System/Car Parking Tower
-
Hot Sale! 5 to 15 Floors Automated Car Park System/Car Parking Tower/Vertical Parking System
Product Details
| Brand Name | STMY | Place of Origin | China | |
| Model Number | PPY (5 to 15 levels) | Type | Parking Lift | |
| Warranty | 12 |
Product Description
Product Specifications
| Brand Name | STMY |
| Product Name | Fully Automatic Vertical Lifting Parking System |
| Model No. | PPY (5-15 Floors) |
| Mode of Operation | LCD /IC card/ Touch Screen |
| Mode of drive | Hydaulic & Wire Rope |
| Car Capacity | ≤2350kg |
| Car Size (L×W×H) | ≤5300x1900x1550(mm) ≤5300x1900x2050(mm) |
| Lifting Motor Power/ Speed | 22-30KW / 70-120m/min |
| Sliding Motor Power/ Speed | 0.2 KW/ 9.5m/min |
| Rotation Motor Pwer/Speed | 2.2 KW / 3.0 rpm |
| Safeguard devices | Whole protection |
| Malfunction indication | Fault diagnosis code, liquid crystal display |
| Car platforms | Comb pallet with dust boards |
| Other Parts Treatment | Spray Zinc firstly and then Spray-paint second time (Twice) |
| Colors | Grey, Apple Green, Peacock blue (optional) |
| Power Supply | 380V/50Hz ; 3Phase 5wire (Customized for different country demand) |
| Workig noise | ＜65dB |
| HS Code | 84289020 |
| Warranty Term | 12 months for electrical key parts, 5 years for structure |
| Certification | ISO9001 and CE |
Introduction:
This vertical lifting automatic parking system adopts comb pallets with mixed characteristics of traditional puzzle parking and tower parking system with hydraulic fast speed drive mode. Each equipment can be designed as 5 to 15 levels and 3, 4, 5 or 6-rows. Each PLC unit has 1, 2 or maxium 3 lifting channels, so that the running speed is far faster than the traditional puzzle parking system. Each car pallet can exchange the space with lift comb, when the car pallet reaches at ground level, it can be easily driven in or out easily.
(Note: the car turntable at ground is an optional).
Characteristics
It is safer and more reliable using hydraulic pump station drive;
Advanced PLC micro-controller programmed and has Liquid crystal display;
Very simple operated with a smart card or manual buttons;
Saving energy and environmental protection；
Fashionable and elegant appearance will can be easily in harmony with surrounding environment;
Adapted Places:
Public parking place, hotels, shopping mall, hospitals, commercial center, Residential parking lot, apartment, etc...

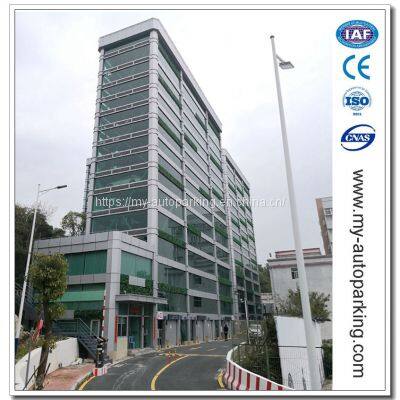

Case Photos:
Sample Drawings:
Important Tips:
1) Can do 5 to 15 floors.
2) Can do all steel structure (we provide), or mixed steel & concrete structure. (we provide steel structure part, the concrete structure part will be built by customer themselves at local.)
3) Can do structure all above ground, half above & half underground, or all underground. (depends on customer request).
4) We can do some floors for SUVs or 100% SUVs spaces (according to customer's request).
FAQ
1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.
3. How about the loading information and HS Code?
---12 months for electrical parts, 5 years for mechanical structure.
---ISO9001 & CE.
Note: For a full complete set of drawings, send email to: victoria.zhang@qdmy-parking.com
