Hot Sale! 5 to 15 Floors Auto Parking System China/Parking System Manufacturers/Parking System plus

FOB Price

3000 - 5000 / Set

1 Set(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Qingdao, China
Payment TermsT/T L/C D/P D/A PayPal
Delivery Detail30 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	STMY	Place of Origin	China
Model Number	PPY (5 to 15 levels)	Type	Parking Lift
Warranty	12

Product Description

Product Specifications

Brand Name	STMY
Product Name	Fully Automatic Vertical Lifting Parking System
Model No.	PPY (5-15 Floors)
Mode of Operation	LCD /IC card/ Touch Screen
Mode of drive	Hydaulic & Wire Rope
Car Capacity	≤2350kg
Car Size (L×W×H)	≤5300x1900x1550(mm) ≤5300x1900x2050(mm)
Lifting Motor Power/ Speed	22-30KW / 70-120m/min
Sliding Motor Power/ Speed	0.2 KW/ 9.5m/min
Rotation Motor Pwer/Speed	2.2 KW / 3.0 rpm
Safeguard devices	Whole protection
Malfunction indication	Fault diagnosis code, liquid crystal display
Car platforms	Comb pallet with dust boards
Other Parts Treatment	Spray Zinc firstly and then Spray-paint second time (Twice)
Colors	Grey, Apple Green, Peacock blue (optional)
Power Supply	380V/50Hz ; 3Phase 5wire (Customized for different country demand)
Workig noise	＜65dB
HS Code	84289020
Warranty Term	12 months for electrical key parts, 5 years for structure
Certification	ISO9001 and CE

Introduction:

This vertical lifting automatic parking system adopts comb pallets with mixed characteristics of traditional puzzle parking and tower parking system with hydraulic fast speed drive mode. Each equipment can be designed as 5 to 15 levels and 3, 4, 5 or 6-rows. Each PLC unit has 1, 2 or maxium 3 lifting channels, so that the running speed is far faster than the traditional puzzle parking system. Each car pallet can exchange the space with lift comb, when the car pallet reaches at ground level, it can be easily driven in or out easily.

(Note: the car turntable at ground is an optional).

Characteristics

It is safer and more reliable using hydraulic pump station drive;

Advanced PLC micro-controller programmed and has Liquid crystal display;

Very simple operated with a smart card or manual buttons;

Saving energy and environmental protection；

Fashionable and elegant appearance will can be easily in harmony with surrounding environment;

Adapted Places:

Public parking place, hotels, shopping mall, hospitals, commercial center, Residential parking lot, apartment, etc...

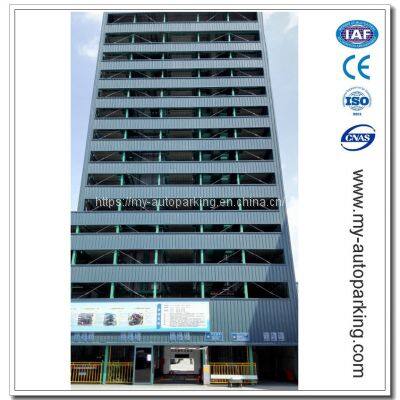

Case Photos:

Sample Drawings:

Important Tips:

1) Can do 5 to 15 floors.

2) Can do all steel structure (we provide), or mixed steel & concrete structure. (we provide steel structure part, the concrete structure part will be built by customer themselves at local.)

3) Can do structure all above ground, half above & half underground, or all underground. (depends on customer request).

4) We can do some floors for SUVs or 100% SUVs spaces (according to customer's request).

FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.
3. How about the loading information and HS Code?

---For this model, 15 car spaces can be loaded into 1x40'open top container;

---The HS code is 84289020

4. How about the lead time?

---30 to 60 days (according to order quantity);

5. Can you provide OEM service?

--Yes, we can provide OEM service according to the requirement of the client;

6. Can you make design for our land?

--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;

7. Do you provide trainning services:

--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;

8. How about the installation?

--We will send 1-2 engineers to your country to guide the installation, commissioning, training your staff.

9. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.

10. What are the certificates?

---ISO9001 & CE.

Note: For a full complete set of drawings, send email to: victoria.zhang@qdmy-parking.com
