Manufacturer Price fast OCPP1.6 ev charger car Ac charging pile
USD $199 - $399
/ Piece
50 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- SHENZHEN
- T/T
- 30 days
You May Like
-
Cheapest EV car charger station wallbox charger Indoor/Outdoor Portable Electric Charger
-
Hot Sale Portable Electric EV Car Chargers 1 phase level AC EV Charging Pile
-
Stable Quality EV charger 7KW ?32A Single Phase ce certified electric car charger station
-
2022 Fashionable High Quality 7KW EV Wall Charger 32A AC EV Charging Station
-
Proper Price Top Quality Ev Portable Charger Charging Station
-
32A 7.2kw wifi smart home ev charger car charging station point with type 2 socket
Product Details
| Brand Name | Electrical hunt | Place of Origin | China | |
| Model Number | AC0140-15 | Type | Electric | |
| Use | Other, ELECTRIC VEHICLE |
Product Description

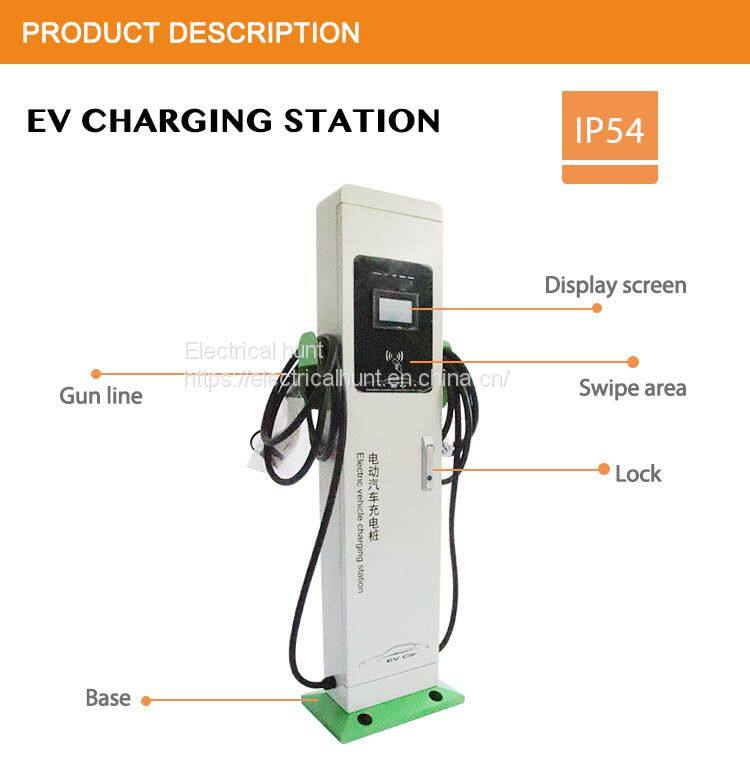

The Kelly pedestal EV charger is designed to have 2 outputs, it is available for 2*7KW and 2*22KW, it is able to charge two electric vehicles simultaneously. The floor-stand is designed with dual charging tethered, which is convenient to use.
The charger can be connected to a charging network. Multiple public chargers in one location can be integrated in the network with only one internet communication connection. Thanks to open charge protocol OCPP 1.6, the charger operation and status is monitored and controlled by existing backend or central management system.

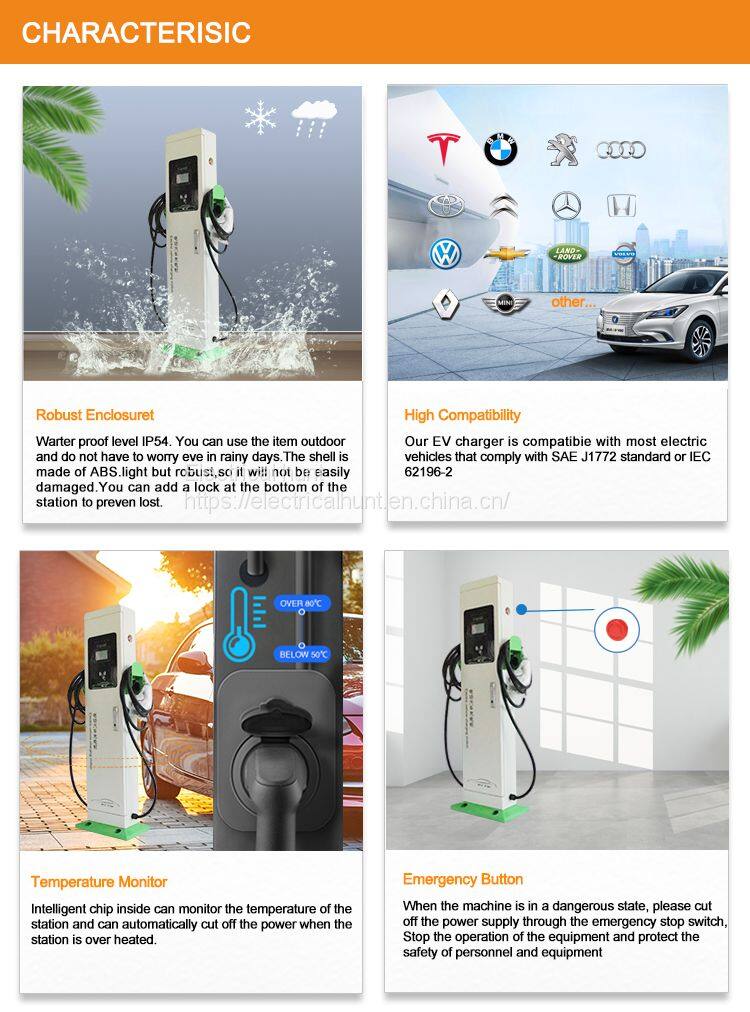

Innovativeness
One charger with two output tethered, for business use with intelligent APP control Vandal resistant and anti-corrosion .
Intelligent Control
Supported OCPP communication protocol
Flexible Option
RFID authentication or plug and play Customization with different color painting
Secure and Safe
RCD Type B residual current protection
| Specification | Model | AC0140-15 | AC0440-15 |
| AC Nominal Input | Phases/Lines | 1 phase + netural+ PE | 3 phase + netural+ PE |
| Voltage | 230V±10% | 400V±10％ | |
| Frequency | 50Hz | 50Hz | |
| AC Nominal Output | Voltage | 230V±10% | 400V±10％ |
| Current | 2*32A | 2*32A | |
| Power | 2*7KW | 2*22KW | |
| Structure Design | Housing Material | Galvanized steel | |
| Front Panel | Temper glass | ||
| Installation Method | Floor-stand | ||
| Charging Outlet | Two charging sockets(Type 2) | ||
| Cable Length | 5M | ||
| LED Indicator | Green/Yellow/Red color for different status | ||
| LCD Screen | Display of charging data | ||
| Emergency Stop Button | Yes | ||
| RFID Function | Yes | ||
| RFID Card | 4pcs Mifare card | ||
| Energy Meter | Ordinary electric meter | ||
| RCD | Type B 4P 63A | ||
| Communication | Network Gateway option | Ethernet/WIFI/4G communication | |
| Communication Protocol | OCPP1.6(JSON) | ||
| Environmental Index | Operating Temperature | - 30~ + 50℃ | |
| Working Humidity | 5%~95% without condensation | ||
| Working Altitude | ＜2000M | ||
| Protection Grade | IP54 | ||
| Application Site | Indoor/Outdoor | ||
| Cooling Method | Natural cooling | ||
| Security Protection | Multiple Protection | Over/Under voltage protection,Overload protection,Short circuit protection,Current leakage protection,Grounding protection,Surge protection,Over/Under temperature protection | |
| MTBF | 100,000 hours | ||
| Safety Standard | IEC 62196, SAE J1772 | ||
| Warranty | 2 years | ||
| Package Information | Product Dimension | 150*300*1400MM | |
| Package Dimension | 180*330*1430MM | ||
| Net Weight | 32.5KG | ||
| Gross Weight | 43.5KG | ||
| External Packing | Carton | ||
