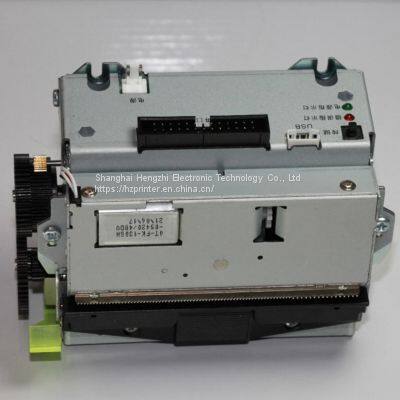

80mm paper width embedded thermal printer With cutter，Support secondary development

*Compatible with Epson m-t532 and ba-t500 movement and main control board

*Simple paper feeding structure, 180 degree paper feeding

*Equipped with automatic cutter

*High speed printing

*Paper out status alarm

*Provide windows, Android, demo and SDK

Self service vending machines, self-service cash registers, queuing machines, advertising machines, game machines, industrial control testing instruments, medical equipment, etc

Printing Method           Thermal Line

Printing Resolution      8dots/mm(203dpi)

Printing Speed             220mm/s

Paper Width            79.5±0.5mm

Paper Roll Diameter       120mm(MAX)

Print Font              Codepage, ASCII 9×24, 12×24

Barcode                                  1D: UPC-A，UPC-E，EAN-13，EAN-8，CODE39，ITF25，CODEBAR，CODE93， CODE128    2D: QR CODE, PDF417, DATAMATRIX

Power Supply            DC24V±10％, 2A

Interface               Parallel+USB

Paper Thickness            0.06~0.08mm

Paper Supply Method     Manual loading

Cutting Method          Full / Partial cut

Auto cutter Type        Guillotine

Auto cutter Life        1,000,000 cuts

Operating Temp/Humidity  5～50℃/10～80%

Storage Temp/Humidity   -20～60℃/10～90%

TPH                     100KM
