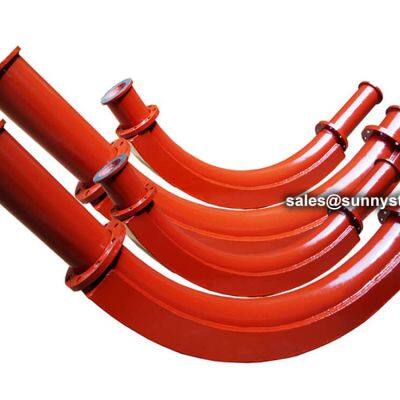

Wearback Ceramic Sleeve Lined Elbow

Ceramic sleeve lined bends with wear back arrangement offers better life as compared to normal ceramic sleeve lined bends in pneumatic conveying system for fly ash, cement, coal where abrasion is more. SunnySteel’s Wearback wear-resistant ceramic tile lined elbow and avoids product attrition. It reduces considerabley degradation of conveyed material and avoids formation of angel hair through its patented deflection chamber. The wear back ceramic sleeve lined elbow is also called the reinforced ceramic sleeve lined elbow. The wear back ceramic sleeve lined elbow is based on the wear-resistant ceramic elbow, and a layer of anti-wear backpack is added. The special ceramic is pasted on the inner wall of the pipe with a high temperature resistant inorganic adhesive, and after heating and curing, it forms a strong anti-wear. Therefore, the wear-resistant ceramic backpack elbow realizes double-layer wear resistance, which is suitable for working conditions with serious wear.

The high alumina ceramics are installed onto the internal surface of the pipe properly by welding, pasting or inter-locking system. With the brilliant properties of resistance to wear, corrosion and heat, the pipe is widely used in materials handing of coal industry, electric power, metallurgy, mining and chemical industry and it is one ideal wear resistant pipe.

Benefits

• The coal will bring great impact to the equipment during transportation in the coal handing system of power station, so the alumina ceramic tiles s not available and they will fall of by large area.

• The valve in the desulfurization system can change the follow during the switching process, sot he slurry with grain at high speed will wear out the pipe at the ends of valves. The liquid in the tube contains much sulfite which is very corrosive, so usually nonmetallic pipes like rubber tubes and PVC pipes are used to avoid corrosion, but the wear resistance of these tubes are poor that the straight pipe at the ends of valves always worn out. The alumina ceramic lined tube/elbow is one piece, the slurry couldn’t permeate through it, moreover, the alumina tube/elbow has high hardness and the process by isostatic pressing dry power is favorable to the uniformity of ceramic crystal structure, so its wear resistance is better than ceramic tiles with the same materials.

• The weakest place is the gap between each sticked tiles during material handing. The material grains not only wear the pipe but also have impact on it. This is why the pipelines lined by tiles are easily worn out and fallen off.

• The experiment shows that the service life of ceramic tube/elbow is at least 5 times longer than ceramic tiles of the same thickness.
