Donut filling machine Cream filling machine Multifunction Cake filling machine Puffs Jam filling machine

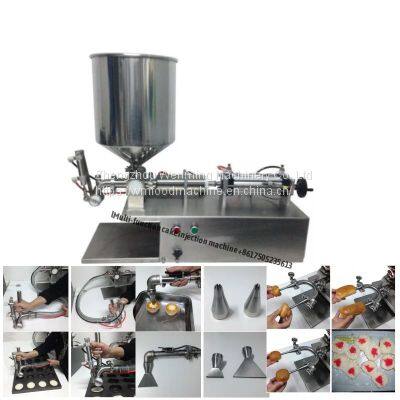

SD-1000  Multi-function cake injection machine

Cake Cream injection machine introduction:

The SD-1000 type injection machine can be used for the production of various cakes, snacks, and pastry products. Its structure is simple and reasonable, easy to operate, easy to adjust, easy to disassemble and clean. The equipment has an injection volume adjustment handle, the injection speed can be adjusted arbitrarily, the injection accuracy is high, and the maximum injection volume can reach 1000 ml. It can freely switch between the two injection methods of foot pedal injection and automatic continuous injection. The three control methods include: foot pedal (hand-held) control, photoelectric sensor control, and external signal control to make the equipment more complete. The equipment is suitable for various occasions and product needs with different discharge heads; with filling needles, it can be used for bread filling and cake filling; the hand-held filling method is more convenient for customers to move freely; and can be customized according to customer needs For processing multiple injections, conveyor belts can also be added to realize fully automated production. All quick-release connectors are used, making it easier to disassemble and wash. The main power of this equipment is pneumatic (air compressor is required), the pneumatic parts are all made of Taiwan AirTac pneumatic components; the whole equipment is made of stainless steel, and the material contact parts are all made of stainless steel 304

The materials and PTFE (polytetrafluoroethylene, commonly known as "Plastic King"), meet the national food safety requirements. This type of equipment is especially suitable for small and medium-sized food enterprises, cake shops,

Bakeries, small workshops and individual producers who have just started a business.

Main purpose：

ONE:   Hand-held  movable  injection  material:

Use a handheld syringe to move and inject more freely; it is not restricted by the shape of the mold and the site, and is suitable for injection molding in various special situations (such as: irregular bakeware molds, mold-free paper cups, and various customized special molds).

1.Anti-drip and trailing hand-held dispenser: Mainly used for cake paste, the discharge port is equipped with a leak-proof valve, which can well prevent the cake paste from dripping or tailing during paste injection.

 2. Hand-held cream decorating gun: Mainly used for decorating cream decorating and coating. The cream flower mouth can be equipped according to customer requirements, and the coating mouth can be customized according to customer requirements.

 3. Special hand-held injector: (required to order: provide product samples or outlet shapes) By changing the discharge nozzle, the raw materials can be extruded in different shapes (such as flat long nozzle, corrugated nozzle, triangular nozzle, etc.). Design the shape of the discharge nozzle according to customer requirements.

TWO:   Single head fixed injection:

The hand-held injector is directly connected to the main machine of the SD-1000 injection machine to become a fixed single-head injection machine, which can be used for cake paste injection and other purposes by manually moving the bakeware or mold.

 Three：   Liquid and paste filling

The liquid filling head can be used for filling various liquids or pastes without dripping and tailing

FOUR： Single row multi-head material: (to be customized)

The single-row multi-head injection head can be customized according to the customer's own or existing molds, which is a good way to improve efficiency.

Five： multi-row multi-head special-shaped injection head: (need to be Customized)

The multi-row multi-head special-shaped injection heads of various sizes and specifications can be customized according to the customer’s own or existing molds, which is the best way to improve efficiency and save costs; especially for those irregular molds with special specifications and special shapes. More prominent role.

SIX: Filling of bread and cakes:

After the SD-1000 injection machine is equipped with a filling needle, it can inject a variety of delicious fillings into breads and cakes to make all kinds of filled breads and cakes; help customers increase product categories and enrich product diversity To meet the different taste requirements of various customers.

Seven,: Coating, applicator (coating  plane): (need to be customized: provide the length and width of the outlet)

The discharge head of the coater can evenly squeeze the flat material, which is suitable for all kinds of products that require sandwich coating or surface coating.

Cake Cream injection machine PARTS PRICE:（Technical parameters）：

Floor stand:

The main parameters:

Floor stand size: 1000 ㎜ length * 1000 ㎜ width * 800 ㎜ height (without host).

Lifting height: 600 ㎜

Lifting method: (choose one of the two)

1. Manual mode: height can be adjusted at will.

2. Pneumatic method: fixed lifting height (not adjustable).
