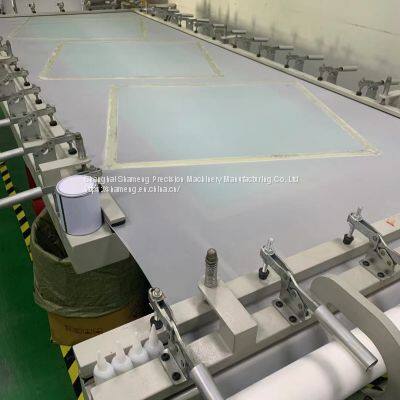

Mechanical Stretching Machine
- 100 Set / Sets per Month
- shanghai
- 45 days
You May Like
Product Details
| Place of Origin | China | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New | Automatic Grade | Semi-Automatic | |
| Color & Page | Other |
Product Description
(Specification of Equipment)
SM-1824M | SMT-1030M | ||
Working Table Size | 3000×4100mm | 1,000×3,000mm | |
Max. Tension Frame Size | 1,000×1,000mm - 2EA | 600×600mm - 2EA | |
Motor | X | 1/2HP × 1/30 | |
Y | 1/2HP × 1/30 | ||
Up/Down | 1/2HP × 1/30 | ||
Tension Length | X | 0 ~ 1,000mm | |
Y | 0 ~ 500mm | ||
Up/Down | 0 ~ 120mm | ||
Electric Source | 380(220v) | ||
※ It is possible to change the specification of equipments by customer’s requirement.
(Characteristics of Equipment)
ü It offers high and uniform tension.
ü It can adjust tension of length and width separately.
ü As bar which fixes mesh and clamp is one body, operation is simple and fast.
ü Various mesh like Polyester, Nylon, Stainless can be stretched.
ü It is simultaneously possible to operate small and large frame.
Features
●Automatically release unbalance load for vertical and horizontal direction, enables low stress rectangular tenisioning. Simple switch control for frame size changing.
●Simple frame sticking with frame lifting mechanism.
●Light table can be set under screen for Moire checking
●Independent vertical and horizontal motor for strong tensioning against stainless steel screen and polyester screen
●Remote control operation panel convenience for large frame tensioning.
●Other order made size can be manufacture.
