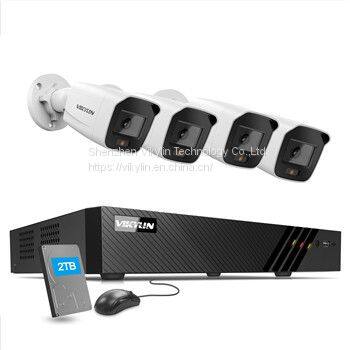

VK608Q047-4 4mp Fixed Ip Camera Fixed Dome Network Camera Ip Cameras 8 Channel Nvr

Image Sensor

1/2.7" Progressive Scan CMOS

Min. Illumination

Color: 0.001 Lux @ (F1.0, AGC ON)

Shutter Speed

1/3 s to 1/100,000 s

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Slow Shutter

Yes

P/N

P/N

Wide Dynamic Range

120 dB

Lens

Lens Type & FOV

2.8 mm, horizontal FOV 102°, vertical FOV 54°, diagonal FOV 121°

Aperture

F1.0

Lens Mount

M12

Aperture Type

Fixed

Depth of Focus

2.8 mm: 3.1 m to ∞

Illuminator

Smart Supplement Light

Yes

Supplement Light

White

White Light Range

Up to 30 m

Video

Main Stream

50Hz: 20 fps (2560 × 1440)

25 fps (2304 × 1296，1920 × 1080, 1280 × 720)

60Hz: 20 fps (2560 × 1440)

30 fps (2304 × 1296，1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

* Note: The frame rate of the sub-stream cannot exceed the maximum frame rate of the current main stream.

Video Compression

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

BaseLine Profile/Main Profile/High Profile

H.265 Type

Main Profile

Region of Interest (ROI)

1 fixed region for main stream

Network

Simultaneous Live View

Up to 6 channels

API

ONVIF (PROFILE S), ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP,

QoS, IPv6, UDP, Bonjour, SSL/TLS

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter,

security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF

Client

VKLOOK,VKTOOL

Web Browser

Plug-in required live view: IE 10, IE 11

Local service: Chrome 57.0+, Firefox 52.0+


Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance

adjustable by client software or web browser

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Intelligent (Traditional Algorithm)

Basic Event

Motion detection, exception (illegal login)

General

Linkage Method

Upload to FTP/NAS, notify surveillance center, send email, trigger recording, triggercapture

Web Client Language

English

General Function

Anti-flicker, heartbeat, mirror, privacy masks, password reset via e-mail

Software Reset

Reset via web browser and client software

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection

Power Consumption and

12 VDC, 0.37 A, max. 4.5 W

Current

PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5W

Power Interface

?5.5 mm coaxial power plug

Material

Metal

Camera Dimension

62 × 57.7 × 148.3 mm

Package Dimension

172 × 104 × 80 mm

Camera Weight

Approx. 430 g (0.9 lb.)

With Package Weight

Approx. 520 g (1.1 lb.)

Video/Audio input

IP video input

8-ch

Up to 8 MP resolution

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Network

Incoming bandwidth

80 Mbps

Outgoing bandwidth

80 Mbps

Video/Audio output

Recording resolution

8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

HDMI output resolution

1-ch, 4K (3840 × 2160)/30Hz,

1920 × 1080p/60Hz, 1600 ×

1200/60Hz, 1280 ×

1024/60Hz, 1280 × 720/60Hz,

1024 × 768/60Hz;

HDMI/VGA simultaneous output

VGA output resolution

1-ch, 1920 × 1080p/60Hz,

1600 × 1200/60Hz, 1280 ×

1024/60Hz, 1280 × 720/60Hz,

1024 × 768/60Hz ;

HDMI/VGA simultaneous output

Audio output

1-ch, RCA (Linear, 1 KΩ)

Decoding

Decoding format

H.265/H.265+/H.264/H.264+/MPEG4

Live view / Playback resolution

8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Synchronous playback

8-ch

Capability

1-ch @ 8 MP / 4-ch @ 1080p

Network management

Network protocols

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS

Hard disk

SATA

1 SATA interface

Capacity

Up to 6TB capacity for each disk

External interface

Network interface

1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

USB interface

2 × USB 2.0

POE Interface

Interface

8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

≤ 75W

Standard

IEEE 802.3 af/at

General

Power supply

48 VDC

Power

≤ 90 W

Consumption(without hard disk)

≤ 10 W (without enabling PoE)

Working temperature

-10 to +55o C (+14 to +131o F)

Working humidity

10 to 90 %

Chassis

1U chassis

Dimensions(W × D × H)

315 × 240 × 48 mm (12.4" × 9.4" × 1.9")

Weight(without hard disk)

≤ 1 kg (2.2 lb)
