Home > Products > casing extractor > 24inch Casing Extractor With Electricity Motor Power Pack Used for Piling,water Well Drilling,mining Exploration
24inch Casing Extractor With Electricity Motor Power Pack Used for Piling,water Well Drilling,mining Exploration
- tianjin
- T/T
You May Like
-
24inch Casing Extractor With Diesel Engine Power Pack Used for Piling,water Well Drilling,mining Exploration
-
610mm Casing Extractor With Hydraulic Power Pack for Piling,water Well Drilling,mining Exploration
-
610mm Casing Puller With Hydraulic Power Pack for Piling,water Well Drilling,mining Exploration
-
600mm Diaphragm Wall Round Stop End Pipe Extractor Used for Diaphragm Wall Pile Foundation
-
800mm Diaphragm Wall Round Stop End Pipe Extractor Used for Diaphragm Wall Pile Foundation
-
600mm Diaphragm Wall Joint Tube Extractor Used for Diaphragm Wall Pile Foundation
Product Details
| Brand Name | huachang xingye | Place of Origin | China | |
| Model Number | hc2022030301 |
Product Description
24inch casing extractor with electricity motor power pack used for piling,water well drilling,mining exploration
24inch casing pipe extractor with power pack used for piling,water well drilling,mining exploration
24inch drill pipe extractor with power pack used for piling,water well drilling,mining exploration
24inch tube extractor with power pack used for piling,water well drilling,mining exploration
24inch diaphragm wall joint tube extractor with power pack used for piling,water well drilling,mining exploration
20inch casing extractor with power pack used for piling,water well drilling,mining exploration
16inch casing extractor with power pack used for piling,water well drilling,mining exploration
610mm casing extractor with hydraulic power pack for piling,water well drilling,mining exploration
610mm casing puller with hydraulic power pack for piling,water well drilling,mining exploration
610mm pipe extractor with hydraulic power pack for piling,water well drilling,mining exploration
406mm casing extractor with hydraulic power pack for piling,water well drilling,mining exploration

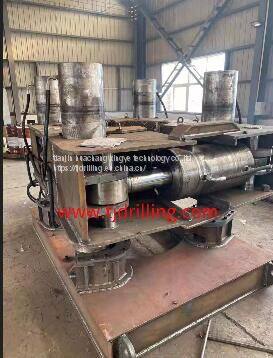

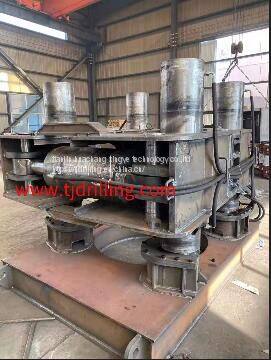

Our 24inch casing extractor made for drawing our water well drill pipe ,casing pipe , casing tube ,diameter from 8inch-24inch ,355mm-610mm lift force from 40ton-400ton
They are hydraulic clamping machines to pull out casing pile pipe or similar pipe. Pull out casing pile pipe or similar pipe. They may be coupled to the base pile machine by means of telescopic boom or they can work alone with its own hydraulic power pack
specification | unit | B600 |
extract cylinder | pc | 4 |
Cylinder max stroke | mm | 800 |
Suitable max casing diameter | mm | 610 |
Max extract force | T | 200 |
Clamp force | T | 90 |
weight | Kg | 3500 |
oversize（L*W*H） | m | 2.6x1.35x1.6 |

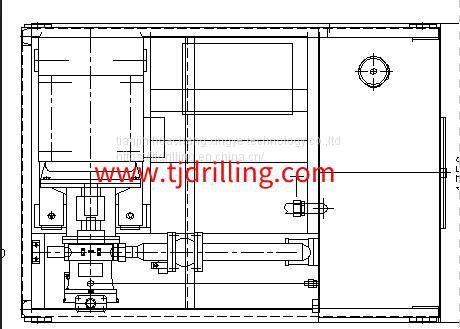

2 SPECIFICATION OF ELECTRICITY MOTOR
NAME | parameter | remark |
Max pressure MPa | 30 | |
Working pressure MPa | 25 | |
Hydraulic pump flow L/min | 90 | |
Power KW | 30 | |
Oil tank size L | 450 | |
Transport size mm | 1.70×1.4×1.4 | L×W×H |
Weight （not include oil）kg | 1000 |
Tianjin huachang xingye techmology co ltd email info@tjdrilling.com whatsapp 008618902059907
