Φ1500mm Hydraulic Casing Extractor With Diesel Engine Power Pack Used for Secant Pile Foundation Work

Φ1500mm hydraulic casing extractor with diesel engine power pack used for secant pile foundation work
Φ1500mm hydraulic casing extractor with 1200mm reduction insert used for secant pile foundation work
Φ1500mm hydraulic casing puller with 1200mm reduction insert used for secant pile foundation work
Φ1500mm hydraulic tube extractor with 1200mm reduction insert used for secant pile foundation work
Φ1500mm hydraulic casing extractor with diesel engine power pack used for secant pile foundation work
Φ1500mm hydraulic casing extractor with electricity motor power pack used for secant pile foundation work
Φ1200mm hydraulic casing extractor with 1000mm reduction insert used for secant pile foundation work
Φ1000mm hydraulic casing extractor with 880mm reduction insert used for secant pile foundation work
Φ610mm hydraulic casing extractor with diesel engine power pack used for secant pile foundation work
Φ24inch hydraulic casing extractor with electricity motor power pack used for secant pile foundation work
Φ16inch hydraulic casing extractor with 1200mm reduction insert used for secant pile foundation work
Φ1500mm hydraulic double wall casing extractor with 1200mm reduction insert used for secant pile foundation work
1500mm double wall casing extractor , 1200mm double wall casing extractor 1000mm double casing extractor 880mm double wall casing extractor
1500mm single wall casing extractor , 1200mm single wall casing extractor 1000mm single casing extractor 880mm single wall casing extractor

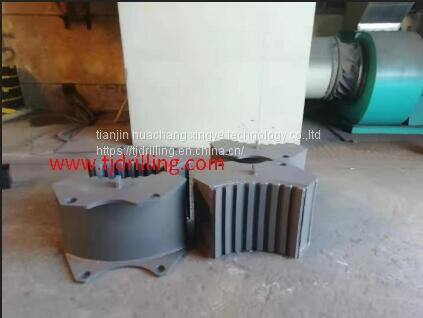

We can produce 400-3000mm casing extractor , can add different size reduction insert suit to different casing pipe , our hydraulic casing extractor can use different hydraulic power pack

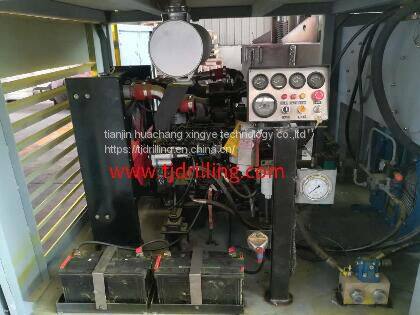

Diesel engine power and electricity motor power pack.

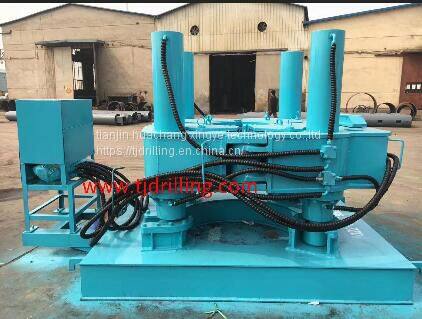

They are hydraulic clamping machines to pull out casing pile pipe or similar pipe. Pull out casing pile pipe or similar pipe. They may be coupled to the base pile machine by means of telescopic boom or they can work alone with its own hydraulic power pack
1 specification of hydraulic casing extractor
NAME
unit

REMARK
Cylinder lift number
PC
4

Cylinder stroke length
mm
1000

Cylinder clamp number
pc
1

MAX CLAMP FORCE
t
200
BELOW 30MPa
MAX CASING SIZE
mm
1500

MAX LIFT FORCE
t
500
30MPa
WEIGHT
kg
8000

SizeL*W*H)
m
3.7x2.2x2.1
Transport size

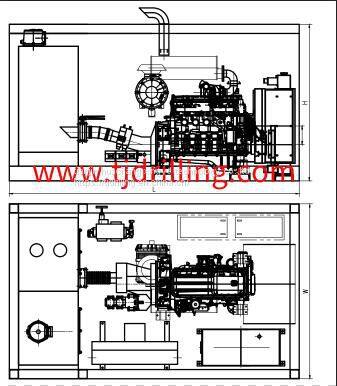

2 specification of hydraulic power pack
NAME
parameter
remark
Max pressure MPa
30

Working pressure MPa
25

Hydraulic pump flow L/min
90

Power KW
30

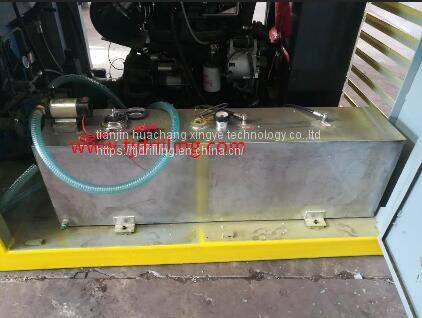

Oil tank size L
450

Transport size mm
1.70×1.4×1.4
L×W×H
Weight （not include oil）kg
2000
