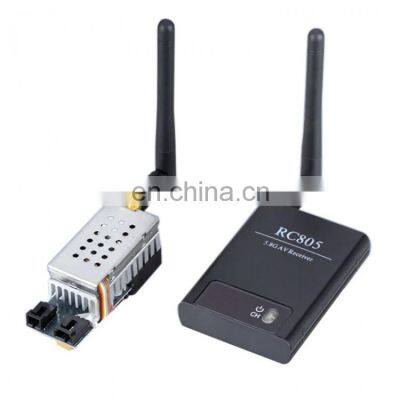

5.8Ghz 2000mW Wireless Audio Video AV long range TS582000 FPV vtx Transmitter and RC805 Receiver kit for Multicopter

Specification for TS582000:
- 5.8GHz 2000mW; compatible with PAL and NTSC
- Transmitter Frequency / Channel Amount:5705-5945MHz
- Output Power:2000mW/33dBm
- Transmission Distance: Min. 8KM line of sight; around 2KM in the open area
- Frequency Control:Built-in frequency & phase lock loop
- AV input:bAnalog AV signal input
- ANT connector:SMA (needle inside)
- Power Supply: DC 7.3-13 volts
- Current Supply:1500mA
- Net weight: 68.5g
- Size: 69*31*26mm

Specification for RC805 receiver:
- Receiving frequecny:5705-5945MHz; 8channels
- Receiving sensitivity:-90dBm
- Frequency control:built-in frequency and phase lock loop
- Double lines AV output:analog AV signal output
- Antenna connector:SMA(Inside the needle)
- Power supply voltage: 6.5-15V
- Supply current: 150mA
- Dimension:72*56*16mm

Operating frequency:
CH1:5705 CH2:5685
CH3:5665 CH4:5645
CH5:5885 CH6:5905
CH7:5925 CH8:5945

Package included:
- 1xTransmitter 2000mW
- 1xReceiver
- 2xAntenna
- 1xCable set
- 1xManual
