Description:
The large color screen Blue-tooth energy meter supports 3 major computer online system APP software, for Android, Apple, PC computer Blue-tooth wireless connection application. Various measurement parameters are available, suitable for a variety of measurement applications, and multi-purpose.

Application:
This product is used to detect the capacity of various batteries, discharge aging various power adapters, and detect the voltage, current, power and other parameters of various DC power supplies.

Product Size:
Panel size: length 85.7mm x width 63mm
Panel installation size: length 75.8mm x width 52.6mm
External shunt board size: length 56mm x width 50mm

Electrical Parameters:
Voltage measurement range under test voltage power supply mode: 0~1000V
Measuring power: 0~1000000W (0~1000kw)
Measuring current range: 0~100A

Features:
-Battery capacity/DC power supply tester: suitable for various power adapters, batteries, constant current loads, power banks, etc., to test voltage, current, power, capacity, electricity, temperature, resistance, unit price of electricity supply, and cumulative electricity fee , CO2 and other parameters and operations.
-Compatible with three major online apps. Support for Android, Apple, PC Blue-tooth wireless online APP.

Mobile phone remote wireless remote control settings and measurements:
1. For Apple Mobile Phone: Please search E_test directly in the application store to download and install, and then click Blue-tooth APP icon to open the software, click the Blue-tooth icon at the top of the software to enter DL24-BLE to connect, you can achieve remote control settings and measurement functions of the mobile phone. The discharge status can be checked at any time on the mobile phone, various data, discharge voltage, current, power, curve, etc. are clearly visible.
2. For Android Phones: Scan QR code to download the corresponding APP software and install it. Open the software, click Blue-tooth icon to enter and select DL24-BLE, you can use it online.
3.download APP software and store it. No need to install, directly open the software and select Blue-tooth serial port model just added, you can use it online.

Package List:

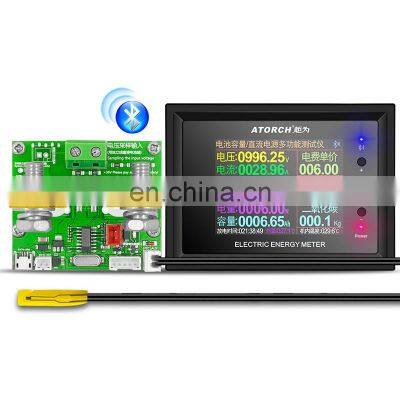

-1 x Voltmeter
-1 x External 100A Shunt
-1 x Temperature Probe
-1 x 5P Data Cable

Note: Other items on the picture are not included.

Voltage Accuracy Evaluation:

Current Accuracy Evaluation:

7 in 1 Large Screen 2.4 Inch HD Wide Color Screen Interface Design:

Technical Parameters and Wiring Methods:
