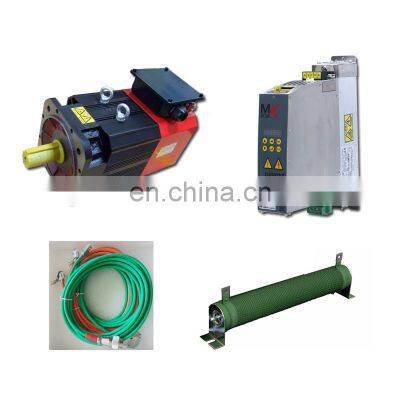

SZGH Hot Sale Ac brushless Spindle Motor 15kw 1500rpm use for Milling machine spindle system
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
SZGH 3phase ATC 3.7KW 8000RPM Milling Spindle Motor and controller for CNC MACHINE 220V/380V
-
high efficiency 5.5KW spindle servo motor for CNC machine
-
high quality 15 KW 1500 RPM AC Servo Spindle Motor for boat electric motor
-
High quality Professional Factory 5.5kw spindle motor
-
5.5KW Spindle Servo Motor SZGH Made in China for CNC Machine 0-24000rpm Provided 0.0195 Hotels Egypt 1500 35nm 57kg 6000 8000 13
-
SZGH 380v 50hz 7.5kw AC Spindle motor servo motor
Product Description
Product Description
SZGH13-2-95-15/18.5-4-1500:AC Servo Spindle Motor,rated torque is 95Nm,rated power is 15kW,matched driver is SZGH-S4T015.
No | Item | Data | ||
1 | Rated Power(Kw) | 15 | ||
2 | Rated Torque(Nm) | 95 | ||
3 | Rated Current(A) | 29.8 | ||
4 | Rated Frequency(Hz) | 50 | ||
5 | Rated Speed(Rpm) | 1500 | ||
6 | Max Speed(Rpm) | 8000 | ||
7 | Rotor Inertia | 0.065 | ||
8 | Power Of Blower(W) | 80 |
FEATURES AT A GLANCE
RIGID TAPPING
SIMPLE CONTROL
STRONG APPLICABILITY
SPEED ERROR IS SMALL
CUTTING IN LOW SPEED
POWERFUL DEVELOPMENT
HIGH POSITIONING ACCURACY
HIGH-SPEED PRECISION MACHINING
SIMPLE CONTROL
STRONG APPLICABILITY
SPEED ERROR IS SMALL
CUTTING IN LOW SPEED
POWERFUL DEVELOPMENT
HIGH POSITIONING ACCURACY
HIGH-SPEED PRECISION MACHINING
Right elevation
Spindle Servo Driver
Front elevation
Product drawing
Features
Spindle servo motor feature:
CW&CCW: Speed Error +/- 1RPM , Acceleration/Deceleration time of 3000RPM : 1second;
Independent Quasi Stop: Positioning with High Precision(0.03。);
Rigid Tapping: Max speed of tapping is 3000RPM ,Min of dental work is M3;
Function of C-Axis: Indexing Accuracy: +/-1 Pulse ; Turning/Milling: 0.01rpm;
Cutting in Low Speed: Overload(3 times holding torque),ensure stablity of cutting,applied in casting process;
High-Speed Precision Machining: Constant power output over 4000RPM,stable ratoting speed,ensure finish;
Strong Applicability: Match for CNC System , PLC etc.
Powerful Development : Custome Manufacturing.
Independent Quasi Stop: Positioning with High Precision(0.03。);
Rigid Tapping: Max speed of tapping is 3000RPM ,Min of dental work is M3;
Function of C-Axis: Indexing Accuracy: +/-1 Pulse ; Turning/Milling: 0.01rpm;
Cutting in Low Speed: Overload(3 times holding torque),ensure stablity of cutting,applied in casting process;
High-Speed Precision Machining: Constant power output over 4000RPM,stable ratoting speed,ensure finish;
Strong Applicability: Match for CNC System , PLC etc.
Powerful Development : Custome Manufacturing.
Spindle servo driver feature:
High-Performance
Control function comprehensive: stable speed control,accurate position control,excellent torque control.
Safe & Reliable
Products comply with international standard,improved with CE certification. Setup mulitiple protection circuit,the comprehensive protection of safety equipment.
Remote Communication Function(Optional)
Product can be configured with remote communication function,only need to connect with SIM card module,that can be controlled by phone's internet remotely.
Powerful Expansion Capability(Optional)
Spindle driver can be configured with many kinds of expansion modules,such as Digital terminal expansion modules, Analog terminal expansion modules, Encoder feedback divider output, RS485 ModBus RTU,CANopen, GSM/GPRS modules,digital display module, double position loop module interfaces.
And also it can also be customized manufactured according to the user's specific applications, conveniently connected to CNC controller, HMI, PLC and other control devices.
Control function comprehensive: stable speed control,accurate position control,excellent torque control.
Safe & Reliable
Products comply with international standard,improved with CE certification. Setup mulitiple protection circuit,the comprehensive protection of safety equipment.
Remote Communication Function(Optional)
Product can be configured with remote communication function,only need to connect with SIM card module,that can be controlled by phone's internet remotely.
Powerful Expansion Capability(Optional)
Spindle driver can be configured with many kinds of expansion modules,such as Digital terminal expansion modules, Analog terminal expansion modules, Encoder feedback divider output, RS485 ModBus RTU,CANopen, GSM/GPRS modules,digital display module, double position loop module interfaces.
And also it can also be customized manufactured according to the user's specific applications, conveniently connected to CNC controller, HMI, PLC and other control devices.
