Home > Products > Media Converter > Fast Delivery 10/100M Dual Fiber Zte Fiber Media Converter

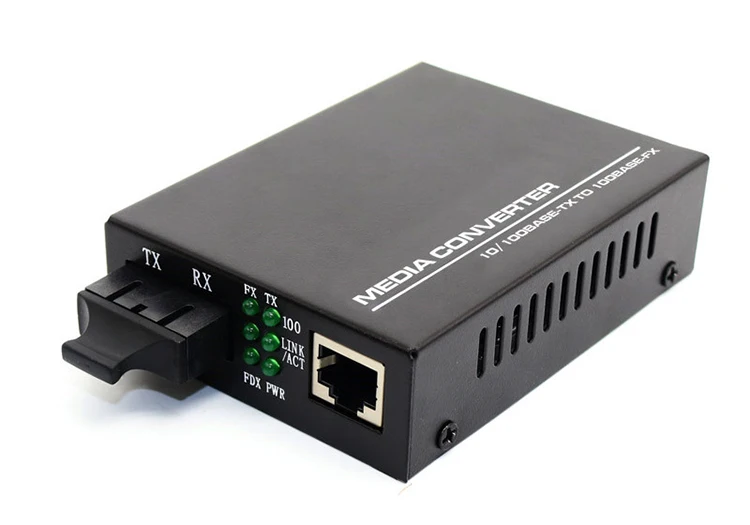

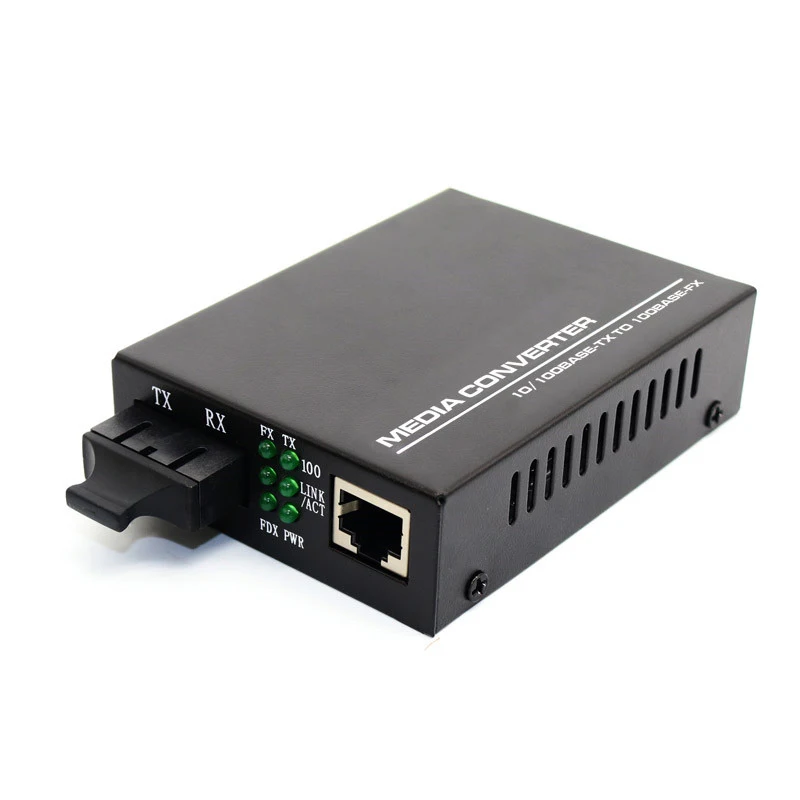

Fast Delivery 10/100M Dual Fiber Zte Fiber Media Converter

FOB Price

USD $1 - $11 / Piece

100 Pieces(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HDV		Place of Origin	China
Model Number	DF-100M-20km-MC

Product Description

Fast Delivery 10/100M Dual Fiber Zte Fiber Media Converter

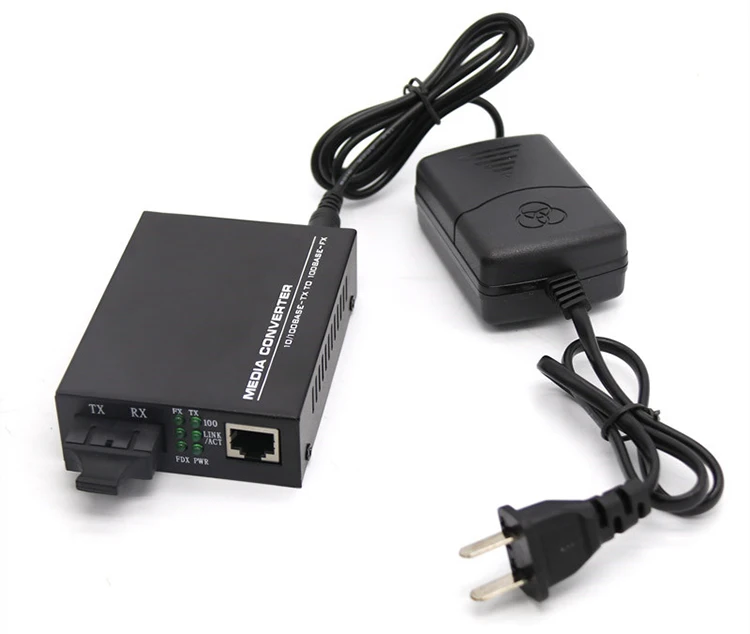

Power adapter

1.Introduction

10/100M adaptive fast Ethernet optical media converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100 Base-TX and 100 Base-Fx network segments, meeting long-distance, high-speed and high-broadband fast Ethernet workgroup users’ needs, achieving high-speed remote interconnection for up to 120 km's relay-free computer data network. With steady and reliable performance, design in accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.

2.Features
In accordance with Ethernet standards IEEE802.3 10Base-T, IEEE802.3u 100Base-T and 100Base-FX
Supported Ports: SC for optical fiber; RJ45 for twisted pair
Auto-adaptation rate and full/half-duplex mode supported at twisted pair port
Auto MDI/MDIX supported without need of cable selection
Up to 6 LEDs for status indication of optical power port and UTP port
External and built-in DC power supplies provided 128 K's data buffer RAM
Support for low-delay time pure data transmission and full/half-duplex flow control.
Built-in watch-dog timer to monitor any error in internal data exchange

3.Technical Parameters

Technical Parameters for 10/100M Adaptive Fast Ethernet Optical Media Converter
Number of Network Ports		1 channel
Number of Optical Ports		1 channel
NIC Transmission Rate		10/100 Mbit/s
NIC Transmission Mode		10/100M adaptive with support for automatic inversion of MDI/MDIX
Optical Port Transmission Rate		100Mbit/s
Operating Voltage		AC 220V or DC +5V
Overall Power		<1W
Network Ports		RJ45 port
Optical Specifications		Optical Port: SC Multi-Mode: 50/125, 62.5/125um Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um
Data Channel		IEEE802.3x and collision base backpressure supported Working Mode: Full/half duplex supported Transmission Rate: 100Mbit/s with error rate of zero
Some Product Modes and port Technical Parameters of Optical Port
Desk Type Dual-Optical Single-Mode/Multi-Mode Media Converter
P/N	Wavelength (nm)		Optical Port	Electric Port	Optical Power (dBm)	Receiving Sensitivity (dBm)	Transmission Range (km)
8110MA-05V-8S	850		SC	RJ-45	-8~ -3	≤-19	0.55
8110MA-2F-3S	1,310		SC	RJ-45	-20~ -15	≤-34	2
8110SA-10F-5S	1,550		SC	RJ-45	-15~ -8	≤-34	10
8110SA-20F-3S	1,310		SC	RJ-45	-15~ -3	≤-34	20
8110SA-40F-3S	1,310		SC	RJ-45	-8~ -3	≤-34	40
8110SA-60F-3S	1,310		SC	RJ-45	-5~0	≤-34	60
8110SA-80D-5S	1,550		SC	RJ-45	-5~0	≤-34	80
8110SA-100D-5S	1,550		SC	RJ-45	-3~3	≤-36	100
8110SA-120D-5S	1,550		SC	RJ-45	0~5	≤-36	120

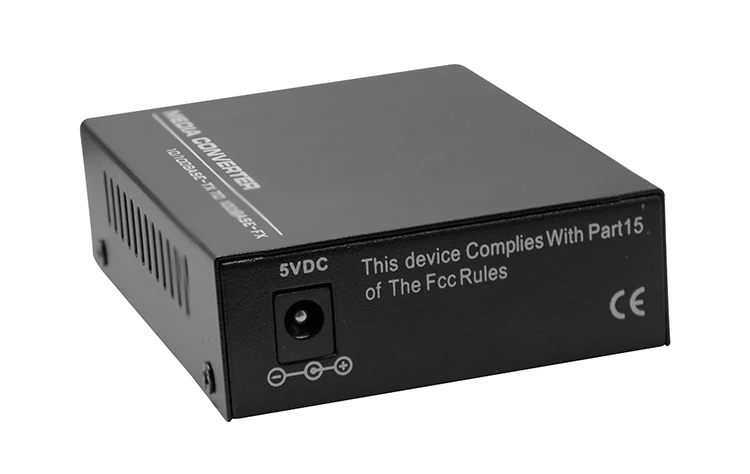

1) Operating Voltage

AC 220V/ DC +5V

2) Operating Humidity

Operating Temperature: 0℃ to +50℃
Storage Temperature: -20℃ to +70℃
Humidity: 5% to 90%

4. Product Application picture
