Green Peas Processing Production Line/Green Bean Processing Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Made in China Quick-frozen Green Peas Processing Production Line for Industry
-
Quick-frozen Green Peas Processing Production Line/Quick Freezing Machine for Green Bean Processing
-
Hot Sale Quick-frozen Green Peas Processing Production Line
-
Popcorn Machine/popcorn Machine Price/machine China Popcorn
-
Large Jacketed Pan/double Jacketted Kettle Pan/Jacketed Boiling Pan
-
Pallet Washer Basket Washing Machine
Product Description
carrot peeling machine

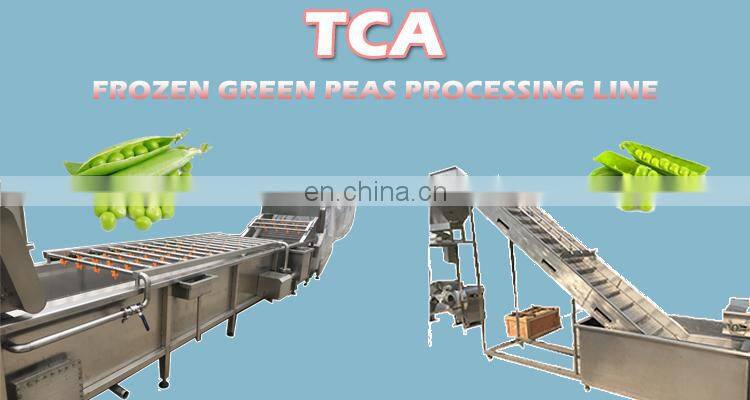

Frozen Green Peas processing line
1.Conveyor------2. Green peas peeling machine------3Waste conveyor------4Conveyor ------5.Conveyor------6.Vibrating separating machine------7Air collection machine------8Conveyor –9Conveyor ------10.Bubble washing machine------11.Belt Blanching Machine ------12.Cooling line 1------13 Cooling line with chilling water ------14.Air-cooled chiller------15. dryer------16. Conveyor------17. Vibrating machine------18 Fluidized Instant Quick Freezer------19. Conveyor------20. Weigher+Packaging machine
No | Name | Model | ||
1. | Conveyor | SSJ-3500*600 | ||
2. | Green peas peeling machine | WPJ | ||
3. | Waste Conveyor | SSJ-7000*600 | ||
4. | Conveyor | SSJ-6000*600 | ||
5. | Vibrating separating machine | ZDS-2500*800 | ||
6. | Air collection machine | FXJ | ||
7. | Conveyor | SSJ-2000*600 | ||
8. | Bubble washing machine | QXJ-5500 | ||
9. | Belt Blanching Machine | PTJ-5500 | ||
10. | Cooling line 1 | QXJ-4500 | ||
11. | Cooling line with chilling water | SLX-4500 | ||
12. | Air-cooled chiller | SJH-10AF | ||
13. | Vibrating dewater machine | ZDS-2000×1200 | ||
14. | Conveyor | SSJ-4000 | ||
15. | Fluidized Instant Quick Freezer | SDJ-1000 | ||
16. | Chiller system | Bitzer compressor and other parts | ||
17. | Conveyor | SSJ-2000 | ||
18. | Weigher+Packaging machine | 14 heads +620 packaging machine | ||

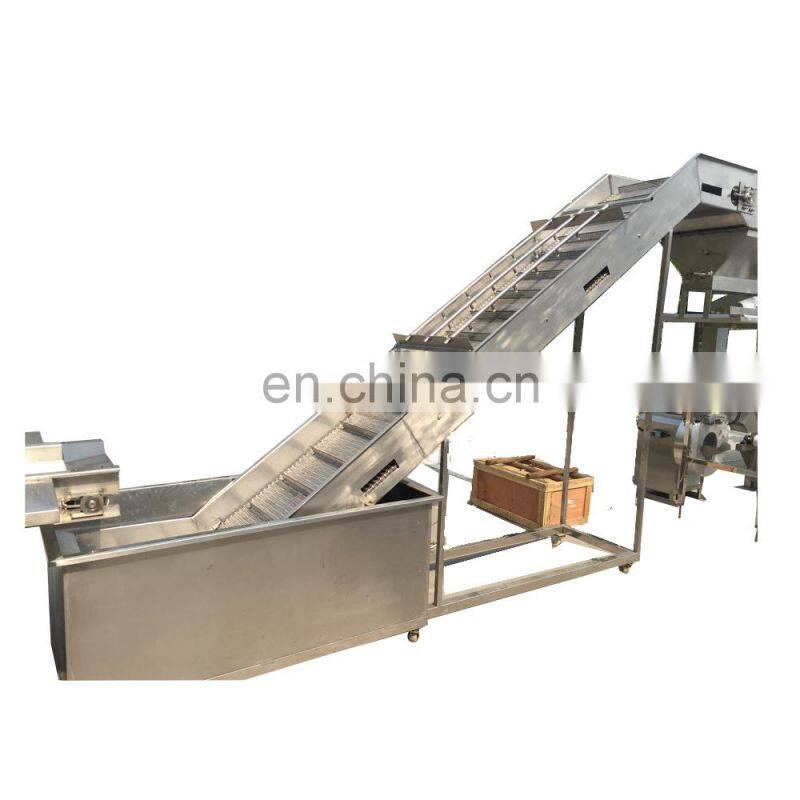

1. Conveyor
Convey and hoist the peas to the peeling machine Model:TSJ-3500*600 Power: 0.75KW/ 380V/ 50HZ Hoist speed adjustable Belt type :
PVC belt All material is SUS304 except the motor and belt Qty: 2 sets

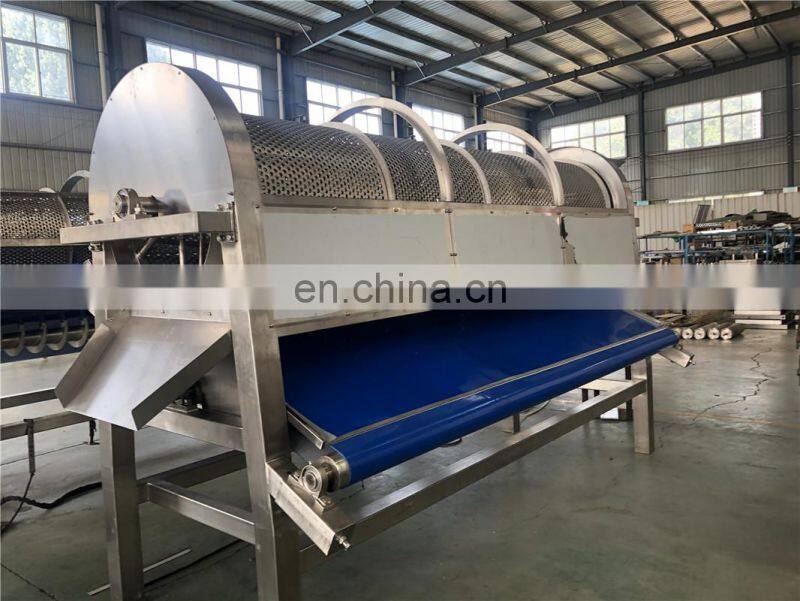

2.Green peas peeling machine
This machine is used to peel the peas and vocia faba. The knife is made ofδ6*50, the distant between the knife and the tank is adjustable Machine is made of stainless steel whose hole isφ12 1.Model: WPJ 2.Size: 3610*1725*2150 mm 3.Power: 5.5KW/380V/50HZ
4.Capacity: 1000kg/h Qty: 2sets
4.Capacity: 1000kg/h Qty: 2sets
3.Waste conveyor
It is used to convey the green skins out to other zones after peeling Model: SSJ-7000*600 Length:7m Belt width: 600mm Qty: 1set
4.VIBRATING OIL MACHINE
After peeling convey the green peas to next step Model: SSJ-6000*600 Length:6m Belt width: 600mm Qty: 1set

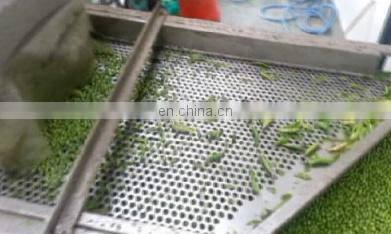

5.Vibrating separating machine
This machine is used to vibrating; The first layer is to remove the shell of the peas, the shell will be removed to the other line
to collect the shell; The second layer is for the peas after shelling. Different size for the green peas and vocia faba
Model:ZDS-2500*800 Power:0.55KW/ 380V/ 50HZ Overall SUS304 stainless steel set
to collect the shell; The second layer is for the peas after shelling. Different size for the green peas and vocia faba
Model:ZDS-2500*800 Power:0.55KW/ 380V/ 50HZ Overall SUS304 stainless steel set
6.Air collection machine
It is used to remove the small skin in the peas; With the different gravity of the skin and peas, the peas will fall down to next
device; The small skin will be removed out; Model: FXJ The frame is made of stainless steel Length: 7.5m Width: 600mm Air fan
power: 5.5kw, conveyor power: 0.75kw
device; The small skin will be removed out; Model: FXJ The frame is made of stainless steel Length: 7.5m Width: 600mm Air fan
power: 5.5kw, conveyor power: 0.75kw

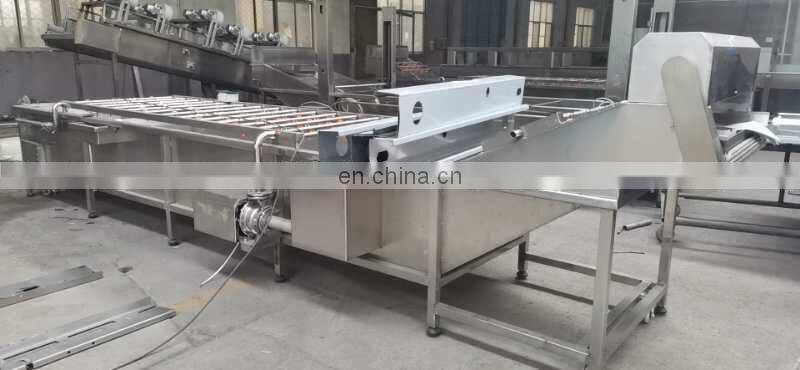

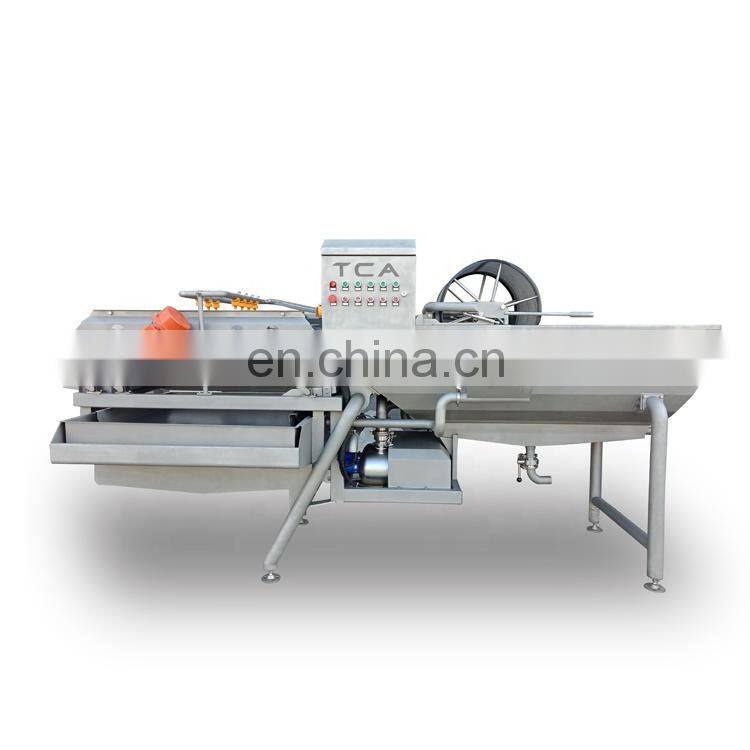

7.Bubble washing
Model: QXJ-5500 Size: 5500×2200×2000mm Power: 10KW/380V/50HZ Function: hoisting device+residue scraping device Material: SUS304.
Brush system is to remove hair or other long roe or string; 3 pcs; With the help of small cage, the worms and other small insect
and other floating residue can be removed from the vegetable or fruit to keep it clean With the help of the three lines of water
tube and small nozzle the vegetable/ fruit will be wash again To convey the vegetable/ fruit move; Belt type: board with holes;
Material: SUS304 Thickness: 3mm
Brush system is to remove hair or other long roe or string; 3 pcs; With the help of small cage, the worms and other small insect
and other floating residue can be removed from the vegetable or fruit to keep it clean With the help of the three lines of water
tube and small nozzle the vegetable/ fruit will be wash again To convey the vegetable/ fruit move; Belt type: board with holes;
Material: SUS304 Thickness: 3mm

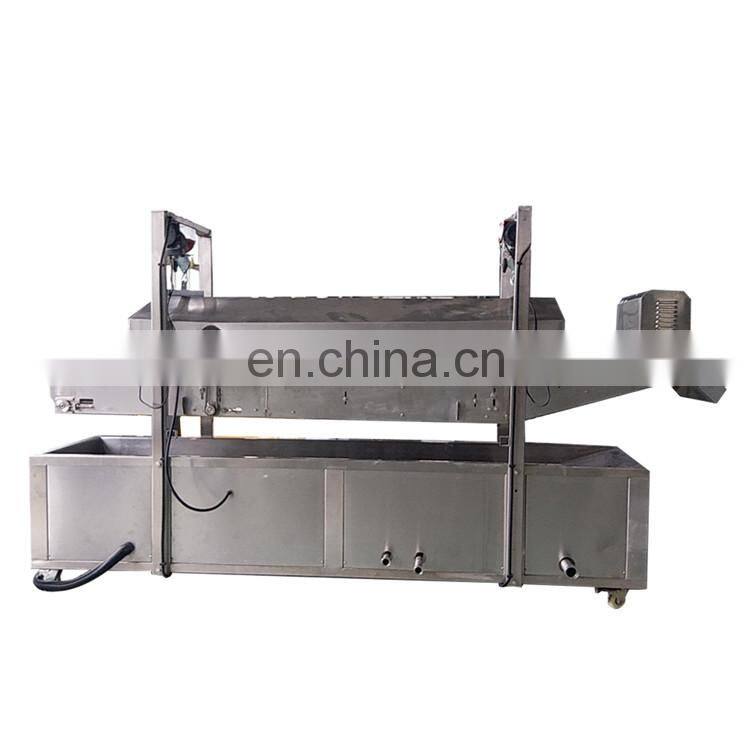

8.Belt Blanching Machine
1.Blanching process plays an important role It Is in hot water close to boiling water. 2.The purpose is to destroy and inhibit the
activity of enzymes in vegetables, prevent physiological changes in vegetable processing and cuase loss of nutrients and prevent
discoloration during vegetable processing. 3.The vegetables are blanched, a small amount of air is contained in the tissue, the
chlorophyll color is more vivid, and the chlorophyll-free vegetables become translucent. 4.It changes taste and reduces the total
number of bacteria and bacterial pollution to maintain the original color, aroma, taste, form and nutrients of the vegetables
5.For some vegetables with Volatile aroma such as garlic, onion, Celery and chives no need blanching
activity of enzymes in vegetables, prevent physiological changes in vegetable processing and cuase loss of nutrients and prevent
discoloration during vegetable processing. 3.The vegetables are blanched, a small amount of air is contained in the tissue, the
chlorophyll color is more vivid, and the chlorophyll-free vegetables become translucent. 4.It changes taste and reduces the total
number of bacteria and bacterial pollution to maintain the original color, aroma, taste, form and nutrients of the vegetables
5.For some vegetables with Volatile aroma such as garlic, onion, Celery and chives no need blanching
10.Cooling line 1
Common water is inside of the machine After blanching, the vegetable or fruits should be quickly move into cool water in avoid of
color changing and soft. The first cooling line is common water cooling line. Structure: Chains hoisting system; Mesh belt
conveying system Model: QXJ-4500*800 Size: 4500*1800*2000mm Power: 9KW/380V/50HZ Material: SUS304
color changing and soft. The first cooling line is common water cooling line. Structure: Chains hoisting system; Mesh belt
conveying system Model: QXJ-4500*800 Size: 4500*1800*2000mm Power: 9KW/380V/50HZ Material: SUS304
12.Air-cooled chiller
It supply the chiller water for the cooling line. Model: SJH-10AD Refrigerant 59.08kw ( water in temperature 10℃, condensate water
temperature 50℃) 24089 Kcal/h Power: 22.8kw Refrigerating Input power: 60kw Air fan 20000 m3/h Water pump: centrifugal water pump
Flow: 21 m3/h Condenser: 35.5 heating exchanger Evaporating 28kw Flow: 4.82m3/h Size: 2000*750*1290mm Weight: 830kg Compressor:
5HP 2 SETS, Japan's Matsushita Refrigerant R22, 6KG Stainless steel pipeline Stainless steel water pump Stainless steel evaporator
temperature 50℃) 24089 Kcal/h Power: 22.8kw Refrigerating Input power: 60kw Air fan 20000 m3/h Water pump: centrifugal water pump
Flow: 21 m3/h Condenser: 35.5 heating exchanger Evaporating 28kw Flow: 4.82m3/h Size: 2000*750*1290mm Weight: 830kg Compressor:
5HP 2 SETS, Japan's Matsushita Refrigerant R22, 6KG Stainless steel pipeline Stainless steel water pump Stainless steel evaporator
13.Conveyor
This machine is used to hoist the products to the vibrating machine Model: SSJ-4000 Dimension: 4000*2000*3200mm Power: 8kw Belt
width: 1200mm Material: SUS304
width: 1200mm Material: SUS304
1.Are you the manufactory?
A:Yes we are manufactory and have our factory.Welcome to China to visit our factory.
2.What is the material of the machine?
A:We use Food Grade SUS304 ,it is easy cleaning and with long life
3.How can I determine the quality of the machine?
A:Before place the order,you can come our factory to see the same or similar machine.
After finish the machine,wen will test it and send the video to you.
Before shipping,we will invite you to check it again.
4.How should we do if we don`t know how to install and operate the machine?
A:We provide overseas installion and also can train for you.
5.How long will the warranty be?
A:One years warranty,overseas after-sales service availabe.
6.How to find us?
A:Please inquire us.
