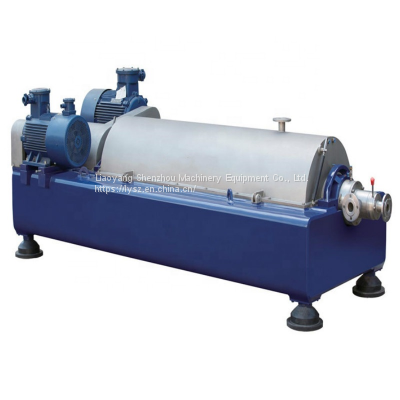

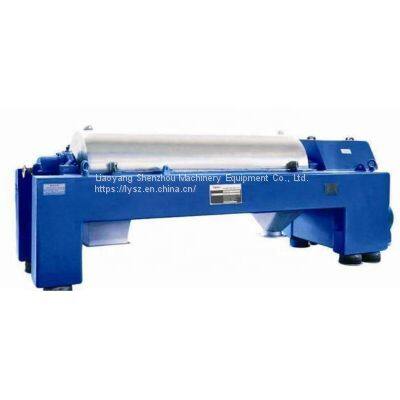

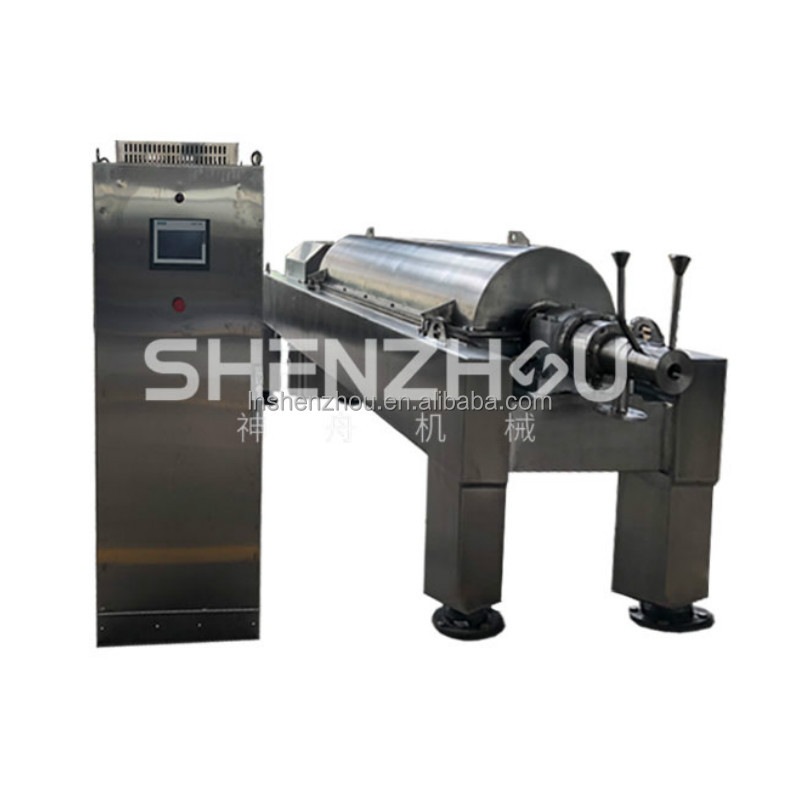

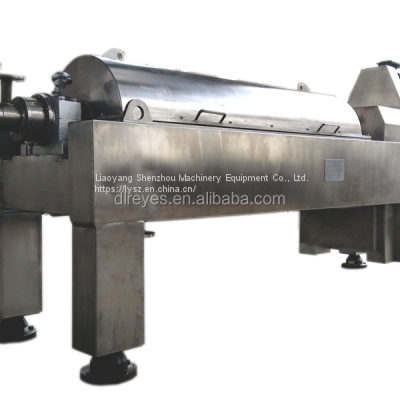

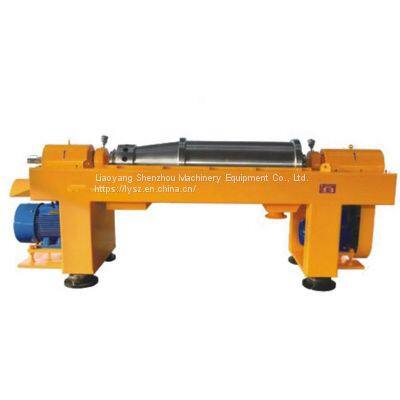

LW 2 Phase Screw Decanter Centrifuge for Soy Sauce Press

FOB Price

US$ 10000 - 16800 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T L/C
Delivery Detail90 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	LYSZ	Place of Origin	China
Model Number	LSZW-500	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas	Weight	depending on model
Dimension(LWH)	depending on model	Product Type	Other, separation equipment
Voltage	220V/380V	Power(W)	depending on model

Product Description

Recovery of wort

A beer’s character is already influenced in brewhouse. Hot trub is created during whirlpooling when wort, hop debris, and precipitated protein are separated. Up to 75% liquid wort is still contained in hot trub. The Shen Zhou decanter separates the trub from liquid wort and uses pressure to return it to the hot wort clarification process. This minimizes wort losses and reduces the production costs per hectoliter of beer.

Operating principle:
The purpose of separation is to separate out substances with different mass ratios from mixed fluid.Separation forms included solid-liquid separation,liquid-liquid separation and liquid-liquid-solid separation.
When mixed fluid enters rotating bowl of centrifuge through feed tube ,solids with larger density would rapidly deposit on inner wall of the bowl,forced by centrifugal acceleration.Then spiral pusher pushed deposited solids to taper end of the bowl,and discharges them out of centrifuge from residual outlet.Meanwhile ,liquid phase with smaller density forms a liquid ring layer and discharges from bowl through overflow port,the bowl and spiral pusher run at a high speed simultaneously ,for there exists speed discrepancy,deposited solids on the wall of bowl could be conveyed to residue outlet by spiral pusher.This separation process carry out continuously.

Separation technique
Feeding-gravitational separation-liquid discharge-sediment discharge.
Separation effect factors Centrifuging factor ,length to diameter ratio of cavity ,depth of fluid pool.
Field control
Bowl rotating speed ,rotative speed difference,between,spiral pusher and bowl depth of liquid pool.

Scope of application:

 Application fields1. Food

A flesh processing,aquatic products process and edible protein recovery;
B Extract plant protein from soybean,oily seeds and leguminous plants;
C Recovery of brewing leach liquor malt and yeast
D Treatment and recovery of wine lees liquid;
E Extract of instant coffee and tea;
F Clarification of palm oil,olive oil and seed oil;
G Extract juice from fruits ,berries and vegetables;
H Recovery of refined pectin;
I Clarification of grape juice and grape wine.

 2. Environmental protection

Drilling mud ,industrial effluent ,waste water of municipal works,fertilizer,organic waste water,paint sludge,plastic
particles,gravel washing water,waste water in steel-making ,flue gas desulfurization,sewage sludge treatment of waterworks.

 3. Petroleum and chemical industry

A Processing of kaolin and calcium carbonate,production of bentonite and titanium dioxide;
B Exploration of petroleum oil,natural gas,crude oil refining and related industries,additive of lube oil and waste oil recovery;
C Intermediate products and final products of organic chemistry industry;
D Thermoplastic materials,includes PVC,polypropylene,polystyrene,synthetic rubber and fiber;
E Inorganic chemical industry ,includes bleach,acid,silica products and fertilizers;
F Treatment of spent wash and molasses fermentation residues;
G Extraction of starch from wheat,corn ,cassava and potato;
H Waste liquid recovery and recycling from above industries.

Other fields
Pharmaceutical intermediates,salts and manures,etc.

Specification

Model	Diameter(mm)	Lenght(mm)	Max speed	L/D ratio	G-force	Capacity(m3/h)	Main motor power(Kw)	Weight(kg)	Dimension (mm)
LW250*1000	250	1000	5000	4	2722	0.5-5	7.5	950	21201250680
LW300*900	300	900	4200	3	2964	1-6	11	1160	21501300900
LW300*1200	300	1200	4000	4	2784	2-6	11	1350	24501300900
LW355*1160	355	1160	3600	3.3	2576	2-8	15	1400	24701350830
LW355*1460	355	1460	3600	4	2576	2-10	15	1800	27501350830
LW400*1200	400	1200	3200	3	2294	3-12	18.5	1800	273016001080
LW400*1600	400	1600	3000	4	2016	3-15	22	2000	313016001080
LW450*1800	450	1800	2800	4	1976	4-25	37	2500	332017001130
LW500*2000	500	2000	2800	4	1750	5-35	45	4000	352018001170
LW530*1855	530	1855	2600	3.5	2006	5-38	55	4680	388513501600
LW530*2120	530	2120	2400	4	1709	5-40	55	4800	415013501600
LW550*2000	550	2000	2800	4	2414	6-40	55	5700	457013801600
LW650*1950	650	1950	2200	3	1761	6-45	75	5000	484015101720
LW650*2600	650	2600	2000	4	1456	6-65	90	6000	549015101720
LW720*2160	720	2160	2000	3	1612	7-80	120	6000	520016001800
LW720*2880	720	2880	2000	4	1306	7-90	120	8000	310016001800
LW800*2400	800	2400	1800	3	1451	20-100	150	12000	582020001300
LW800*3200	800	3200	1800	4	1451	20-120	150	1300	710020001300
