Glass fibre reinforced plastic pipe GRP water pipe

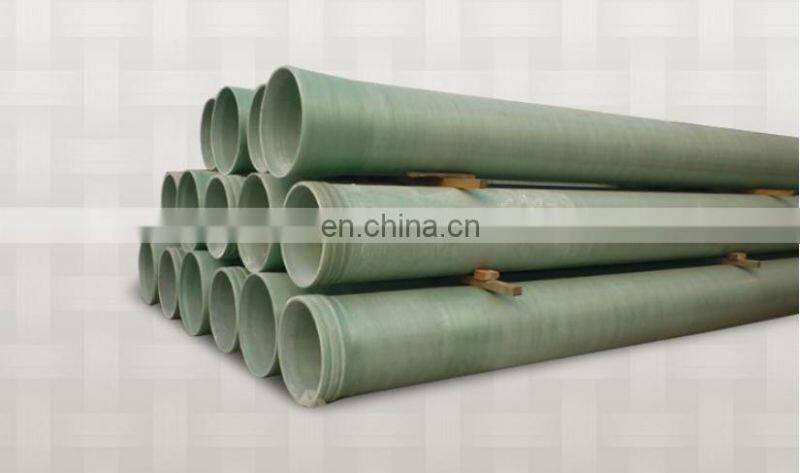

FRP Mortar Pipe

Product Introduction of FRP Mortar Pipe

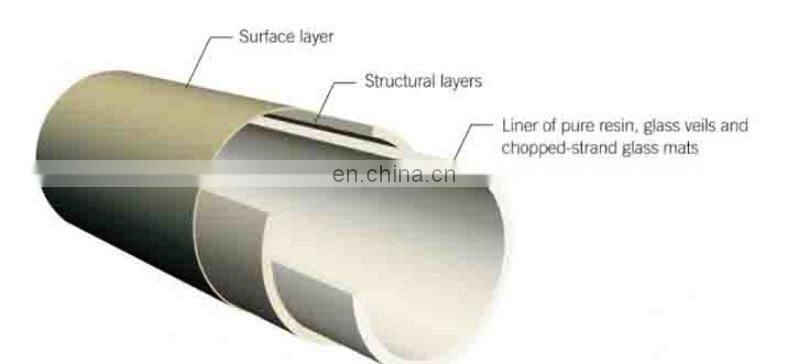

FRP mortar pipe is in the filament winding process, using quartz sand layer will strengthen, make its have sandwich structure, such as reducing the comprehensive cost of the pipeline, and improve the overall strength and stiffness of the pipeline.
High pressure FRP pipe is a new type of nonmetallic pipe. In its making, glass roving, soaking by low viscosity but strong adhesive bonding resin,winds around mould at the preset angle and layers. It has to be cured, released from the mould and then processed. Excellent corrosion resistance, high endurance, light weight and high strength are among its special properties

Features of FRP Pipe
1 Corrosion resistance: Choose different kinds of anti-corrosion GRP pipes according to the medium requirements.
2 Pressure resistance: Design and munufacture pipes and fittings according to technical pressure requirements. Test the pipe under the requried pressure multiplied by 1.5 times.
3 Heat resistance.
4 Resistance to low temperature (up to -70 °C) and high temperature(up to 250 °C).
5 Insulation property: Good insulation property. After improvement can eliminate static electricity.
6 Fire-retardant property. No spontaneous combustion. Excellent fire-retardant property. Can be self-extinguishing.
7 Various of colours: Good transparent performance. After improvement can be varous kinds of colors.
8 Good thermal performance: After improvement can increase the thermal conductivity.

Specifications of FRP Mortat Pipe

1 Diameter:DN300mm-DN4500mm
2 Pressure:0.25MPa,0.6MPa,1.0MPa,1.6MPa,2.0MPa,2.5MPa
3 Single length:3m,6m,9m, 10m,12m
4 Stiffness: 2500Pa, 3750Pa, 5000Pa,7500Pa, 10000Pa
5 Manufacturing process:Using CNC mechanical winding technology.
Note:also can according to users required to produced the different diameter and pressure and stiffness pipe.

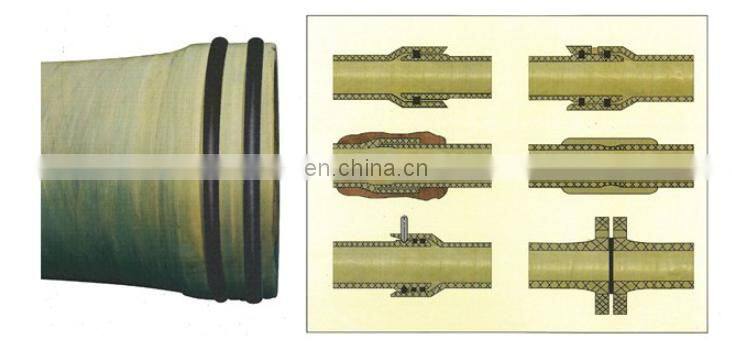

Conection Methods of FRP Mortat Pipe

1 Sole sealing ring socket coupling: suitable for medium pressure

2 Double sealing ring socket coupling: suitable for high pressure

3 Socket coupling: suitable for high pressure and heavy-caliber piping

4 Spigot coupling: suitable for high, medium and low pressure piping and fittings' coupling

5 Socket '0' type sealing coupling, nylon clapper '0' wedged lock which mainly apply to axial strength piping

6 Flange coupling: suitable for medium and low pressure piping

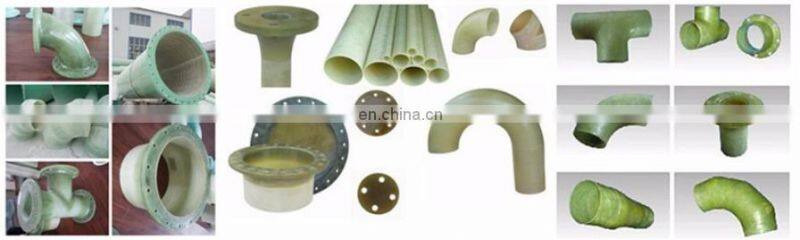

Fittings of FRP Pipe shuangjiantou You can click here to check fitting details.

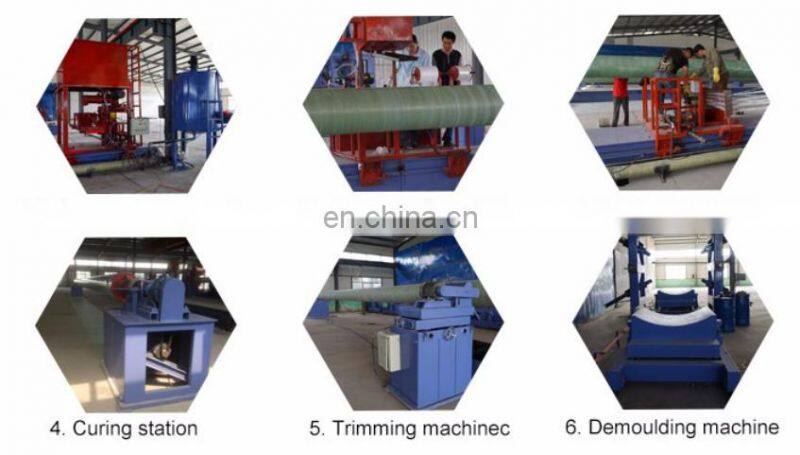

Process Technoly of FRP Mortar Pipe

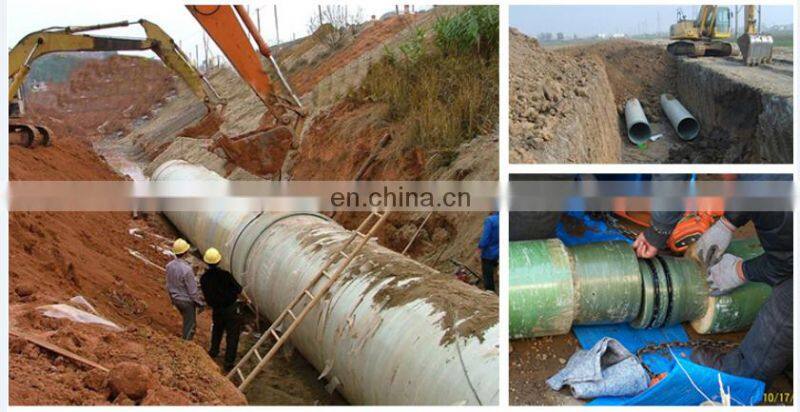

Application Case of FRP Mortar Pipe

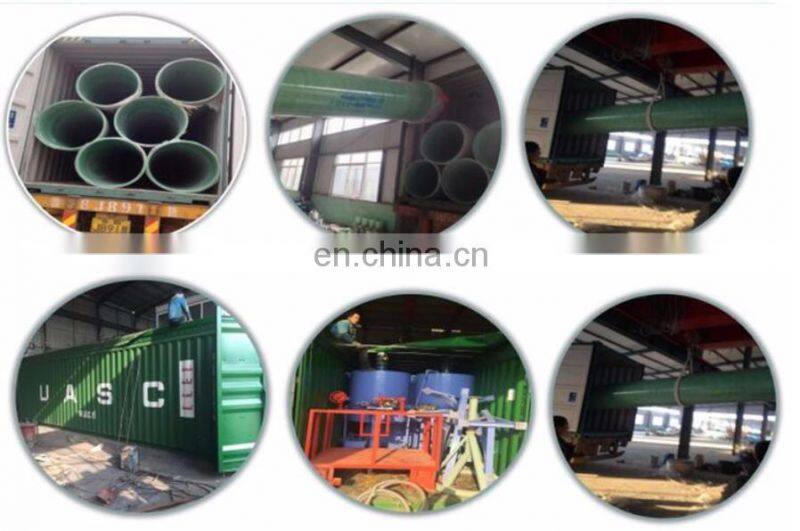

Packing and Delivery of Fiberglass Mortar Pipe

Our Company

Our plant founded in 1992 with annual capacity of 60000 tons, is located in biggest FRP production base of China - Hengshui City .

With high quality and reliable and professional service, our frp products have been exported to all over the world including USA, Japan, Brazil, Germany, Egypt, India, Malaysia and won good fame and trust from new and old clients.

Meantime we have made good cooperation with many firms of top 500 of the world, such as BAYER, BASF, Rohm and Haas, DOW Chemical, Fluor, etc.
