Product Description

Product Description

Flake Type Plastic Crusher
Flake type blade design, suitable for crushing general plastics like sheets, tube, profiles and packing materials, also runners, etc.
Product Specifications
Model  | XC-GP500  | XC-GP600  | XC-GP800  | XC-GP960  | ||
Grinding Chamber(mm)  | 510*300  | 610*330  | 815*470  | 960*610  | ||
Grinding Capacity(KG/H)  | 300-350  | 350-450  | 450-600  | 800-1000  | ||
Stationary Cutter  | 2  | 4  | 4  | 4  | ||
Rotary Cutter  | 15  | 18  | 24  | 30  | ||
Mesh Size (mm)  | Ф10  | Ф10  | Ф10  | Ф12  | ||
Power  | KW  | 11  | 15  | 22/30  | 37/45/56  | |
HP  | 15  | 20  | 30/40  | 50/60/75  | ||
Dimension (L×W×H mm)  | 1290*975*1670  | 1290*1075*1740  | 1735*1525*2180  | 2000*1725*2670  | ||
Net Weight(KG)  | 900  | 970  | 2000  | 3000  | ||
If you want more sizes, please contact us for details

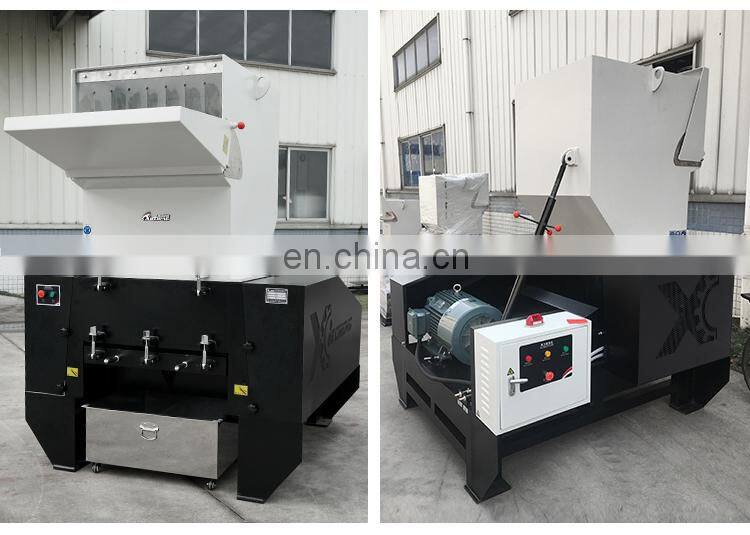

Product Actual Shooting

Product Details

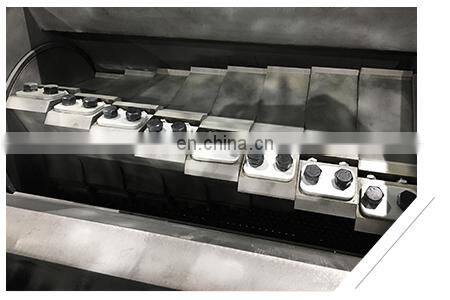

 01  Durable Cutter
? Flake type blade design, blades are made of high-strength alloy tool steel, with high hardness, good abrasion resistance, and long durability.
? Material: CR12MOV, hardness in 57-59°
? Material: CR12MOV, hardness in 57-59°
 02  Chamber Wall Thickness
Chamber wall thickness 20~50mm, more stable in crushing process due to better load-bearing, hence with higher durability.

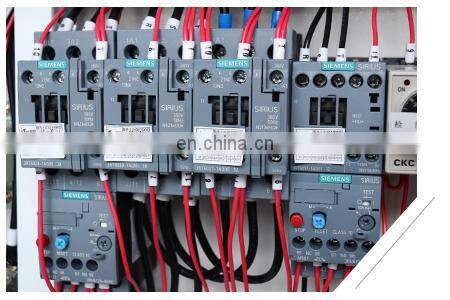

? SIEMENS electrical parts ensures stable running and liability of the machine;
? Optional Deluxe CE: CE wiring, CE safety electrical devices.
? Optional Deluxe CE: CE wiring, CE safety electrical devices.
Feeding hopper with back and front double layered insulation for effective noise handling.


≥30HP default with chamber cooling system, effectively reducing the heat of chamber and shaft to ensure long durability and preventing material melting and fusion.
Blade Production Process

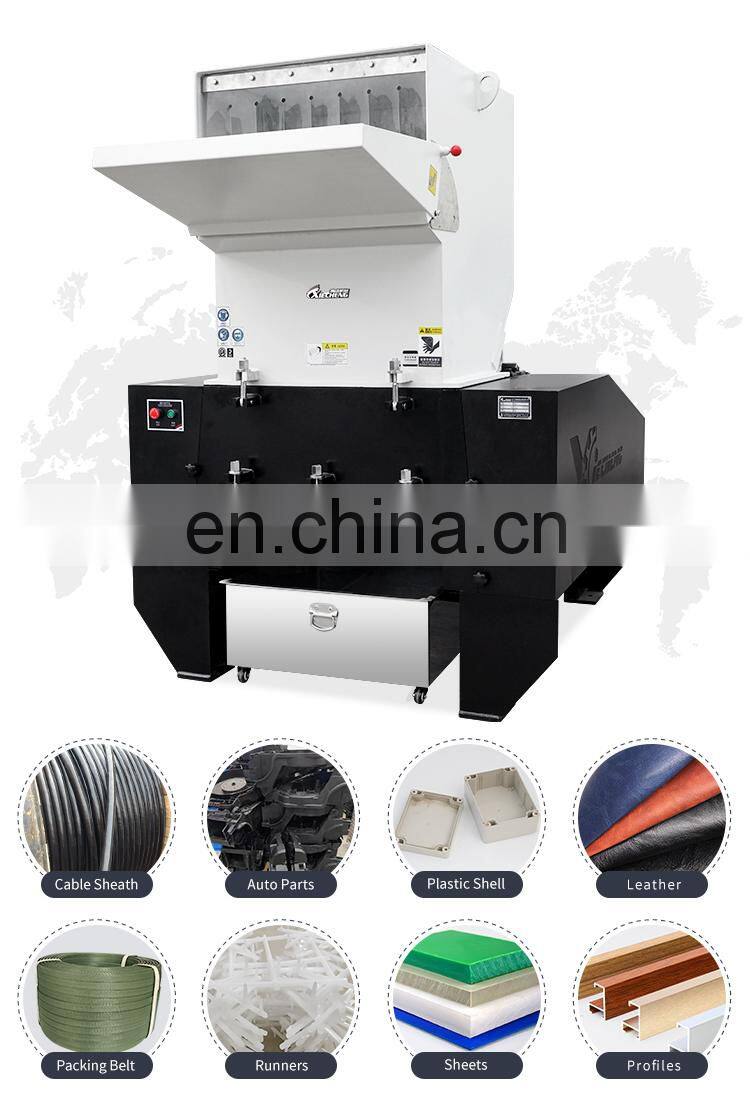

Application Range
Flake cutter blades are suitable for recycling and restoring of conventional sheets, tube plastics, profiles, packing plastics, extrusion mold products and runners, etc.
