Product Description
Product Description

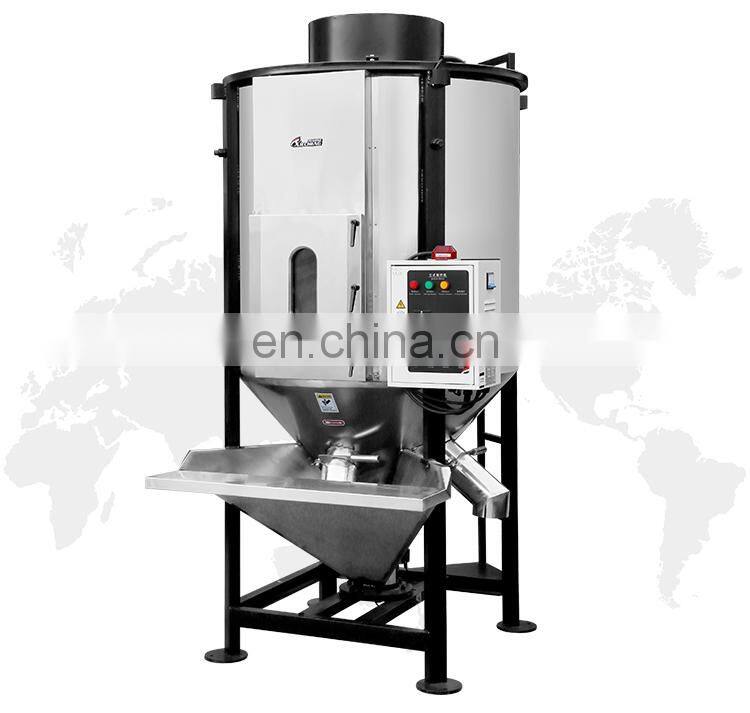

Vertical Blender
Vertical Blender adopt helical circular mixture, fast and evenly stirring. It is suitable for mixing masterbatch with all kinds of plastic raw materials and even better with new and grinded materials.
Product Specifications
Model | Power | Capacity (KG) | Voltage | Dimensions (mm) | Rotating Speed (R/min) | Heating Power(KW) | Blower (KW) | Net Weight (kg) | ||
KW | HP | |||||||||
XC-JB500L | 2.2 | 3 | 500 | 380 3Φ | 1210*1480*2425*520 | 300 | 12 | 0.32 | 450 | |
XC-JB1000L | 3 | 4 | 1000 | 380 3Φ | 1636*1800*3070*705 | 300 | 18 | 1 | 630 | |
XC-JB2000L | 4 | 5 | 2000 | 380 3Φ | 1930*2035*3650*680 | 300 | 30 | 1.5 | 1050 | |
XC-JB3000L | 5.5 | 7.5 | 3000 | 380 3Φ | 2375*2420*3670*700 | 300 | 38 | 2.2 | 1250 | |
XC-JB5000L | 7.5 | 10 | 5000 | 380 3Φ | 2375*2420*3670*700 | 300 | 38 | 2.2 | 1500 | |
If you want more sizes, please contact us for details

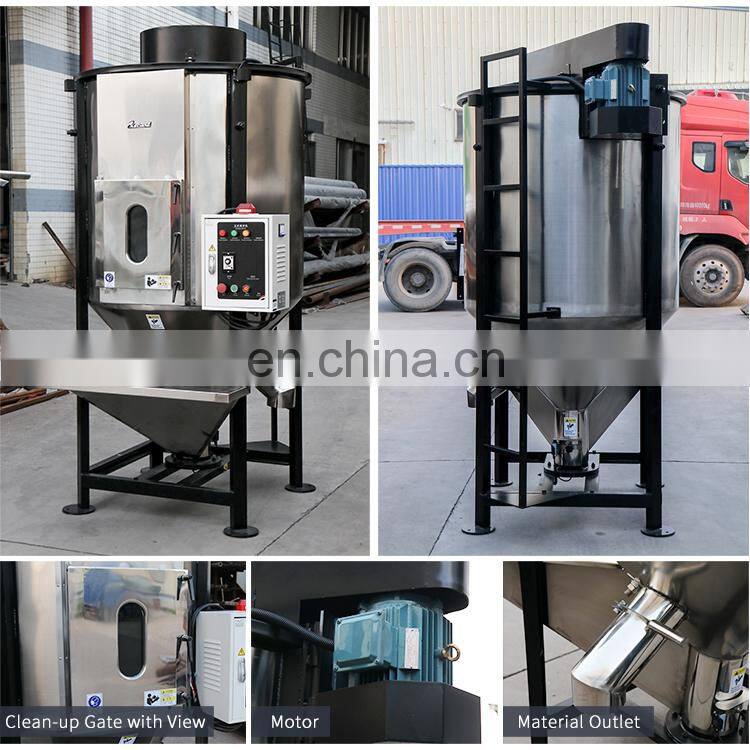

Product Actual Shooting
Product Details

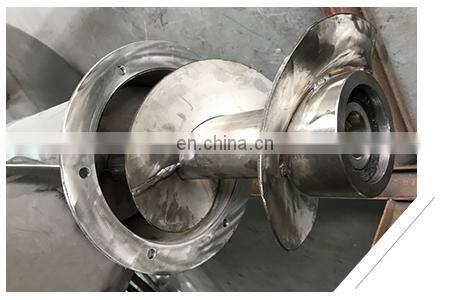

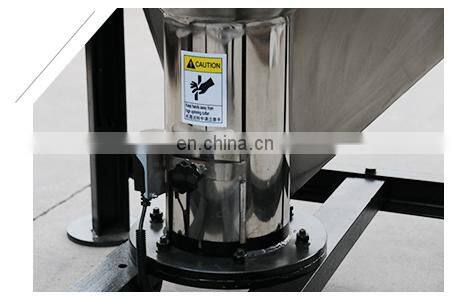

01 Screw
? The main screw rod is made of stainless steel 304, the paddle is made of stainless steel 201, the thickness is 4.0mm；
? Helical circular mixture, fast and evenly stirring.
02 Stainless Steel Material
Fully stainless steel contacting parts, rust free and easy to clean.

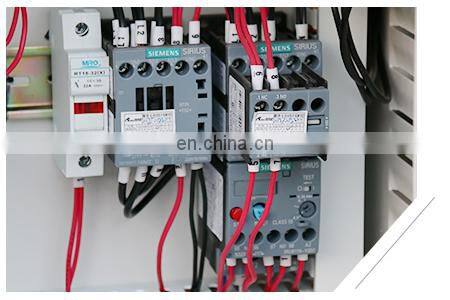

SIEMENS electrical parts ensures stable running and liability of the machine.

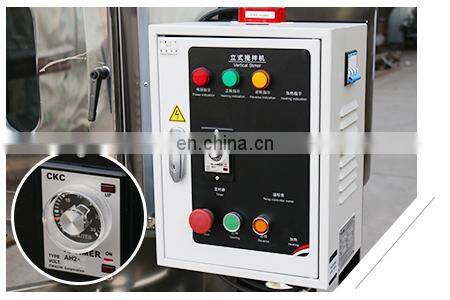

Installed with power control device to ensure safety.
Mixing time able to set within 0~30 minutes.

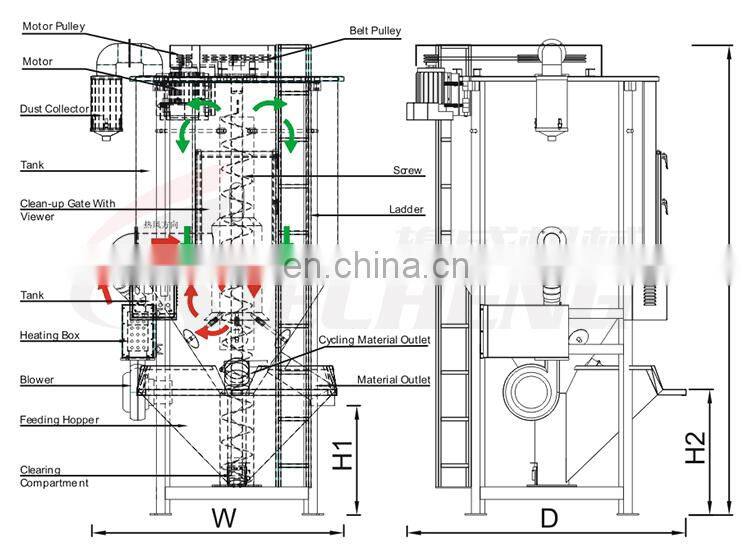

Working Principle
Vertical blender are able to perform even mixture for large volume of materials in short mixing time by utilizing the paddles rotation to gather the materials from the bottom of dump center to the top, shed the material flow back to the bottom and complete the mixing function in short period of time.
