Plate Drift Eliminator Demister Pad Mist Eliminator for Cooling Tower Water Receiver

plate drift eliminator demister pad mist eliminator for cooling tower

Mist eliminator is deducted the hot humid air from the midst of the small droplets drift in cooling Towers, to avoid things around the environment pollution and icy water mist, water saving and environment protection device. Mist eliminator widely used in domestic power plants,steel mills,oil chemical industry, such as mechanical ventilation and natural ventilation cooling tower.

The Characteristics for each type of Corrosion Resistant Liquid Gas Separator Mist Eliminator Demister

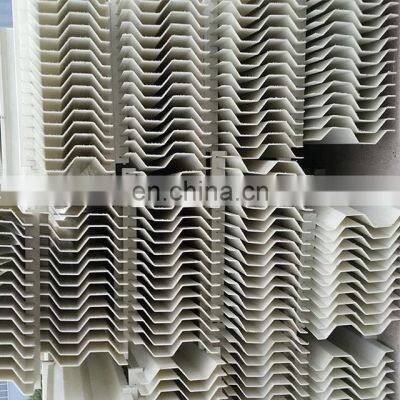

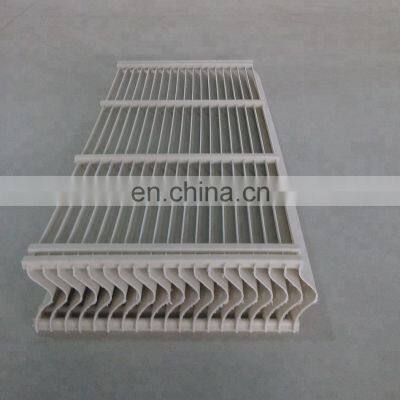

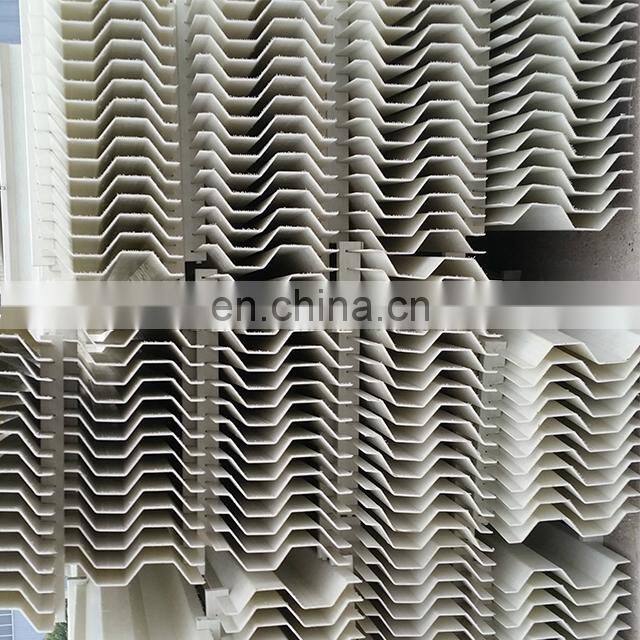

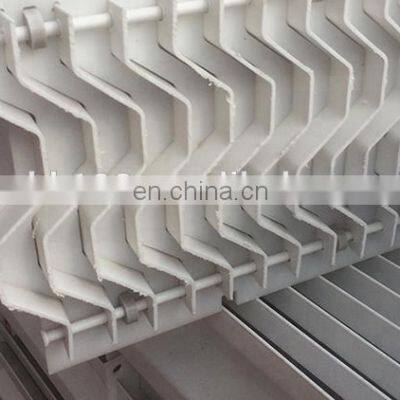

 Plate Type Mist eliminator

The plate type mist eliminator is crossly made by corrugated shape blade and steel plate. It is installed on top of tower and perpendicular to structure of flue gas. There are two layers of design: first and second level. Flue gas imports into mist layer vertically. Steel plate and the blade are connected with hotgas welding and thermofussion welding. The distance ranges between steel plates is between 520-660mm, which changes according to the distance of channel. The distance between blades is: 40 mm for first level, 25 mm for second level. The general channel span is 1850 mm. The interval between beams is 2185 mm. Three layers of flushing: two upward in the front of the mist eliminator, one downward on the back of mist eliminator. The interval between two-stage mist eliminator ranges between 1800-1950mm. Washing up and down two layers of first-degree mist eliminator, washing up one layer of second-degree mist eliminator. No need to wash the back part.(as shown)

Transverse Flue Mist Eliminator
The shape of blade is like sine curve. The surface is smooth and easy to wash. These contribute to the reduction of blocking risk; Blade adopts the hook, belt reinforcement design, which can hold up tiny droplets;  Blade is made by high-intensitive FRPP. The material is fine and close;  Maintenance of mist eliminator is convenient;  Design of drainage system is unique. It can completely drain intercepted grout.
