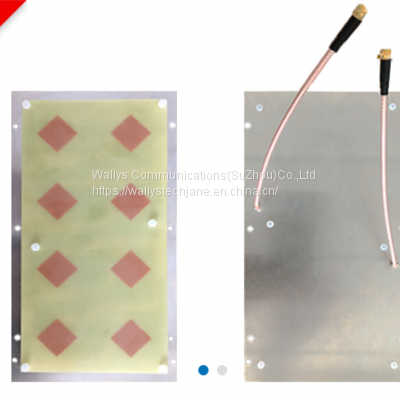

Dual Polarized Micro strip Antenna Array DR5G17
You May Like
Product Details
| Brand Name | https://www.wallystech.com/ | Place of Origin | China | |
| Model Number | DR5G17 |
Product Description
WEB: /
EMAIL: sales1@wallystech.com
Wallys Communications（SuZhou）Co.，Ltd
/channel/UClmu7LBz_OWxe2VckkQr3tw
1. Feature
* 17dBi Dual Polarized Micro strip Antenna Array
* 5GHz of frequency
* MMCX connector
* Support 802.3 11AX/AC/AN
* RoHS compliance
2. Application
* 5GHz Wireless Communication
* WLAN device, WLAN Router, e.g., AP, PIC Wireless Card
3. Description
This antenna array is designed for 5GHz applications and can be easily built-in portable devices with MHF processes. It has excellent stability and sensitivity to consistently provide high signal reception efficiency.
4.Product Name Dual Polarized Micro strip Antenna Array
Part No. DR5G17_A DR5G17_H
Frequency 5.1GHz-5.9GHz 5.1GHz-5.9GHz
V.S.W.R <1.85 <1.65
Gain (dBi) 17dbi 18dbi
Polarization Vertical & horizontal Vertical & horizontal
Isolation >40db >40db
Storage Temp -20°C~70°C -20°C~70°C
Operating Temperature -20°C~60°C -20°C~60°C
Antenna Type Antenna Array Antenna Array
Dimension 200*105mm 200*105mm
