Home > Products > Copper cabling series > MT-3805 K4 Anti-corrosion Gel-filled Connector UB2A Connector UB UPB Terminal Block

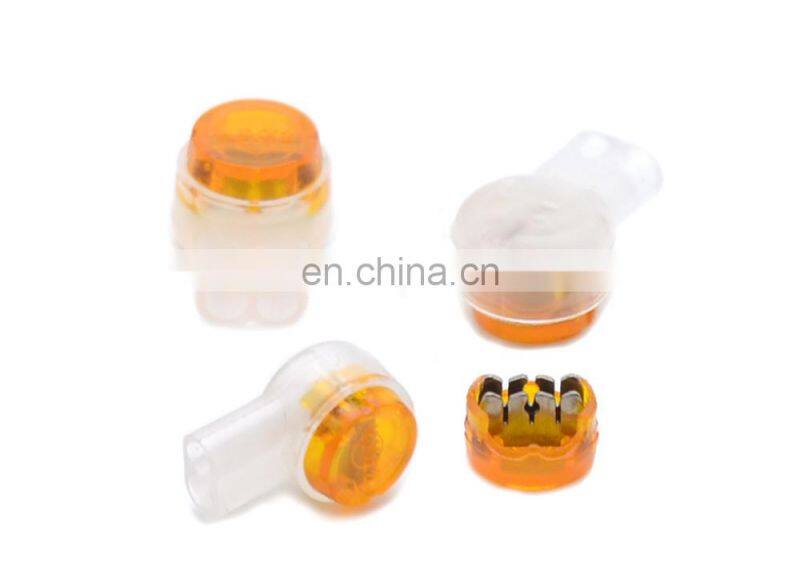

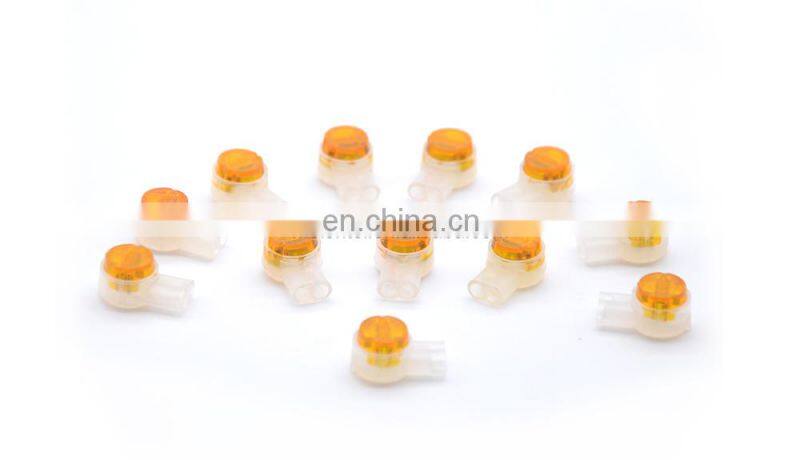

MT-3805 K4 Anti-corrosion Gel-filled Connector UB2A Connector UB UPB Terminal Block
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
MT-3803 UR Connector UR Terminal Block Connector UR Connector
-
MT-3801all Kinds Connector UY/UY2/UR/UB/UG/U1B/UDW2 1.52mm Wire Connectors UY Connector With Gel
-
MT-3021-A 1 Pair 1 Way Single Pair Telephone dp Box Distribution Box for Telephone Drop Cable
-
MT-3022 Indoor Type 2 Pair Drop Cable Wire Distribution Box for STB Module
-
MT-2113 10 Pair Telephone 3 Pole Lightning Protect Krone Lsa Arrester Magazine
-
MT-2354 100 200 Pair Metal Distribution Box for Wall Mounting
Product Description
|
Name : |
Connector |
|
Country of origin : |
Ningbo,China |
|
Application: |
Network and Telecommunication |
|
Insulation : |
2.08 mm(max) |
|
Conductor: |
0.4-0.9mm |
|
Type: |
UB |
|
Color: |
Blue |
|
Packing : |
100 pcs/bag |
|
Warranty period : |
5 year |
Wire connectors includes a variety of butt splices and inline tap splices.The IDC butt splices in the Series employ a specially designed wire insulation displacement contact to make a reliable electrical connection to each wire. A "live-spring" joint is made by driving the wire down into the "U" contact connector. This simple process displaces the insulation and grasps all conductors with a firm, resilient pressure, all in one motion. These connectors include a factory installed sealant to protect against corrosion and seal out moisture.
The Series in-line tap wire splices are real time savers. They enable the user to tap into another wire without interrupting service. A U-shaped element inside each connector displaces insulation material and makes contact with the copper conductor. These wire splices also include factory-installed sealant to protect against corrosion and seal out moisture. Tap connectors are fast to install, easy to work with and available in a wide range of common wire gauges.
Tap connectors allow direct tapping into existing solid copper conductors without interrupting service. The pre-crimp feature helps hold the wires in place until the connector is crimped and the splice is complete.
The Series in-line tap wire splices are real time savers. They enable the user to tap into another wire without interrupting service. A U-shaped element inside each connector displaces insulation material and makes contact with the copper conductor. These wire splices also include factory-installed sealant to protect against corrosion and seal out moisture. Tap connectors are fast to install, easy to work with and available in a wide range of common wire gauges.
Tap connectors allow direct tapping into existing solid copper conductors without interrupting service. The pre-crimp feature helps hold the wires in place until the connector is crimped and the splice is complete.
