Hanxin 22 years fiber optic cable manufactory supply good price internet plc splitter
- 1000 per Month
- T/T Credit Card
You May Like
-
HANXIN 22 years fiber optic cable manufactory supply single mode 10g d link media converter
-
manufacturer for fiber optic equipment mini fiber media converter SC single mode multimode 10/100/1000M convertor
-
Hanxin fiber optic cable accessories clamp drum
-
Hanxin 19 years fiber optical cable supply fibre optic lighting thread light
-
Hanxin 22 years fiber optic cables factory supply fibre optics cable machine
-
Hanxin 22 years fibra optica factory accessories fiber optic splice closure price
Product Description
Hanxin 22 years fiber optic cable manufactory supply good price internet plc splitter
We are 22 years fiber optic cable manufactory!
Welcome to go to the factory tour!
We focus on the quality of the fiber optic cable!
Send message to us can get free samples.

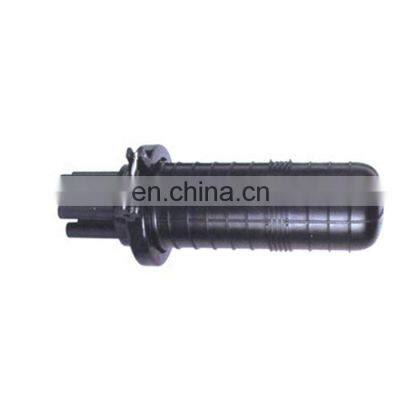

Optical Fiber Splice Closure Description
Necero Optical Fiber Splice Closure made of engineering plastic-polycarbonate materials with good anti-erosion and anti-aging
The main body is made of superior engineering plastic-polycarbonate materials. External structural components and fastening components are made of stainless steel with good anti-erosion and anti-aging performance.
The entry and exit points of optical cables are equipped with airtight seals to ensure airtight performance of the cabinet.
It adopts dual cable press technology to ensure there is no additional signal wastage or overheads within the cabinet.
Optical cables that go in or come out of the cabinet can be connected or broken off.
Suitable for laying direct and breakout splice of overhead, pipe bulletin, and underground pipe also protect the connector.
With multiplexing and expansion functions
Optical Fiber Splice Closure Specifications
| Item No. | In-out number | MAX Capacity (Fibers) |
Dimension (mm) |
Cable Diameter |
Gross Weight (Kg) |
Sealing structure |
Normal Configure |
| 1 | 1-1 | 48(4×12) | 500×190×90 | Φ7~18 | 3 | Seal tape | 12 |
| 2 | 1-1 | 60(5×12) | 502×180×116 | Φ7~18 | 3 | Seal tapeor silicon rubber | 12 |
| 3 | 2-2 | 60(5×12) | 460×180×108 | Φ7~18 | 3 | Seal tapeor silicon rubber | 24 |
| 4 | 2-2 | 60(5×12) | 492×180×104 | Φ7~25 | 3 | Seal tape | 24 |
| 5 | 2-2 | 60(5×12) | 492×202×104 | Φ7~25 | 3 | Seal tape | 24 |
| 6 | 4-4 | 96(8×12) | 492×202×175 | Φ7~25 | 5 | Seal tape | 24 |
| 7 | 2-2 | 96(8×12) 120(5×24) |
599×195×136 | Φ7~25 | 4 | Seal tapeor silicon rubber | 24 |
| 8 | 4-4 | 144(12×12) 216(9×24) |
590×195×188 | Φ7~25 | 8 | Seal tapeor silicon rubber | 48 |
| 9 | 6-6 | 72(6×12) | 490×200×140 | Φ7~25 | 5 | Seal tape | 24 |
| 10 | 3-3 | 216(9×24) | 660×260×250 | Φ7~25 | 7 | Seal tape | 36 |
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 22 years’ history.
2.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
3.What is your warranty period?
25 years for fiber optic cable,5 years for optical equipment
4.Which kind of certification you have ?
ISO9001, SGS, RoHs.
5.What is your delivery time?
Usually within 2-3 working days
6.What is your payment way?
T/T, L/C, Western Union and Paypal.
7.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
