Hanxin Ftth Fiber Optic Wifi Router Catv Equipment Gepon Xpon Gpon Epon Converter Cabinet Onu

Hanxin ftth fiber optic wifi router catv equipment gepon xpon gpon epon converter cabinet onu Description:

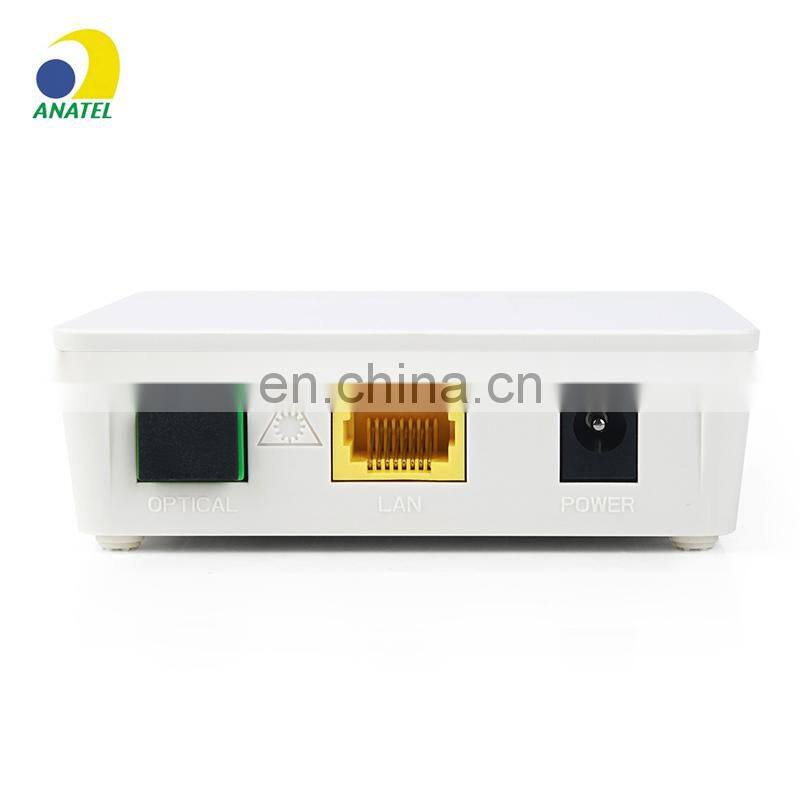

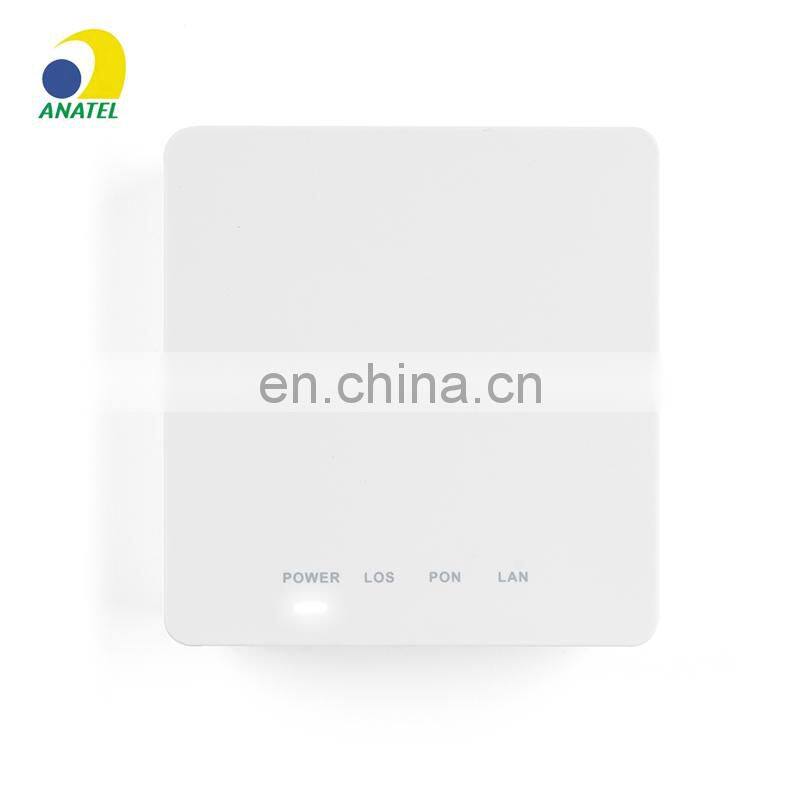

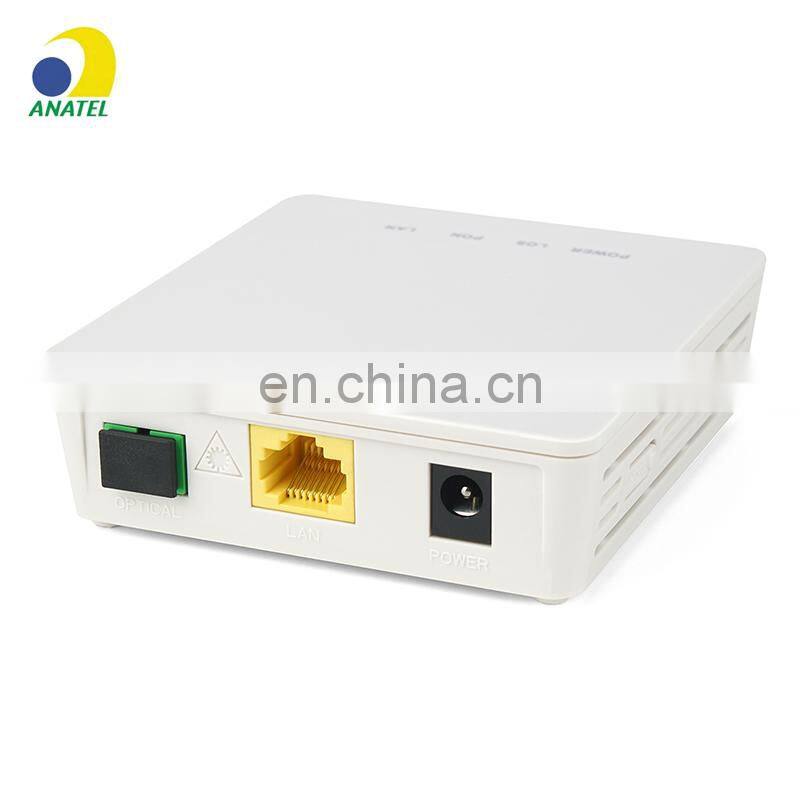

HX-1GE ONU is a simple but functional design specially for use with FTTH/FTTO to provide the data and video service based on the GPON network. It provides 10/100/1000 Mbps based Ethernet networks. With one optical interface, supported router function in highly impacted.Specially suitable for home and small business users and the FTTH high-speed data transmission of the application.

Product Features

Supports the configuration of Ethernet interface rates, working modes, MDI/ MDIX auto-negotiation mode, and Pause flow control;

Supports packet filtering and protection against illegal message attacks: suppresses unknown unicast, multicast and broadcast packets;

Provides performance statistics on all Ethernet lines;
Supports IGMP snooping protocol;
Supports the L2 wire speed forwarding;
Supports the WEB configuration function;
Supports the AES-128 algorithm for data encryption of downlink data;
Performs various QoS functions: supporting global configuration of queue priority and flexible mapping of 802. 1p value of packets;
Supports the PQ queue scheduling mode;

Technical Parameters

Fiber port:
1 GPON interface, SC single-mode/single-fiber, Downstream rate
2.5Gbps, Upstream rate 1.25Gbps

Wavelength:Tx 1310nm, Rx 1490nm

RX sensitivity:<-28dBm (1490nm)

WLAN:IEEE802.11b/g/n,300Mbps, a built-in antenna

LAN:1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface

Throughput:Throughput can reach 900Mbps or more

DC power:12V 1A, external AC-DC power adapter

Button:Reset
Power:≤8W
Operation:Working temperature: -5-+55℃  working humidity:10-90%(non-condensation)
Storage Storage temperature: -30℃-+60℃ storage humidity: 10-90%(non-condensation)

Volume and weight:85*89*27.5mm/0.2kgs

1.Are you the real manufacturer?

Yes.  We are the real manufacturer with 20 years’ history.

2.What is your fiber brand ?

HANXIN,MECABLE,NECERO, etc

3.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

25 years for fiber optic cable

5.Which kind of certification you have ?

ISO9001, SGS, RoHs.

6.What is your delivery time?

Usually within 2-3 working days

7.What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8.What is your payment way?

 T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.
