Electromagnetic Low-current 27 V DC / AC Russian Components Relay

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

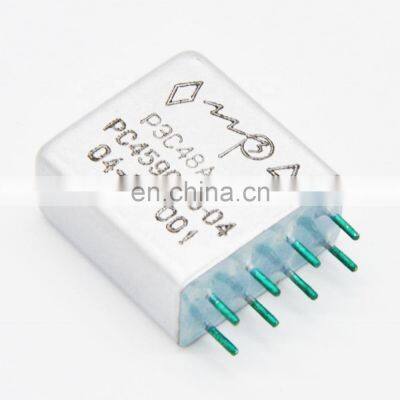

РЭС48А-В РС4.590.213-04 Relay

sealed, monostable, two-position, with two change-over contacts, powered by direct current It is intended for switching of DC and AC electric circuits with a frequency of up to 1100 Hz. Its structural design comprises plug-in terminals. Insulation resistance between current-carrying circuits, current-carrying circuits and the case - NLT 200 MOhm. Actuation time - 10 ms, release time - 5 ms. Operating voltage - 27 V.

- Electromagnetic, low-current, neutral

- ТУ ЯЛ0.450.033

- ГОСТ (GOST) 16121-86

- РС4.590.213-04 modification

- Nominal voltage 27 V

More than 50,000 items of goods are stock available and supplied on order.

Functional group	Electromagnetic, low-current	Actuation time	10 ms
Function type	Neutral	Release time	5 ms
Modification	РС4.590.213-04	Maximum commutated direct current	1 A
Technical specifications	ЯЛ0.450.033 ТУ	Maximum commutated direct-current voltage	36 V
National standard	ГОСТ 16121-86	Actuating current	23 mA
Typical configuration	With two change-over contacts	Drop-out current	3 mA
Mounting method	THT (through-hole)	Switching frequency	NMT 7 Hz
*Overall dimensions LWH*	20х10х28mm	Climatic modification	B - all climate conditions
Number of outputs and contacts	8	Operating temperature range	-60°С to +85°С
Output length	5 mm	Relative humidity	98% at a temperature of +35°С
Case material	Metal	Package	Box
Nominal voltage	27 V	Country of origin	Russia
Voltage range	24 V to 30 V	Minimum order	1 unit
Coil resistance	600±60 Ω	Brand	OJSC "Irkutsk relay equipment factory"

Key Features

Net weight of one unit	13.96 g
Package	Plastic bag + box
Box dimensions	Minimum dimensions 12104cm
Box weight	Minimum weight 200g
Private Label Manufacturing	No
Minimum order	1 unit
The possible volume of supply	5,000 units per month
Delivery modes	Express courier, postal service, by sea, by truck
