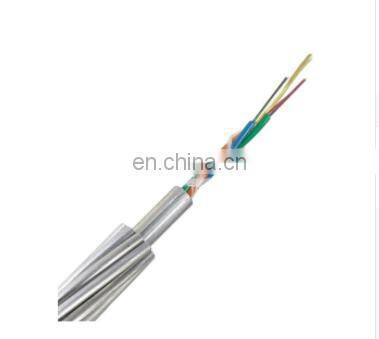

Free Sample Central Stainless Steel Tube 24 Core Stranded Stainless Steel Tube Structure Opgw Cable Manufacturer

Optical Fiber Composite Overhead Ground Wire OPGW cable

Central loose tube type

The fibers is placed loosely in a sealed and water resistant stainless steel tube filled with water blocking gel. This tube provides protection to the fiber during installation and operation under severe environmental conditions. Aluminium layer over the tube is optional. The stainless optical tube is located at the center of the cable protected by single or multiple layers of aluminium clad steel and aluminium annoy wires. The aluminium clad steel wires are shaped trapezoidally around the optical unit to provide compact construction. The metallic wires provide mechanical strength to withstand severe installation and operating conditions, while achieving conductivity to controltemperature rise during short circuit conditions.

Multi loose tube ty

Multiple loose tube type

The fibers is placed loosely in a sealed and water resistant stainless steel tube filled with water blocking gel. Two or three stainless steel optical tubes are helically stranded in the inner layer of a multiple-layer strandard cable. The multiple loose tube type is designed mostly for very high fiber count requirement over 48 with the maximum fiber count reaching 144. The multiple loose tube type can meet the requirement of huge cross and large current capacity.

Application

1.The Optical fiber composite ground wire [OPGW] is suitable for installation on new power lines with

double function of ground wire and communication. Especially for installation on normal voitage and

extra highvoltage power lines. OPGW can replace conventional ground wire of old power line with

increasing fiber communication function. They conduct short circuit current and provide lightning resistance.

2. OPGW cable is mainly used in 500KV, 220KV and 110KV lines, limited by power cut, security and other elements, mostly used in new lines. Its applications are:high pressure over 110kv, with a longer span (usually over 250M).

Features

1. Up to 144 fibers
2. Cable diameter and weight approximate with another ground wire. Less additional load to tower, high tensile strength.
3. Excellent stainless steel tube stranding technology make the fibers have good secondary excess length and allow the fibers, free movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
4. Optical fibers are protected by stainless steel tubes.
5. Excellent security, good bullet resist performance.
6. ACSW, AAW and SST stranded design provide wide range combination of electrical conductivity and mechanical tensile strength.

COMPANY IMFORMATION

Hunan Guanglian Photoelectricity Technologies Co., Ltd(GL technology) is a professional manufacturer of fiber optic cable. GL technology offers its customers a complete range of indoor & outdoor cables,including FTTH drop cables/ aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable, ADSS,OPGW and OPPC for power system transmission in China.

Over 2000.00km of fiber optic cables installed, with sold over the world more than 30 countries. GL technology have been used in various fields over the world. In GL technology, We supply a full system and providing fiber optic cable system solutions and technical assistance for you. Customers who choose the GL technology can be sure that their decision will lead to a successful experience.

Certification

FAQ

1.Are you the real manufacturer?

Us. We are the real manufacturer with 17 year’s history.

2.What’s  the MOQ?

Us. The MOQ of Fiber Optic cable is 1km.

3.What’s delivery time?

Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

4.How to Store the Optical Fiber Cable Properly?

Us.  Store the drum indoor before using, the drum should place sideways not on the end.

5. Can you supply customized products and logo?

Yes. We supply OEM service. You can send us your drawing.

6.What’s your payment terms?

Us. We accept T/T,L/C,Western Union,D/P etc.  10% in advance and 90% before shipment.
