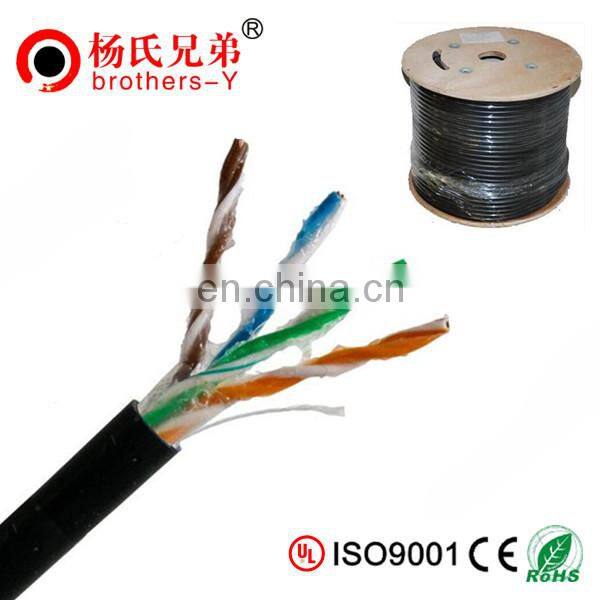

24AWG Water Proof UTP Cat5e Lan Cable Outdoor

24AWG water proof UTP cat5e Lan cable Outdoor

The specification of cable

Conductor:

• Material: solid bare copper
• Number of pairs: 4 pairs
• AWG: 24awg,26awg,28awg

Insualtion:

• Material: HDPE and FRPE
• Diameter: 0.924±0.005mm
• Average thickness: 0.212mm
• Minimum point thickness: 0.2095mm
• FILLING: petrolatum or without jelly filled

Sheath:

• Material: HDPE
• Nominal diameter: 5.8±0.2mm
• Average thickness: 1mm
• Minimum point thickness: 0.9mm
• shield:aluminum foil
• drain wire:CCA
• Operating temperature range: -20 to 75°C
• Minimum bend radius (install): 8xOD
• Flame test: CMR, CM, IEC60332-1
• Reference standard: TIA/EIA568B, IEC/ISO11801

The structure of the cable

The application of cable

-Computer network cabling project

- Broadband network communication

- Ethernet network

-Audio and data transmission

-10/100 Base-T4

-100Base-TX

-1000Base-T(Gigabit Ethernet)

The electrical charcteristics of cable

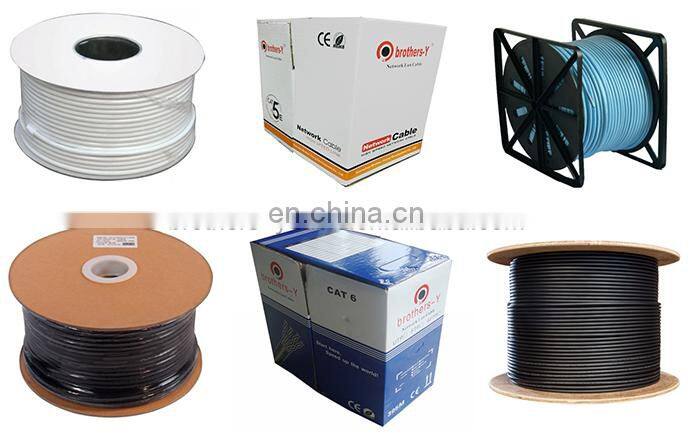

Packing &Shipping

Company information

Shenzhen Brother Young Development CO,.Ltd was founded in 2002 and located in Shenzhen, China, owning two factories covering an area of 150000 square meters.Our company enjoys a history of 15 years of making network cable,patch cord cable,multi-pairs telecommunication cable, telephone cable, patch cord, coaxial cable,fiber optic cable, power electric cable,HDMI Cable,USB cable,VGA cable and other relative network accessories.
