Home > Products > Micro coreless dc motor > 1215R 1515R 1715R 1718R 1722R 2225R 3265R 3653R 12mm 15mm 17mm 32mm 35mm 36mm 6v 12v 24v Coreless dc Motor for Smart Robot

1215R 1515R 1715R 1718R 1722R 2225R 3265R 3653R 12mm 15mm 17mm 32mm 35mm 36mm 6v 12v 24v Coreless dc Motor for Smart Robot

FOB Price

US$ 0.36 - 5.5 / Piece

1 Piece(Min. Order)

Port shenzhen/hongkong
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	kegumotor	Place of Origin	China
Model Number	KG-0408	Type	Gear Motor
Certification	CCC, CE, ROHS	Torque	5g.cm
Usage	Boat, Car, Electric Bicycle, Fan, Home Appliance	Construction	Permanent Magnet
Efficiency	IE 1	Protect Feature	Explosion-proof
Voltage(V)	3	Output Power	0.01
Continuous Current(A)	0.01	Speed(RPM)	20000
Commutation	Brush

Product Description

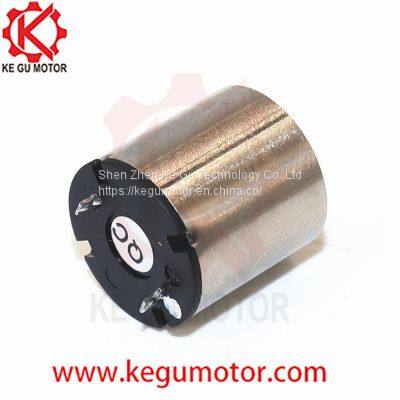

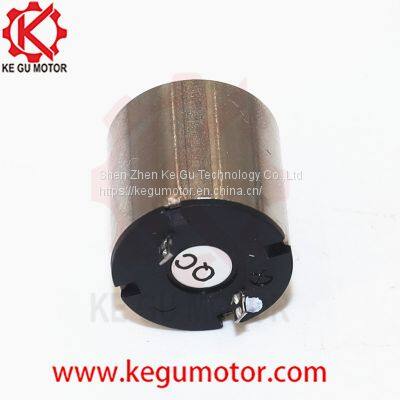

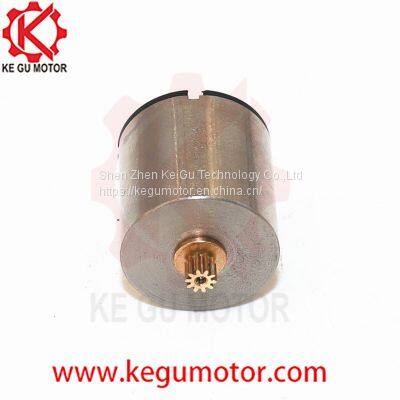

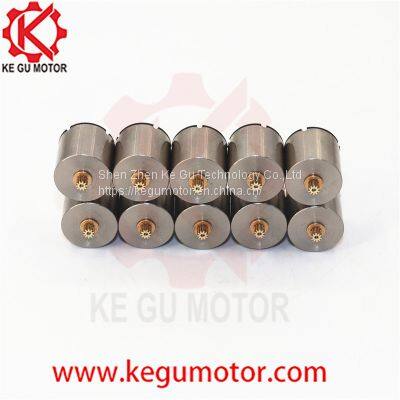

15mm daimeter ,15mm length 6v 12V coreless dc Micro Motor for toy ,Output shaft length: 5mm. Motor length: 15.2mm. Motor weight: 21. Coreless motor, little weight, small size, and efficiency. Gear Motor Stepper Motor Coreless Motor Brushless Motor ,steel Shaft Strong Magnet,15MM CORELESS MOTOR FOR ROTARY TATTOO MACHINE 10000RPM 12V DC MOTOR

Volt	5v
No Load Speed	25500rpm
Rated Speed	23000rpm
Rated Torque	5g.cm
Application	Robot , door lock , toy, cabinet lock, home appliance,vacuum cleaner

SPECIFICATION:

Voltage: DC 5V
No load speed: 25500±10%rpm
No load current: 0.1A
Diameter 15mm, length 15.2mm, shaft dia 1.0mm
Material: plastic gear and metal DC motor
Weight: 21g Approx
Application:Robot, Bike lock, Home Appliance, Door Lock etc
Customized,Adjust the performance at free(voltage, speed, torque)

Kegu Motor Provide intelligent lock solution

Special imported steel for gear material, minimum modulus (0.15 mode), ultra-low noise, high reliability.The motor adopts high
anti-oxidation commutator and brush material, which has
the characteristics of smooth operation, long life and small vibration.
* High Torque

* Low Noise

* Longer life time up to 200,000 times unlock

Working life	100 Hours	Voltage	DC 6V
No-load Current	0.01A	No-load Speed	21900 rpm
Load Current	0.02A	Load Speed	19068 rpm
Power	0.01 w	Load Torque	21 g.cm
Stall Current	0.09A	sall Torque	165g.cm
Warranty	1 year	MOQ	1000 pcs
Model Number	1718R 17mm x 18 mm Mini CORELESS Motor	Price	USD 0.7-0.9
Application	mobile phone	Port	Shenzhen

Detailed Images

Size Information

Drawing of  15mm mini BLDC coreless motor,15mm Coreless Motor for Rotary Tattoo Machine 10000rpm 12V DC Motor
 Structure: Coreless Rotor +Permanent Magnet Stator+ metal brushes
 Size: Dia15*L15.2mm
 Shaft Dia: 1.0mm
 Certification: ISO9001, ROHS
 Endplay: 0.35mm Max
 Rotation: CW/CCW
 Voltage: 12 V dc .
 No load: 10000rpm 30mA
 Rated: 3.4mNm 0.3A 7600RPM
Stall: 14mNm
Shorter version, gearbox available
Long life, quiet, low vibration with high effieiceny
Ideal for tatoo gun, medical equipment

Custom specification is also available for us.

15mm Coreless Motor, 15mm Hollow Cup Motor, Coreless Motor for Tattoo Machine,Hollow Cup Motor for Tattoo Machine,Tatto Machine
Motor, Tatto Machine Coreless Motor, Tatto Machine Hollow Cup Motor,Coreless Motor Manufacturer, Coreless Motor Factory,Coreless
Motor China Shenzhen Manufacturer Factory,Customized Motor,Custom Motor,Custom Coreless Motor

1515R micor brush coreless dc motor Brand Kegumotor
Item 15mm mini BLDC vibration motor Location Shenzhen Model 1515r Load current 98mA Load power 1.2w Load volt
Load Torque 5G.cm Certificate ROHS/ISO9001 Application Blood pressure meter
Volt range 3.0-12V, no load speed :25500rpm
1515r coreless dc motor outline

Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm

Packing&Shipping

After Sales Service

The reliability and stability of the product is an important index to evaluate the technical level of the product.In order to accurately analyze, evaluate and verify the performance of the product.

So Kegu motor will reply customer in 2 days after receive
complain from customer. Engineer team analyze the reasons according to customer complain and evaluate manufacturing process.After confirm the motor issue,customer can return defect motor, we will ship out all motors after repair motors.

Company Introduction

Shen Zhen Ke Gu Technology Co.,Ltd, it is a high-tech private enterprise integrating research, development, production and sales of various types of miniature DC motors, precision gearbox, micro transmission of system. We also provide the drive solutions for customers from design, components manufacturing and assembly.The company strictly implements the IS9001:2015 management system.
Products are widely used in automotive,communications equipment,smart home,medical equipment, intelligent security,household appliances,western kitchen equipment,machinery and electronics and other high-end transmission structures,products are exported to more than 50 countries and regions at home and abroad.

Our Services & Strength

R&D team is committed to designing and developing micro drive systems for many years and providing drive system solutions for customers.Provide customized, design, development, production and assembly services of micro gear transmission system.

Certifications

FAQ

Q:1.What kind of motors you can provide?A:Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm

Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your
detailed requirements and annual quantity, we'll see what offer we can provide.

Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 25-40 days and this time can be shorter or longer based on different model, period and quantity.

Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.

Q:5. Can I get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
