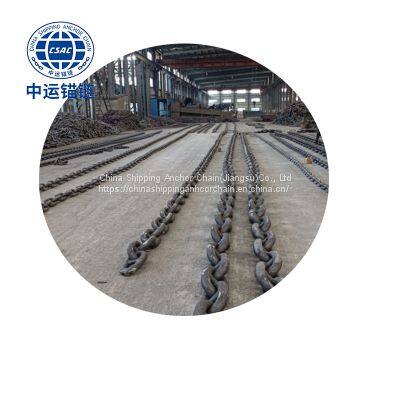

111mm Black Painted floating wind power platform studless link anchor chain

FOB Price

1000 - 1500 / Ton

1 Ton(Min.Order)

Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

   1.  Variety: Grade1, Grade 2,Grade 3,ORQ,R3,R3S,R4stud link anchor chain; studless anchor chain; buoy chain,D-type anchorshackle; Hatch-cover chain,lifting chain,kiln chain and others; DIN Standard chain; Special chain as per your requirments and their accessories.
    2. MATERIAL GRADE: ANCHOR CHAIN:GRADE 2/U2, GRADE 3/U3,MOORING CHAIN:ORQ,R3,R3S
    3.Material:20Mn (CM490),30Mn(CM690)
    4.Length: 25m or 27.5m or as per your request.
    5. FLASH BUT WELED
    6.Surface: Self Color, Black Painted, Hot Dip Galvanized
    7.Relevant Certificates: ABS, BV, CCS, DNV, KR, LR, GL, NK and RINA etc.
    8. Grade U2 / U3 from 12.5mm to 162mm; Grade ORQ / R3 /R3S / R4 from 58mm to 162mm
    9. accessories: kenter shackle, joining shackle. anchor shackle,pear type joining shackle,buoy shackle type A, Swivel shackle,pear type link, trangle plate.
    10.Difference between Stud link chain and studless chain:Originally studs were added to the chain to stiffen the links
    preventing them from severely deforming when overloaded. They have the added advantage in that they prevent the chain from knotting up when twisted, thus avoiding problems when chain is retrieved with a windlass.
    11.Packing: Wire Rope Bundled, Ton Bag, Wooden Box, as required
   Using range:a.Marine chain b.Fishing &boat chain;c.Mine chain;d.Cement lifting round chain.
   12.  Shipping port: Qingdao port/Shanghai port

Type	Studlink Chain,Studless Chain
Accessories	Kenter Shackle,End Shackle,Swivel Group,Type A&B Swivel Anchor，Buoy Shackle，Pear Shackle,Triangle Plate,Forlock Shackle
Size	From 22mm to 162mm
Standard	GB/T 549-2017,
Certification	ISO9001, LR, ABS, DNV, GL, BV, NK, KR, CCS, RINA, CCS, RMRS...
Material	CM490,CM690,Special Quality Steel
Surface	Black Painted or Galvanised
