Product Description

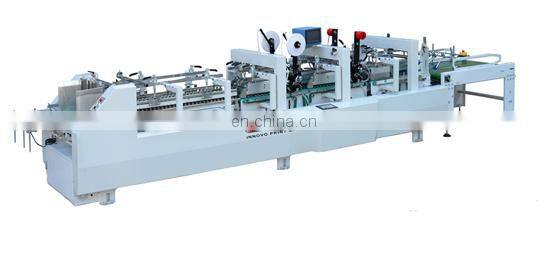

YSD series adhesive and tear tape machine
Specification
The machine can be sure for various boxes;
Straight line boxes, lock bottom, Mini boxes, medicine boxes, box-in -box, CD boxes, potato chips boxes,4 corners and 6 corners;
speed:120m/min;
Character
Feeder
Two feeders are optional, reduce cost and save time;
Re-correction
Make sure precision and perfect adhesive tapes;
Folding unit
Perfect adhesive and tear tape.
Adhesive and tear tape header
Fold to boxes perfectly.
Main electrical components and brand
|
Name |
Made in |
Brand |
|
Feeding belts |
Japan |
NITTA |
|
Folding belts |
Japan |
NITTA |
|
Synchronous belts |
Germany |
Contitech |
|
Inverter |
France |
Schneider |
|
Infinite speed regulator |
Japan |
SAKAI |
|
PLC |
Taiwan |
Yonghong |
|
touch screen |
Taiwan |
FATEK |
|
Main motor |
Taiwan |
Dongyuan |
|
Motor in conveyor |
Taiwan |
AIMOXIN |
|
sensor |
taiwan |
Yangming |
|
Power supply switch |
France |
Schneider |
|
Electrical components |
France |
Schneider |
|
Electrical components |
JAPAN |
IDEC |

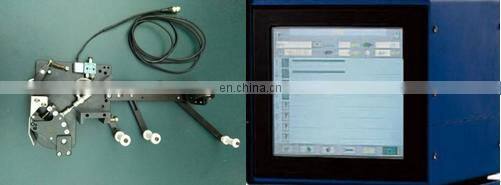

Tape system
|
name |
quantity |
|
controller |
1 pc |
|
Double side adhesive and tear tape header |
4 pcs |
|
Sensor eye |
4 pcs |
|
Installation shelf |
4 sets |
Specification
|
1 tape width 3mm-40mm |
|
2 tape cycle diameter 90mm-400mm |
|
3 Max. length every time 30mm-9000mm |
|
4 speed 80m-min |
|
5 power 15w |
|
6 weight 7.5KG |
|
|

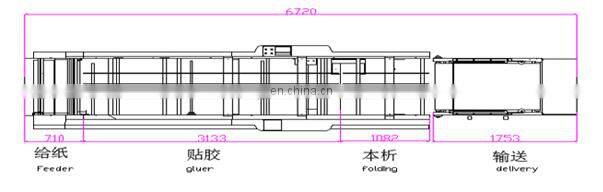

Parameter
YSD 800 adhesive and tear tape machine
|
Materials |
Size and weight |
||
|
cardboard |
Max. 800 gsm |
Length |
6.5m |
|
corrugated |
N, E & F |
width |
1.4m |
|
capacity |
height |
1.5m |
|
|
Speed |
120m/min |
weight |
3.5tons |
|
inch speed |
20 m/min |
installation |
scheme |
|
folding thickness |
20 mm |
voltage |
9.5KW; |
|
Max. Width |
800mm |
air compressor |
6bar |
|
|
|
capacity of compressor |
10 m3/h |
1. The packing is confirm to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
