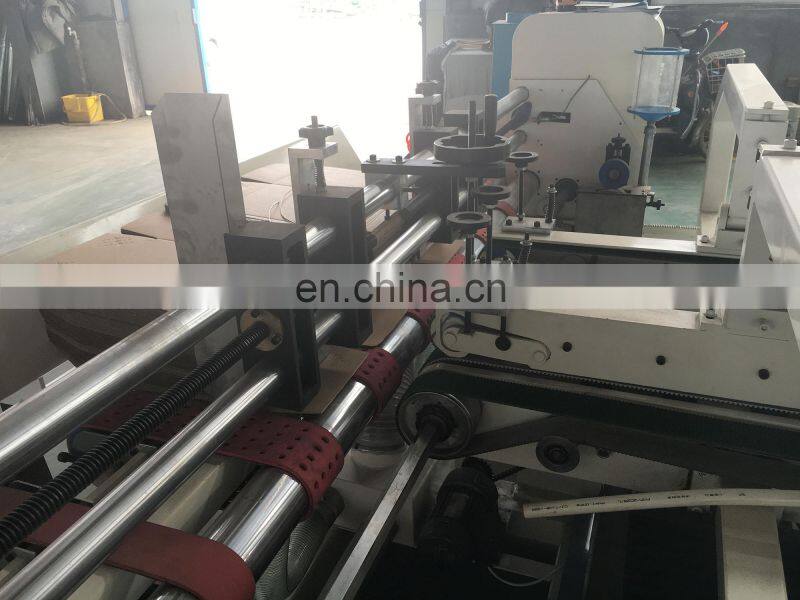

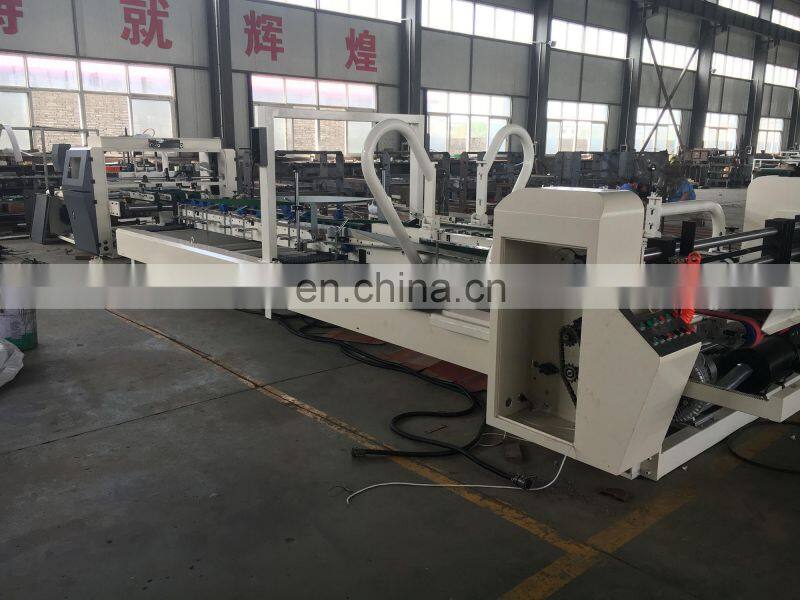

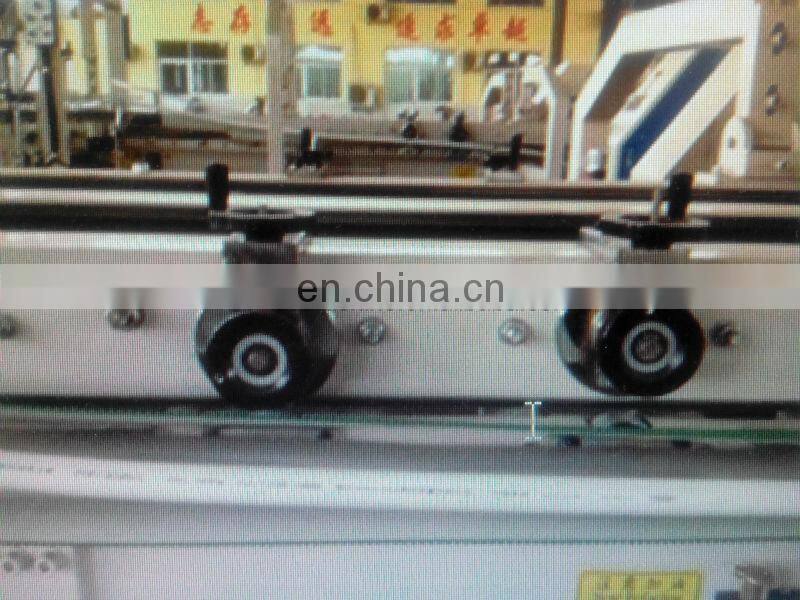

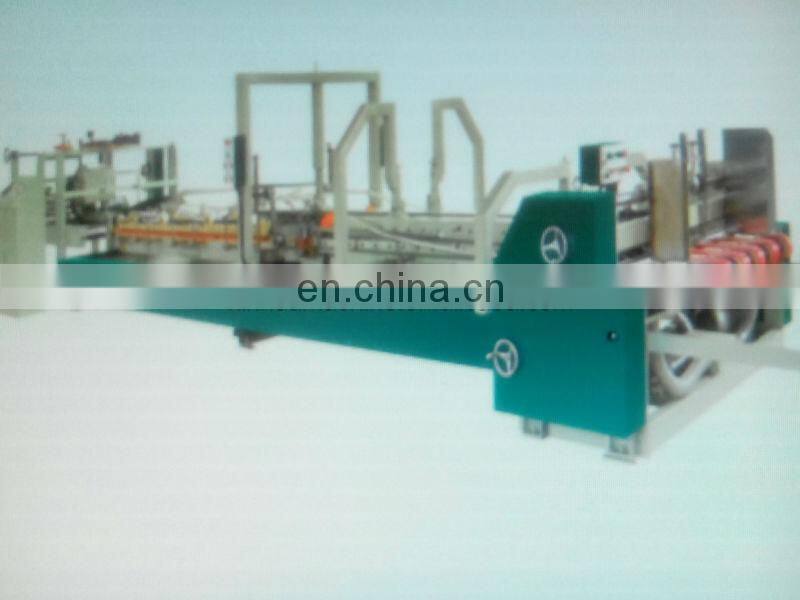

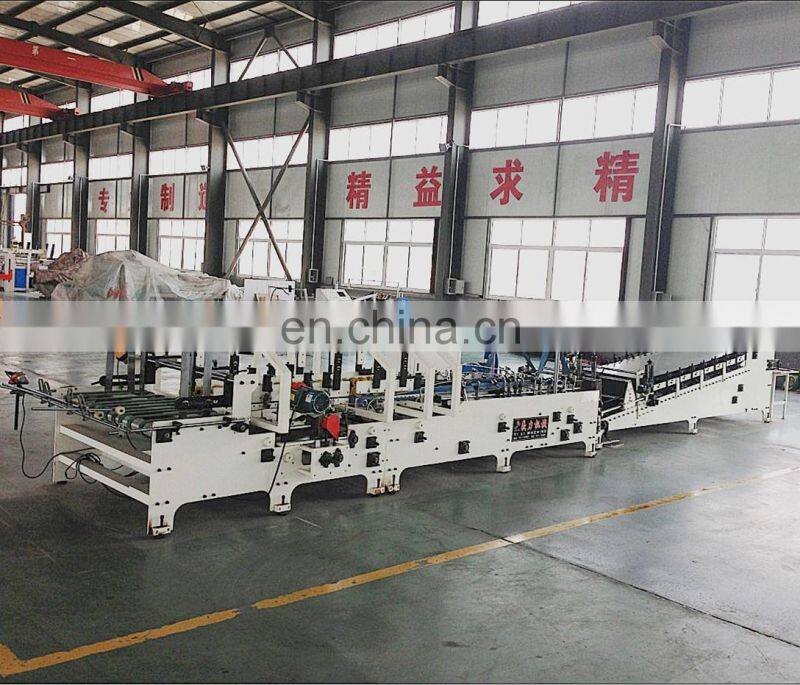

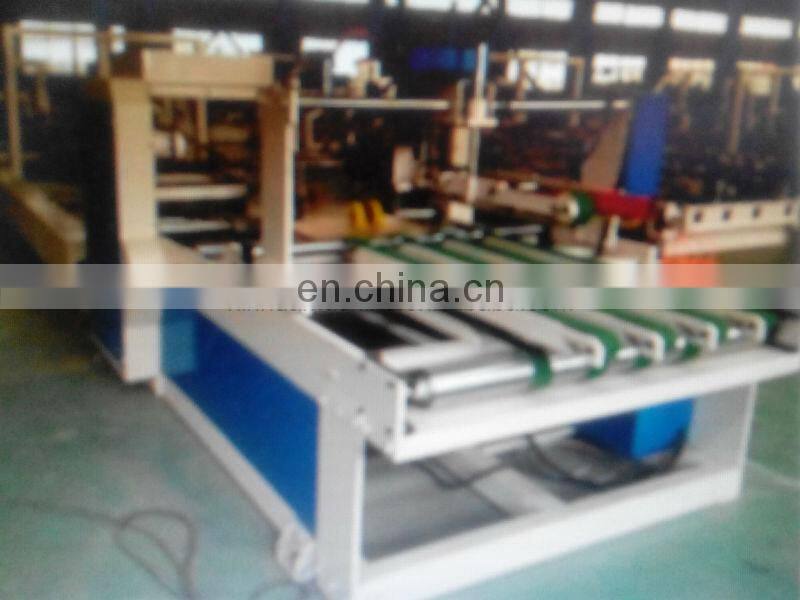

Automatic Folder Gluer / Folding Gluing Carton Boxs Machine

            Please Contact me to get video , quotation and more information.

The product model parameters: (Total quality 6- 7 tons)

     Sticky box machine main electrical introduction

Introduction of the machine

  full-automatic sticky box washer, by feeding department, gelatinize folding department and count accumulation of three parts, digital display speed, microcomputer attenuation is simple and convenient, quick and reliable precise control mode, automatic feeding, automatic glue fold, automatic counting, automatic DuiMa output, average sticky box speed 220 zhang/min, highest speed 260 zhang/min, high efficient energy-saving environmental protection is our supreme pursuit.

                                   Fuction and characteristic

1. automatic finish top fold twists and at the same time, you can finish fluctuation two parts tape stickup, province viz.

2. Applicable carton range, different size carton adjustment is simple and direct.

3. The machine running smooth and reliable packing results firmly beautiful.

4. The equipment is simple and easy to maintenance.

5. Automatically correct the carton straight Angle. 180 calibration, effective corrective cut forks and knives, tail phenomenon.

                                   The product structure

Simple touch screen operation, the machine adopts PLC input computer programmable controller, digital operation, touch screen input data, which can realize non-pole change data, production speed and so on, the automatic feeding, automatic folding, automatic counting, automatic DuiMa output, sticky box speed 150 zhang/minutes, highest speed 220 zhang/minutes.

                                        The paper department

1. Use high-quality steel production of cardboard height adjusting structure, quick adjustment of different specifications of the size of the high and the length of the cardboard box.

2. For paper department after the wind belt choose materials to make high-tech, tension layer seamless docking ring belt, security machinery in use do not have trouble back at home.

3. For paper department after the wind motor, main motor rotation are chosen from Taiwan, the high quality, the high stability performance motor.

4. Choose high-grade electromagnetic clutch and electromagnetic brake system, make for paper department can be the single or continuous operation, effective control of the waste of cardboard specifications adjustment and output for accuracy of cardboard.

                                      Gelatinize folding department:

1. The motor selection, import the brand, stable performance, convenient speed, no noise pollution.

2. Folding department USES imported high friction, super wear-resistant materials to make special the seamless docking annular conveyor belt, accurate to finish the automatic folding cardboard.

3. The glue with high quality stainless steel coated roller, gelatinize, provincial glue and efficiency.

4. Folding department equipped with double ways for creasing correction device, accurate effectively correct cardboard pit the deviation of the line, so that the whole carton completed the most accurate folding.

                            Correction DuiMa output department

Automatic correction, DuiMa output department with automatic counting, accumulation tidy, DuiMa output can be set up according to the customer demand, how much of the finished product box output and automatic calibration price scissors is not standard such as forced the cartons forming.

                                                Fittings choose

1. The machine choose 380 V, power 8.0 KW, energy saving, high efficiency.

2. PLC computer components, frequency conversion components, electrical components are chosen for high quality imported components.

3. Choose imported Italian belt loop seamless docking belt.

4. Bearing choose the international famous brand TR bearing.

5. Spiral wire rod, ball screw, nut are chosen for 45 # steel, high quality and quenching process processing.

6. Wire mother adopts the high quality copper (ZQSn10-1) production, wear-resisting durable, long service life, high driving accuracy.

7. Copper set (ZQSn6-6-3) cooperate, drops of oil lubrication, wear-resisting durable.
