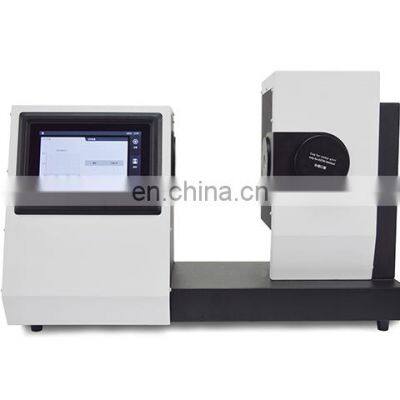

Liyi ASTM D1003 D1044,ISO 13468 / ISO 14782 Plastic Film Haze Meter Light Transmittance Tester
Products Description
It is designed for clarity, color, haze spectral transmittance and total transmittance measurement of transparent and translucent materials such as plastic sheets, films, glass, LCD panel and touch screen, etc.
Product Paramenters
Model | LY-1000 | ||||
Measuring Range | 0-100% (Haze, transmittance) | Spectral Response | CIE The spectrum functionY/V(λ) | ||
Wavelength Range | 400-700nm | Wavelength Interval | 10nm | ||
Geometry | 0/d | Illumination Area and Aperture | 16.5mm/21mm | ||
Resolution | 0.01 unit | Sample Size | thickness≤145mm | ||
Display | 7 Inches Touch Screen | Data Storage | 20,000 values | ||
Working Temperature | 0~45℃, Relative humidity 80% or below (at 35 ° C), no condensation | Storage Temperature | -25 ℃ ~ 55 ℃, relative humidity 80% or below (at 35 ℃), no condensation | ||
Instrument Size | 598mmX247mmX366mm (length X width X height) | Standard | PC management software (Color QC) | ||
Repeatability | haze＜10%, repeatability≤0.05; haze≥10%, repeatability≤0.1%; Transmittance≤0.1% | ||||
Light source | Haze / Transmittance: CIE-A、CIE-C、CIE-D65 Chromaticity index: A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CMF, U30, DLF, NBF, TL83, TL84 | ||||
Standards | ASTM D1003/D1044,ISO13468/ISO14782, JIS K 7105,JIS K 7361,JIS K 7136, CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,JIS Z8722 Condition c standard,GB/T 2410-2008 | ||||
Parameters | Haze (HAZE),Transmittance (T),Spectral transmittance, Clarity(C%), CIE Lab, LCh, CIE Luv, XYZ, Yxy, , Hunter Lab Munsell MI,CMYK, Whiteness WI(ASTM E313-00,ASTM E313-73, CIE/ISO, Hunter, Taube Berger Stensby), Yellow Index YI(ASTM D1925, ASTM E313-00, ASTM E313-73), Tint(ASTM E313-00), Heterochromatic index Milm, APHA, Pt-Co(Index of platinum cobalt), Gardner, Color difference (ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00) | ||||
