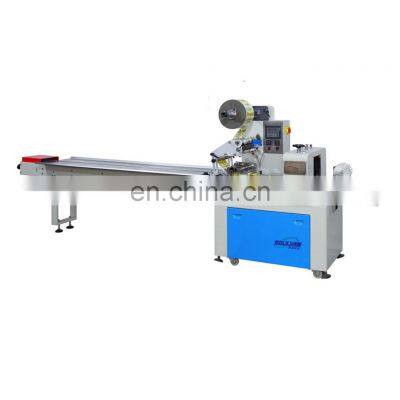

KD-350 High speed automatic pillow type bread packing machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
HY-330A High-speed full-automatic warm paste infusion warmer packaging machine
-
KD-260B Automatic multi-function surgical face mask packing machine Automatic N95 face mask packing machine
-
SOULYAM BRAND Bag Fresh or Dry Fruit Vegetables Carrot Pouch Horizontal Packing Packaging Machine
-
Hot Sell SY-680 Automatic multifunction Vegetable Packing Machine
-
SY-680 Bag Fresh Fruit Vegetable Potato Tomato Pouch Horizontal Packing Packaging Machine
-
High Efficiency Pillow Type Flow Food Packaging Machinery Lettuce Fruit And Vegetable Packing Machine
Product Description
Specification
Model | KD-260 | KD-350 | KD-450 | KD-590 | KD-720 | ||||
Max Film Width | 260mm | 350mm | 450mm | 590mm | 720mm | ||||
Product Length | 40-330mm | 40-400mm | 40-450mm | 40-500mm | 40-600mm | ||||
Product Width | 30-110mm | 40-160mm | 50-215mm | 60-280mm | 60-320mm | ||||
Product Height | 50mm | 80mm | 80mm | 120mm | 150mm | ||||
Intensity of Seal | >15N/mm² | ||||||||
Packing Speed | 40-250 packages/minute | ||||||||
Packing Material | BOPP/PE, CPP/PE, CPP/PA, BOPP, CPP Anti-Fog Film, OPP Film, Color Film, and so on. | ||||||||
Thickness of Film | 0.03-0.06mm | ||||||||
Power | 2.4KW 220V | 2.4KW 220V | 2.4KW 220V | 2.8KW 220V | 3.6KW 220V | ||||
Overall Dimension(mm) | 4100x950x1500 | 4100x1000x1500 | 4100x1050x1500 | 5100x1050x1700 | 5100x1300x1700 | ||||
Weight | 550KGS | 600KGS | 680KGS | 800KGS | 1000KGS | ||||
Main Features
1). 3 Servo Motor control, flexible bag length cutting. Save time and film.
2). 7 inch touch screen, easy operation and multiple language for choice.
3). Smart PLC system, machine performance is stable, convenient for change parameter
4). Self diagnosis failure function, machine error can be clearly displayed in the touch screen.
5). Separate PID temperature controller, suitable for various packing materials
6). High sensitivity optical photocell for eye mark tracking, digital input for cutting position.
7). Position stop function, no adhesive and no waste of membrane and protect cutter.
8). Simple driving system, stable performance and convenient maintenance.
9). According to different product, the input conveyor can use pusher, belt or film for transportation.
10). High sensitive sensor to track the color mark, so the position of sealing and cutting will be more accuracy.
11).Automatic Detect the products, if no product feeding into the film, the machine will stop, no empty bag and no cutting the products.
12). No limit for product length
2). 7 inch touch screen, easy operation and multiple language for choice.
3). Smart PLC system, machine performance is stable, convenient for change parameter
4). Self diagnosis failure function, machine error can be clearly displayed in the touch screen.
5). Separate PID temperature controller, suitable for various packing materials
6). High sensitivity optical photocell for eye mark tracking, digital input for cutting position.
7). Position stop function, no adhesive and no waste of membrane and protect cutter.
8). Simple driving system, stable performance and convenient maintenance.
9). According to different product, the input conveyor can use pusher, belt or film for transportation.
10). High sensitive sensor to track the color mark, so the position of sealing and cutting will be more accuracy.
11).Automatic Detect the products, if no product feeding into the film, the machine will stop, no empty bag and no cutting the products.
12). No limit for product length
Product Description
Touch Screen
Easy Control Touch Screen , it can be set up the relevant language according to customer’s requirement. Simple page, easy operation, automatic fault diagnosis function, so the fault can be seen and understood more clearly, easier to maintenance. Memory function, save debugging time for packing different products and save the packing film.
Ink Wheel Printer
It can printing production date and batch number
Bag Former
Adjustable bag former suitable for packing different width of products
Strong Film Roll Holder
It make sure the film feeding in steady, max diameter of film roll can be 35-45cm
Cursor Position Sensor
Cursor position Sensor Make sure bag forming more accurate
Verticle Back Sealing
Separate PID temperature controller, good sealing performance, suitable for various packing materials
Anti Empty Bag Sensor
Panasonic Sensor: Prevent Empty Bag Forming: No product feeding no bag forming. Save the packing films and production cost.
Horizontal Sealing Blade
Single/double/triple blade can be optional, Prevent cutting product, the Blade will reversing rotation and stop once its cutting the product
Exhaust Belt
It can packing flat products(face mask/rubber gloves) almost no air inside of bag
3 Servo Drive System
Compared with the general frequency conversion control model, reduces the adjustment of mechanical transmission parts, and improves the accuracy of the motion.
Strong Conveyor Structure
Good Quality Buttons,Easy connect with power.
Simple Driving System
Reliable working, convenient maintenance.
Nitrogen Filling Connector
Why filling Nitrogen: It can effectively prevent food oxidation, mildew, moth-eaten, corruption, can achieve
moisture-proof,quality preservation, preservation, prolong the storage period of food.
moisture-proof,quality preservation, preservation, prolong the storage period of food.
Production Machines In Bulk
Make sure we delivery plenty of machines to customers in time
Sample Display
Bag Type Display
Company Profile
Soulyam Machinery-Top manufacturer of packaging Machines in China,Focus on packaging Machines research and development for more than 23 years, provide one-stop customized packaging machines solution for customers
4).Quality control strict testing
Perfect quality inspection, inspection of the whole manufacturing process, control the quality of packaging equipment from the source and production details.
Establish a quality control management system and process for machines assemble, debugging, acceptance and delivery.
We support 3D Showroom / Video Call to see our real factory and real machines
1).Own Large Scale Spare Parts Processing Workshop, with many Advanced CNC machines, Lathes, Wire cutting, grinding machines & milling machines, which ensure our spare parts long life, high precision and low noise.
2).More than 20,000 square meters of large-scales standard workshops, with more than 200 experienced production technicians,large-scale production, which ensure delivery of machines at fast time.
3).R& D design, customized on demand
Has obtained a number of national patent technologies. Set up a R&D and design team of more than 60 people, and customize the machines according to the customer's packaging materials and usage scenarios.
2).More than 20,000 square meters of large-scales standard workshops, with more than 200 experienced production technicians,large-scale production, which ensure delivery of machines at fast time.
3).R& D design, customized on demand
Has obtained a number of national patent technologies. Set up a R&D and design team of more than 60 people, and customize the machines according to the customer's packaging materials and usage scenarios.
4).Quality control strict testing
Perfect quality inspection, inspection of the whole manufacturing process, control the quality of packaging equipment from the source and production details.
Establish a quality control management system and process for machines assemble, debugging, acceptance and delivery.
5).Has passed ISO9001/CE/TUV/SGS Certification
We support 3D Showroom / Video Call to see our real factory and real machines
Why Choose Us
Advantages:
1).23 years of packaging machines R&D experience
2).More than 60 professional engineer and Service teams
3).More than 200 professional staff teams
4).Specialize in more than 60 kinds of packing machines
2).More than 60 professional engineer and Service teams
3).More than 200 professional staff teams
4).Specialize in more than 60 kinds of packing machines
5).Annual output of 3,000 sets of machines
6).We promise 100% REFUND if any unsatisfied with the machines
6).We promise 100% REFUND if any unsatisfied with the machines
The Face Behind The Machine
Mr Zhu
Director Of Production Department
Dr. Ye
Research And Development Department(R&D)
Mr Ye
The 1st Workshop Manager
Mr Ye
The 2nd Workshop Manager
Mr Chen
The 3rd Workshop Manager
Mr Zhou
The 4th Workshop Manager
Mr Ren
The 1st Quality Inspection Department
Mr Tang
The 2nd Quality Inspection Department
Mr Ye
Delivery Department Manager
Good Quality Wooden Box For Machines
Loading Into Container
Certifications
Always Keep In Touch With Our Customers
Electronic Parts Brands We Use For Our Machines
1). First time buy machines from your company, how can I believe that you will send the machines after I pay the money?
We are verified company by Alibaba company, we support and recommend you to pay money to us by Alibaba Trade Assurance. It can guarantee your money, and guarantee your machine's on-time delivery and machine quality.
2).How about Installation Services?
We will provide the user manual and videos to support for installation, debugging, operation of the machine, it will show you how to use this machine well.Our engineers are available do service for you, the service charge, include: service fee USD100/day, VISA fee, round-trip ticket, hotel, food should be buyer's side.
3).How about Guarantee of Machine ?
The machine with 2 year warranty for core parts, the parts can be replaced for free within 2 years if broken(not including man made)
4).Do you also offer the wrapping film?
Yes, we can offer you the plastic roll film/nonwoven fabric, we have a long term cooperation supplier for raw material and the price is competitive.
5).If we have very special request for the machines, could you help me to do the design?
yes, our experienced mechanical designer provide customized-design of machines
We are verified company by Alibaba company, we support and recommend you to pay money to us by Alibaba Trade Assurance. It can guarantee your money, and guarantee your machine's on-time delivery and machine quality.
2).How about Installation Services?
We will provide the user manual and videos to support for installation, debugging, operation of the machine, it will show you how to use this machine well.Our engineers are available do service for you, the service charge, include: service fee USD100/day, VISA fee, round-trip ticket, hotel, food should be buyer's side.
3).How about Guarantee of Machine ?
The machine with 2 year warranty for core parts, the parts can be replaced for free within 2 years if broken(not including man made)
4).Do you also offer the wrapping film?
Yes, we can offer you the plastic roll film/nonwoven fabric, we have a long term cooperation supplier for raw material and the price is competitive.
5).If we have very special request for the machines, could you help me to do the design?
yes, our experienced mechanical designer provide customized-design of machines
6). Are you offer competitive price？
Our price is 10% lower than our competitor, because we have large scale spare parts processing center by ourself, it can support we produce our machines in bulk, so the cost of machines will be lower than other companies
Our price is 10% lower than our competitor, because we have large scale spare parts processing center by ourself, it can support we produce our machines in bulk, so the cost of machines will be lower than other companies
7). How about the quality of your machine?
We produce machines according to national and international standard. We have ISO9001,CE & TUV certification. When the machine is ready, our Quality Inspection Department will inspect it and make sure every part is no any problem. We also will take some test videos or photos for every machine before we delivery to our customers. The customer also can ask third party to come to our factory to check the machines.
We produce machines according to national and international standard. We have ISO9001,CE & TUV certification. When the machine is ready, our Quality Inspection Department will inspect it and make sure every part is no any problem. We also will take some test videos or photos for every machine before we delivery to our customers. The customer also can ask third party to come to our factory to check the machines.
8).How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1.What kind of product you would like to pack?
2..The bag/sachet/pouch size of you need for the product packing ( the length, width, height).
Tell us about your product details and packing requirements.
1.What kind of product you would like to pack?
2..The bag/sachet/pouch size of you need for the product packing ( the length, width, height).
9). Will you provide the delivery service?
Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your
reference before delivery.
10).Are you a real factory/manufacturer?
Of course. Our factory is verified by Alibaba company. We warmly welcome you to visit us and free to pick you up form hotel/ local airport. If you don't have time? We can make video call with you and show you our real factory and machines
11).Can you explain me the whole transaction progress ?
1. Sign the Contact/order on alibaba we have trade assurance.
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6. Arrange the balance payment before shipment.
12). Why we should choose your company?
We are professional in packing machines over 23 years, and we provide better after-sales service. We guarantee no risk for our deal. We are top packaging machines Manufacturer in China. We have more than 200 staffs. Output more than 3,000 set machines per year. Our company has passed ISO / CE certificates /TUV certificates.
Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your
reference before delivery.
10).Are you a real factory/manufacturer?
Of course. Our factory is verified by Alibaba company. We warmly welcome you to visit us and free to pick you up form hotel/ local airport. If you don't have time? We can make video call with you and show you our real factory and machines
11).Can you explain me the whole transaction progress ?
1. Sign the Contact/order on alibaba we have trade assurance.
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6. Arrange the balance payment before shipment.
12). Why we should choose your company?
We are professional in packing machines over 23 years, and we provide better after-sales service. We guarantee no risk for our deal. We are top packaging machines Manufacturer in China. We have more than 200 staffs. Output more than 3,000 set machines per year. Our company has passed ISO / CE certificates /TUV certificates.
Need a One-stop service consultant for packaging machines?
Write to US Now !
We have great Answers for you!
Contact Us
- Zhejiang Soulyam Machinery Co., Ltd.
Product Categories
New Products
-
KD-260 China Manufacturer Automatic Medical Syringe Needle Holder Packing Machine
-
KD-260 Automatic Horizontal Biscuits / Bread / Snake Food Pillow Packing Machine
-
KD-350B Wenzhou Automatic Horizontal Hotel Soap Packaging Machine Machinery & Hardware Pouch Food Filling Paper Sealing Wrapping
-
KD-350 Automatic Horizontal Biscuits / Bread / Snake Food Pillow Packing Machine
-
Hot Sale Automatic High Speed Adhesive Portable Foot Warmer/Adhesive Knee Warm Pad/ Heat Pack Making Machine
-
Hot Sell SY-680 high good quality Automatic multifunction Vegetable Packing Machine
-
KD-260A Automatic Red Dates /Candied Fruit/ Betel Pillow Type Packaging Machinery
-
KD-260B Automatic Mask Packing Machine / kn95/n95/Disposable mask packing machine
-
KD-350B Factory Direct Disposable Plastic Fork Spoon Knife Napkin Packaging Machine Manufacturer
-
Automatic Medical Syringe Needle Holder Packing Machine
-
KD-350B Automatic Medical mitten Packing Machine Medical Mask Packaging Machine
-
KD-260B Automatic Horizontal Spoon Sachet Packing Machine,Price Disposable Tableware Packing Machine
-
KD-350B Factory Direct Automatic Disposable Towel Pillow Type Packaging Machine Manufacturer
-
KD-260B Automatic Horizontal Pouch Pillow Packing Machine For Socket Switch /Clean Ball/Warm Paste
-
KD-260B Automatic Hotel Toothbrush/Hotel Comb/ Hotel Soap Packaging Machine
-
SY800W Automatic Foot Patch/Warm Heat Patches Packing Machine
-
SY800W High Speed Herbal Material Body Warmer Patch,Body Heat Patch Four-side Sealing Packing Machine
-
SY800W High Speed Reciprocating Detox Patch /Sanitary Napkin Four-side Sealing Packing Machine
-
SY800W Hot Selling Gel Baby Fever Ice Cooling Patch Four Side Sealing Machine
-
SY800W Automatic High Speed Plaster/Antipyretic Paste/ Sanitary Napkin Four-side Sealing Packing Machine
-
SY800W High Speed Automatic Plaster Four Side Sealing Packing Machine
-
SY800W Factory Sale Automatic Medical Transparent Dressing Patch 4 Side Sealing Machine
-
SY800W China Automatic 4 Side Seal Sanitary Napkin Packing Machine
-
SY800W Factory Sale Automatic Disposable Wet Napkin Four Side Sealing Machine
Popular Searches
- Scrap Iron Baler
- Cutter Dispenser
- baling presses
- Wipe Packing Machine
- packer
- cassava chips dryer
- Case Packer
- Box Cartoning Machine
- Packaging Film Machine
- Fold Packing Machine
- resealable bag machine
- cotton packing machine
- masala machine
- flow forming machine
- grain packer
- sachet packer
- Scrap Paper Baler
- pressure spraying dryer
- packers
- Scraper Dryer
- Machine Stitcher
- Facial Mask Box Pack Machine
- box packer
- tea bag packer
- hot blast furnace
- pipe air dryer
- air drum
- Bottle Cartoning Machine
- double cylinder dryer
- Drum Scraper Dryer
Recommended Products
- Egg shaped toys Automatic horizontal cartoning Machine Equipped with steel stamp coding device
- Automatic folding, sealing and strapping machine
- Dry ice block packing machine for wrapping 500g slice 1kg slab
- Particle packaging machine counting packaging machine
- High Accuracy Linear Weigher 4 Head Linear Weigher Machine Automatic weighing and dispensing machine
- High Accuracy Linear Weigher 4 Head Linear Weigher Machine Automatic weighing and dispensing machine
- High Accuracy Linear Weigher 4 Head Linear Weigher Machine Automatic weighing and dispensing machine
- Particle packaging machine counting packaging machine
- Vertical packaging machine particle counting machine
- Instant coffee stick bag Automatic counting collection and cartoning Machine box packaging machine
- Automatic butter filling and nitrogen filing flow packing machine for Sandwich Bread Hamburger
- Автоматическая машина для резки рулонов на листы
Find Similar Products By Category
- Packaging & Printing > Packing Machinery > Multi-Function Packing Machine
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now
Zhejiang Soulyam Machinery Co., Ltd.
AIBot OnlineThis conversation is AI-generated. Contact manufacturer before transaction to confirm info.
-
sales
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile
