General Automatic 3/4'' AW4000-06D Auto Drain Pressure Air Source Treatment Pneumatic Air Filter Regulator
- T/T Credit Card
You May Like
-
High Quality 3V Series 3V210-08 2/3 Way 12V 24V Single Electrical Control Pneumatic Solenoid Volves
-
Factory Price Basic JM Series JM322 JM322R 1/4 Thread 3 Port 2 Way Mechanical Valve Pneumatic Valve
-
High Quality SMC Pneumatic Air Source Treatment AC Series Adjustable Three Unit FRL Unit
-
Best Selling Pneumatic Solenoid Valve Supplier JM322 JM322R 1/4 Thread 3 Port 2 Way Mechanical Valve Pneumatic Valve
-
High Quality AC Series AC2010-01D FRL Combination Two Unit Air Source Treatment Dyad With Auto Drain
-
Pneumatic Solenoid Valve Standard Steel JM322R 1/4 Thread 3 Port 2 Way Mechanical Valve Pneumatic Valve
Product Description

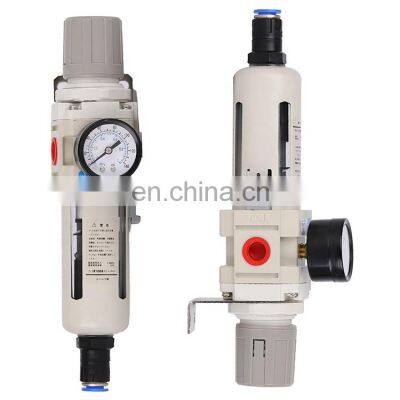

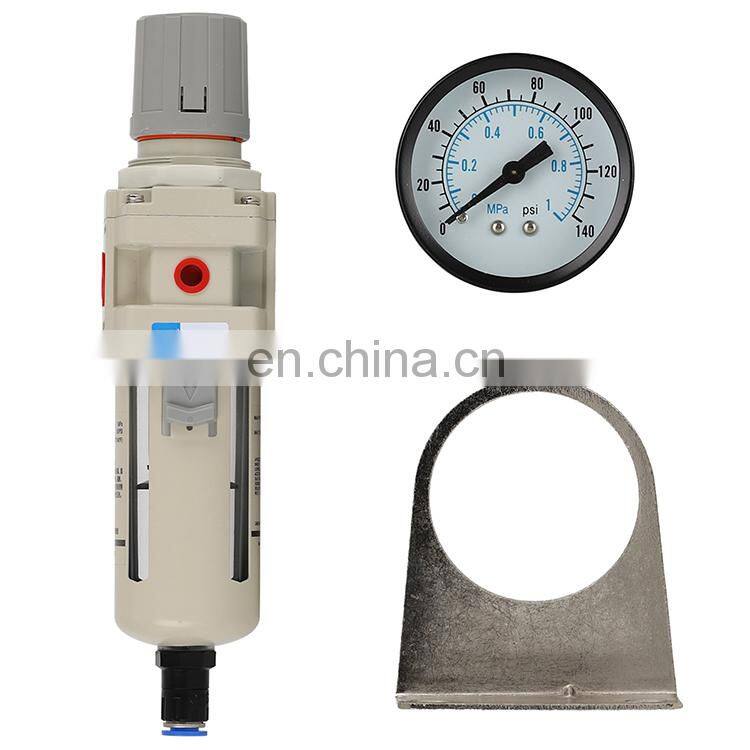

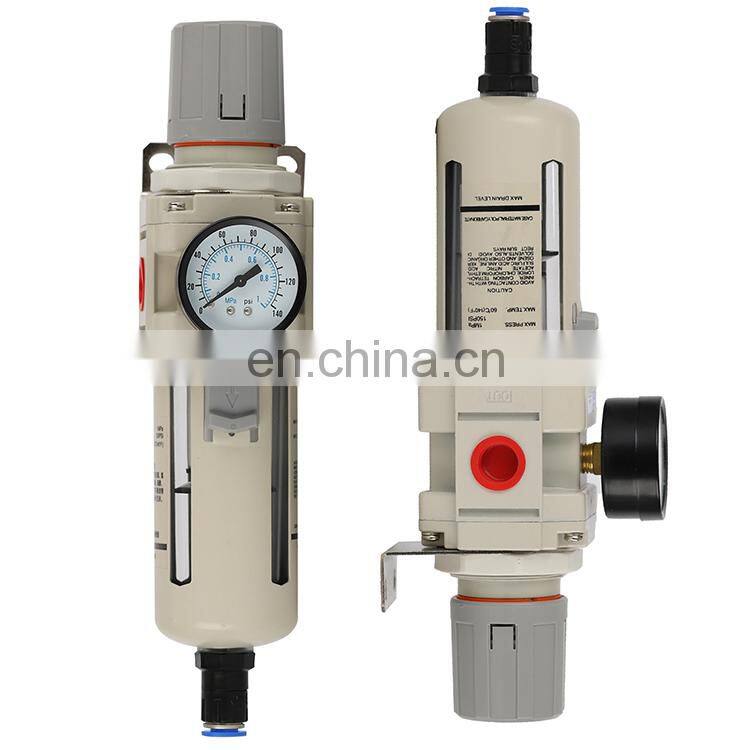

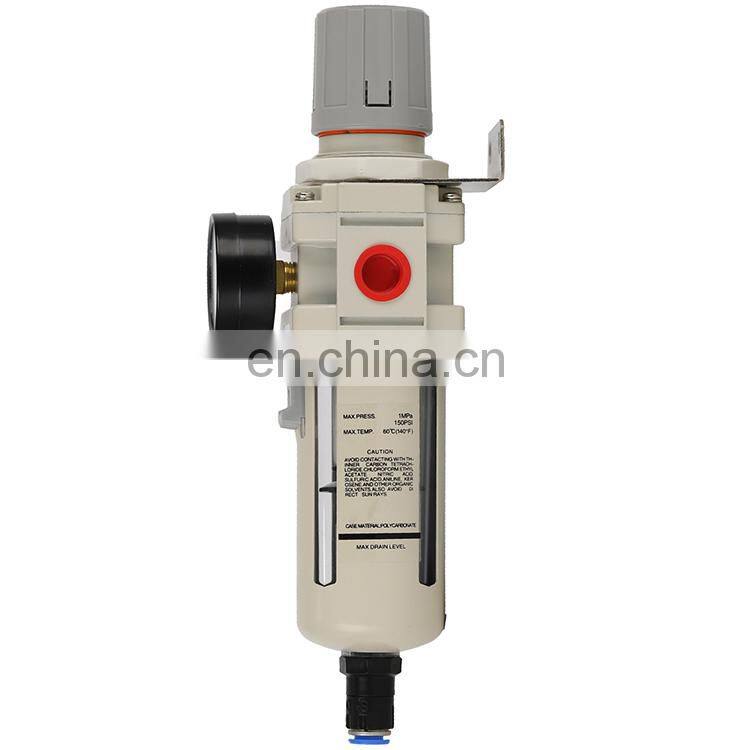

General Automatic 3/4'' AW4000-06D Auto Drain Pressure Air Source Treatment Pneumatic Air Filter Regulator
Feature:
Model Description
AW4000-06D (Model filter pressure reducing valve-specification-connection thread size-D: automatic drainage / manual drainage)
Made of high-quality materials, resistant to rust and corrosion, and durable.
Equipped with a pressure gauge, a transparent cover provides easier and clearer pressure readings.
Easy to install and remove, easy to operate, no additional tools or accessories required.
Quality testing provides maximum reliability and performance even in the harshest environments.
Widely used in various pneumatic instruments and other pneumatic equipment.
We have multiple specifications, if you need, you can click other links in the store or consult customer service staff. Thank you.
Product Description
Clean looking,modular design
energy saving with high flow rate
compact spacer with bracket reduces total assembly space
optional pressure gauge and body size
| Model |
AW2000-01 AW2000-01D |
AW2000-02 AW2000-02D |
AW3000-02 AW3000-02D |
AW3000-03 AW3000-03D |
AW4000-03 AW4000-03D |
AW4000-04 AW4000-04D |
AW4000-06 AW4000-06D |
AW5000-06 AW5000-06D |
AW5000-10 AW5000-10D |
|
| Port size RC(PT) | 1/8'' | 1/4'' | 1/4'' | 3/8'' | 3/8'' | 1/2'' | 3/4'' | 3/4'' | 1/4'' | |
| Pressure gauge port size | 1/8'' | 1/8'' | 1/8'' | 1/8'' | 1/8'' | 1/4'' | 1/4'' | 1/4'' | 1/4'' | |
| Flow rate(L/Min) | 550 | 550 | 2000 | 2000 | 4000 | 4000 | 4500 | 5500 | 500 | |
| Fluid | Air | |||||||||
| Proof pressure | 1.5Mpa(15.3kgf/cm²) | |||||||||
| Max.operating pressure | 1.0Mpa(15.3kgf/cm²) | |||||||||
| Ambient & fluid temperature | 5~60°C | |||||||||
| Nominal filtration rate | 25µm | |||||||||
| Adjustable Pressure range | 0.05~0.85Mpa |
|||||||||
| Pressure gauge | Y40-01 |
Y50-02 | ||||||||
| Main parts material | Body | Aluminum alloy Pneumatic Hose | ||||||||
| Bowl | PC Pneumatic Cylinder Pneumatic Hose | |||||||||
| Bowl guard | AW1000~AW2000:without AW3000~AW5000:with(lron) | |||||||||
What model would you like? Click here to send us an enquiry,we will reply you ASAP.

Q1. What is your terms of packing? Air Source Treatment
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
If you have any other questions, please send us an enquiry,we will reply you ASAP.
