Professional Manufacture EFB Fibre Rotary Dryer

Product introduction of EFB fibre rotary dryer

EFB fibre rotary dryer can be used to dry sand, coal, sludge, coal slurry, brown coal, gypsum, mineral powder, iron powder, feed, chicken manure etc.It is widely used in building materials, metallurgy, cement and mining industry.It mainly consists of drum barrel, roll ring, wheel gear, lifting board, chain, reduction gears, and motors etc parts. It is matched with conveyor, dust remover and draught fan etc equipments.

Advantages of the EFB fibre rotary dryer:

1) Reasonable structure, excellent fabrication, high production, low consumption;
2) Convenient operation, economical & environmental etc.
3) Less failure, low maintenance cost;
4) For a wide range, it can be used for dry granular materials for the adhesion of the material is also very beneficial;
5)The operation flexibility is large, and the yield of the product is allowed to fluctuate greatly, and the quality of the product is not affected.

Product details of EFB fibre rotary dryer:

EFB fibre rotary dryer mainly consists of drum barrel, roll ring, wheel gear, lifting board, chain, reduction gears, and motors etc parts. It is matched with conveyor,dust remover and draught fan etc equipments.

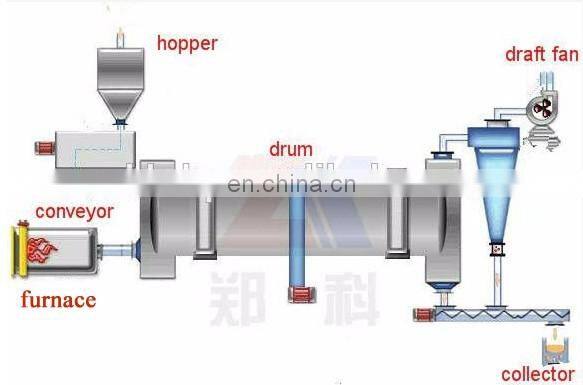

Working principle of EFB fibre rotary dryer:

The heat source of dryer is from combustion devices.This dryer adopts direct flow heating method. So the material should be sent to the shell by the feed chamber and feed chute. After that the material will be pushed backward by the spiral shoveling plate. As the dryer is located with a tilt, the material flows to the end by the gravity and circumduction meanwhile it is shoveled repeatedly by the shoveling plate to the upper end then comes down constantly, forming an even curtain in the drum and exchanging heat fully with the hot current in the drum. With the material being raised and scattered again and again, the moisture is dried gradually. Finally it is dried totally.

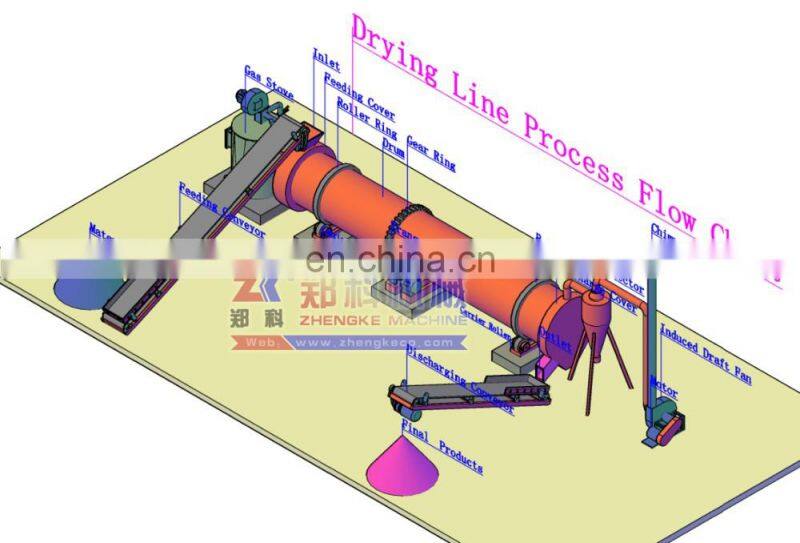

Production flow of EFB fibre rotary dryer:

Materials is conveyed to the inlet by feeding conveyor. Due to the EFB fibre rotary dryer is a rotating cylinder with a horizontal line and slightly sloping, the materials can flow to the end by the gravity and during the moving, EFB fibre can full contact with the heating, the moisture is dried gradually. Finally, the materials arrive in the discharge conveyor by the outlet.
