CE,ISO9001 Single Cylinder Cone Crusher Used for Road Construction/railway/sand Making

Single-cylinder hydraulic type conical crusher machinery for river stone crushing plant

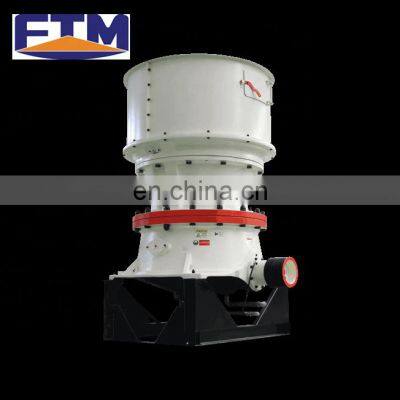

Single-cylinder hydraulic cone crusher introduction

Single-cylinder hydraulic cone crusher has advanced structural design, excellent crushing ability, terrific reliability and low production and operation costs. Through single hydraulic cylinder lifting cone, it realizes the functions of discharge port adjustment, cavity cleaning, iron through and overload protection, etc; equipped with electronic intelligent discharging port control system, it realizes more functions of production process control and operation optimization.

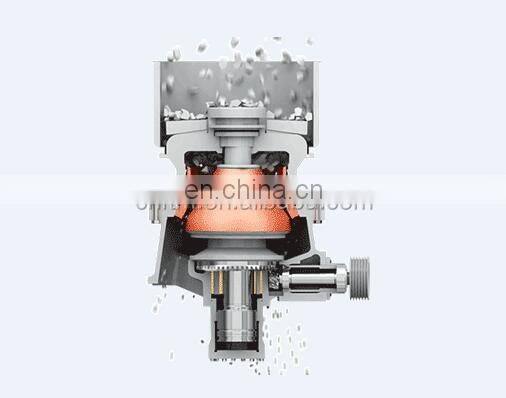

Single-cylinder hydraulic cone crusher  structure and working principle

Single-cylinder hydraulic cone crusher mainly consists of fixed cone, dynamic cone, eccentric bushing, transmission device, rack device, adjusting ring, feed bin, and adjustment device of discharge port, hydraulic station, lubrication station, special tools and other components.

In the crushing process, the eccentric sleeve is driven by the eccentric sleeve to perform the eccentric rotation to complete the crushing. The material enters the crushing chamber through the upper feeding hopper, and the crushed material is discharged from the discharging port by gravity.

Single-cylinder hydraulic cone crusher structure main features

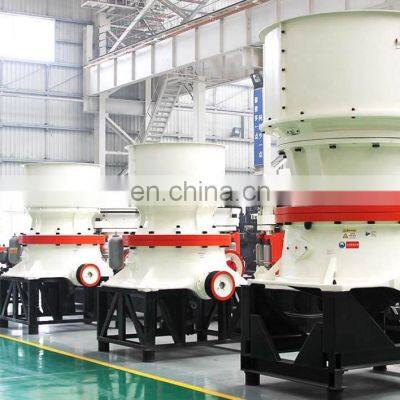

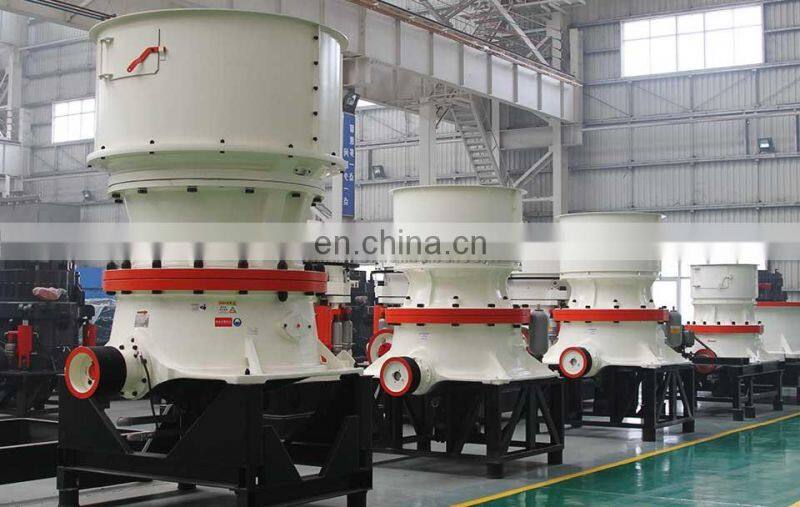

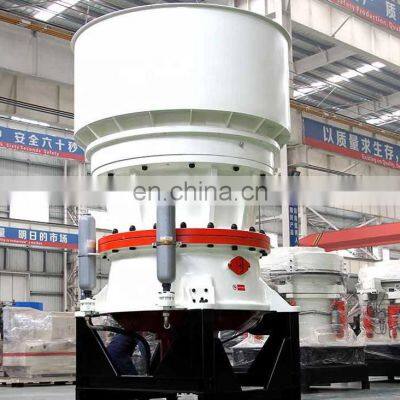

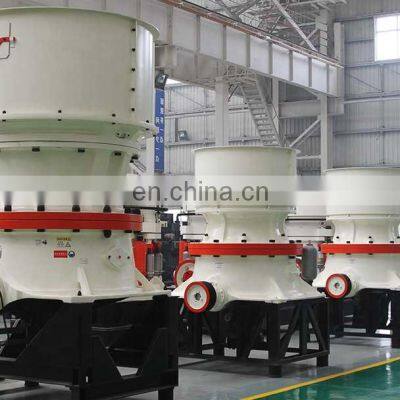

Single-cylinder hydraulic cone crusher structure detail pics

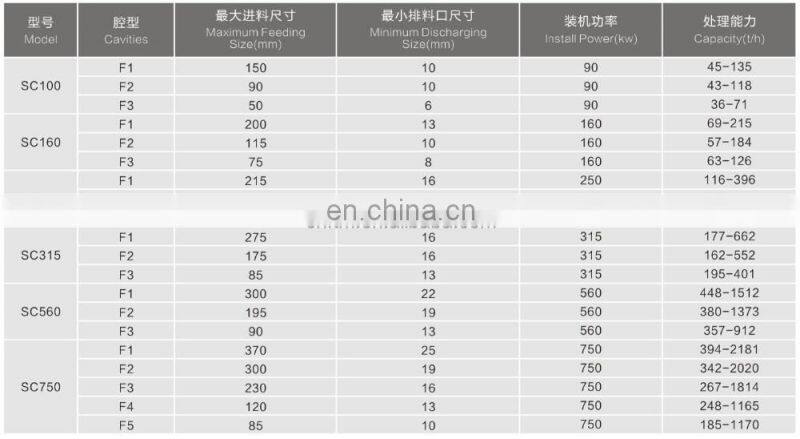

Single-cylinder hydraulic cone crusher structure technical parameter

Single-cylinder hydraulic cone crusher structure application

Cone crusher is widely used in metallurgy, construction, road building, and chemical hydrated silica industry. It can crush many kinds of ores and rocks with medium hardness, such as granite, barite, limestone, iron ore, gold ore, copper ore, etc.
There are many cavity types of each machine and then customers have many choices to meet their demands.
The optimized design and hydraulic protection of the cone crusher make it less faulty. In general, its trouble-free operation rate can exceed 90%.

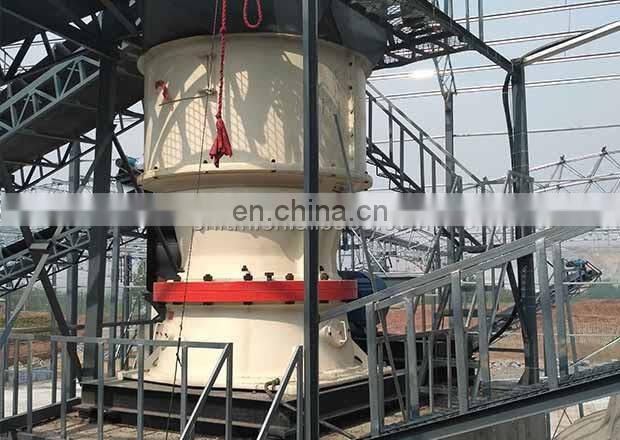

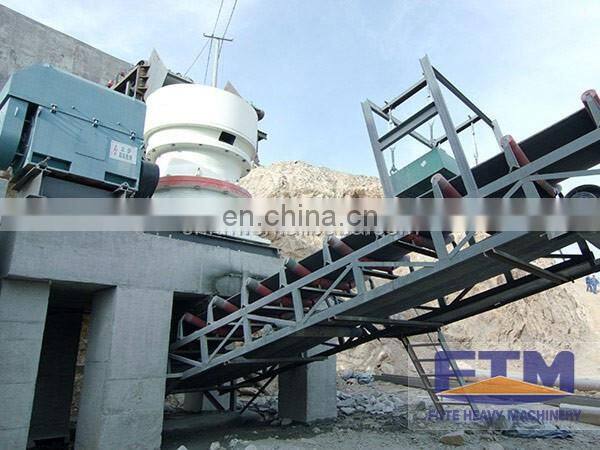

Single-cylinder hydraulic cone crusher structure working sites

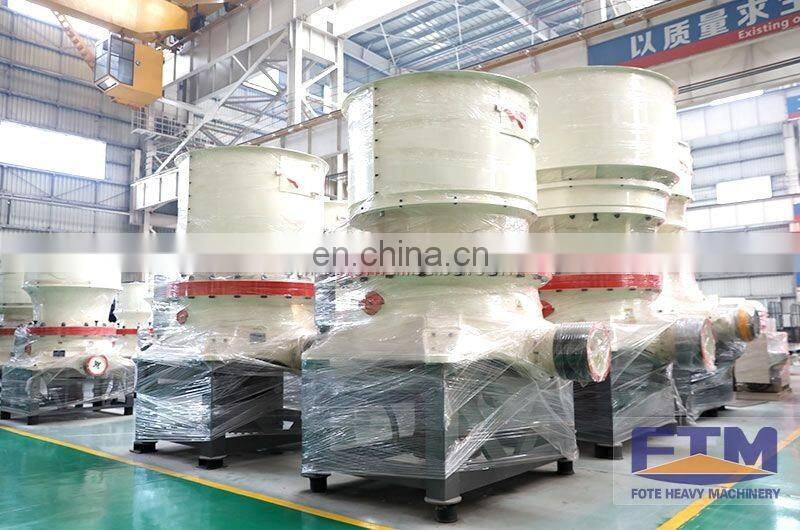

Packing

Small parts and electric motor will be put into wooden cases; while the large parts are in nude.

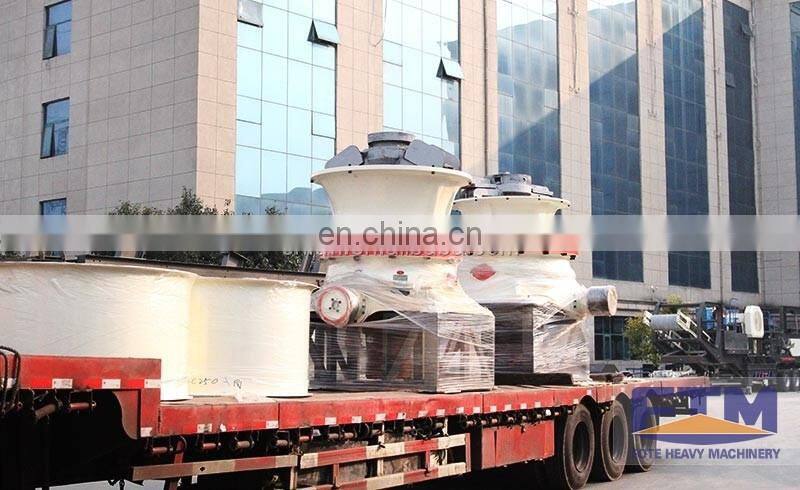

Shipping
1. Standard containers like 20", 40", etc available
2. Bulk shipping etc available
3. By sea, by air, by land, based on customer request
4. Normal using sea port: Qingdao, Tianjin, Shanghai

We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.

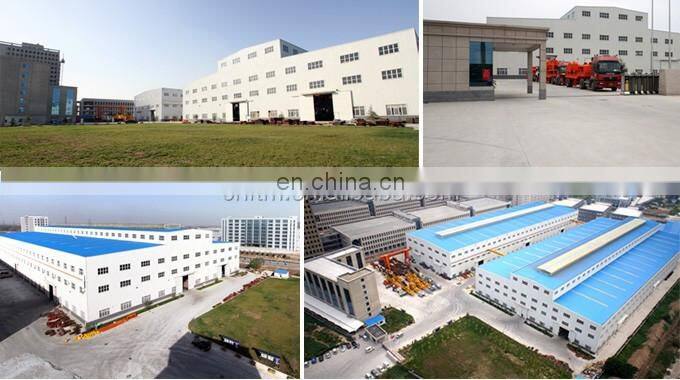

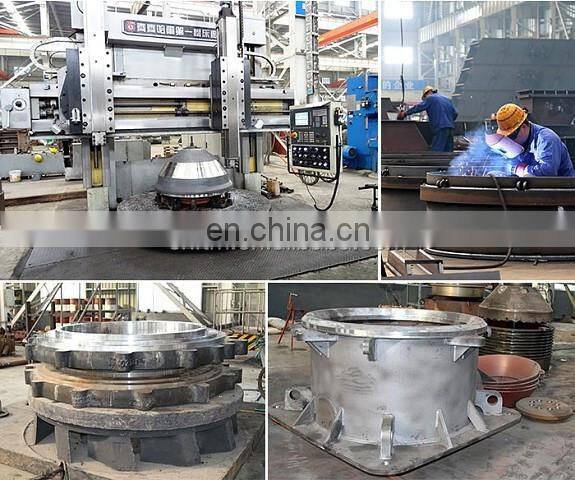

Henan Fote Heavy Machinery Co., Ltd. is a large joint-stock company specialized in manufacturing heavy mining and civilian machinery. FTM has three production bases with an area of 240,000 square meters, more than 2000 employees, 160,000 square meters standardized heavy industrial plant, and about 500 sets of big and medium sized processing, riveting, welding and assembly equipment. After 30-year's construction and development, Fote has become famous production and export base of mining machinery and civilian machinery in China.
