Product Description
Please contact me before purchasing for the shipment and price and detailed configuraiton.
If you want to make bulk purchase or be our agent, please contact with us.

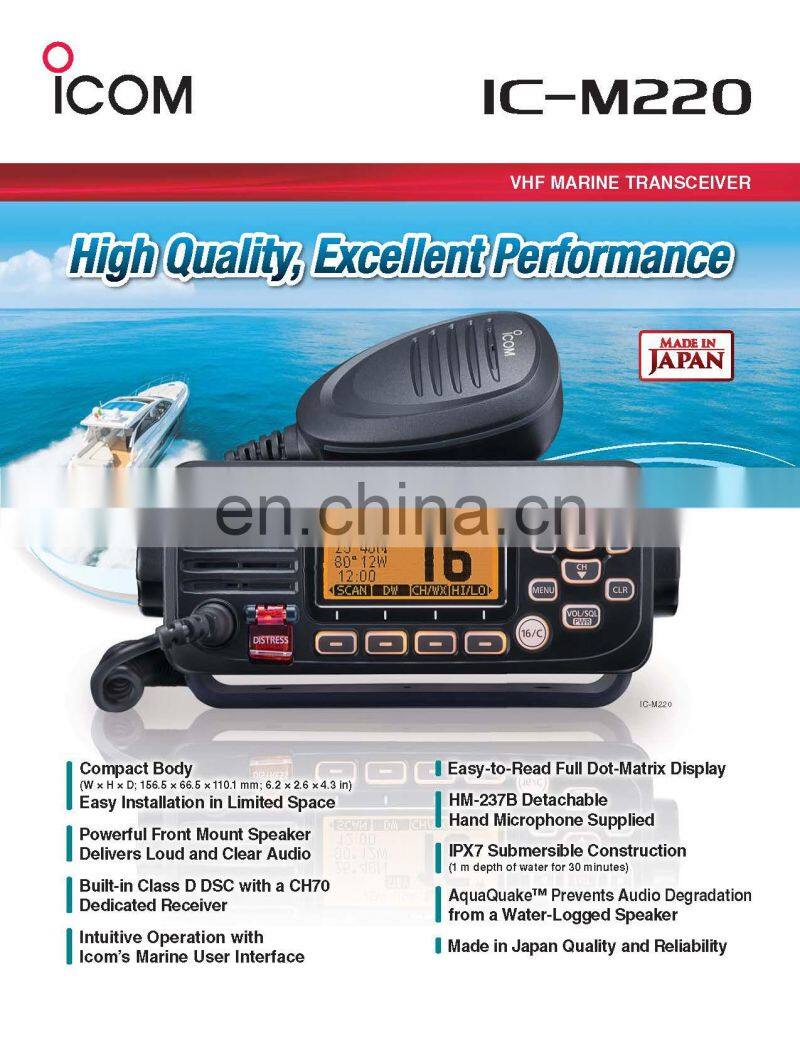

Compact Body (W × H × D; 156.5 × 66.5 × 110.1 mm; 6.2 × 2.6 × 4.3 in)
Easy Installation in Limited Space
Powerful Front Mount Speaker
Delivers Loud and Clear Audio
Built-in Class D DSC with a CH70
Dedicated Receiver
Intuitive Operation with
Icom’s Marine User Interface
Easy-to-Read Full Dot-Matrix Display
HM-237B Detachable
Hand Microphone Supplied
IPX7 Submersible Construction
(1 m depth of water for 30 minutes)
AquaQuake™ Prevents Audio Degradation
from a Water-Logged Speaker
Made in Japan Quality and Reliability

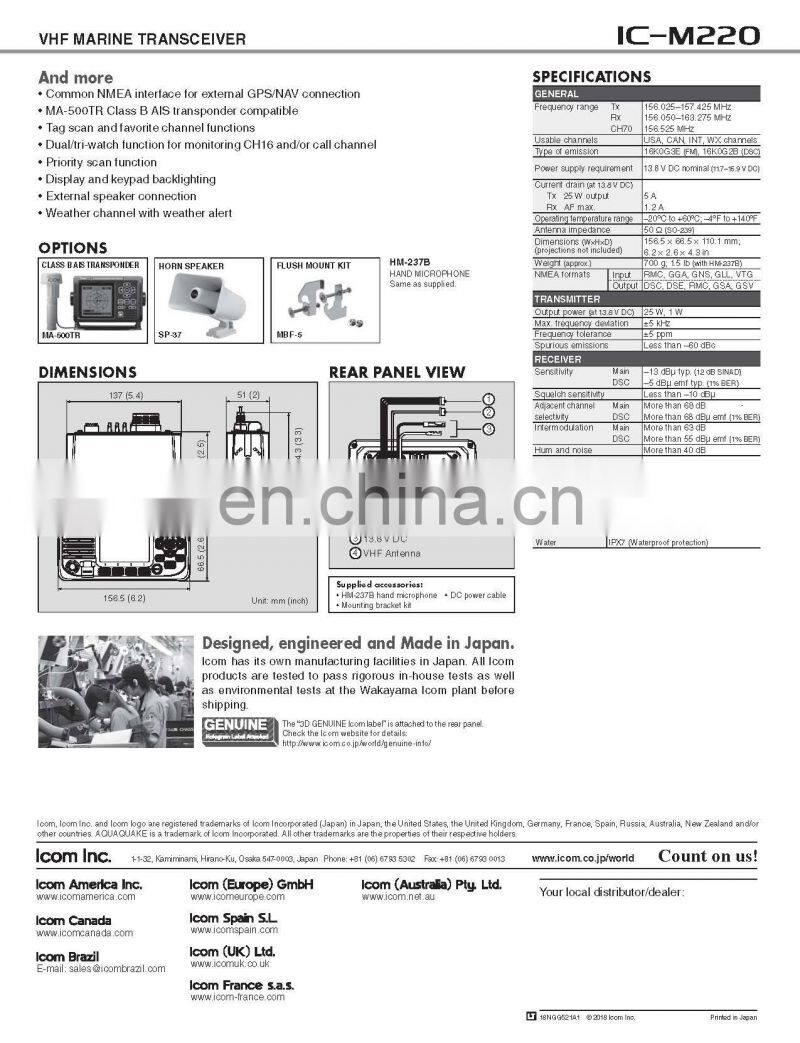

Other Features
Common NMEA interface for external GPS/NAV connection
MA-500TR Class B AIS transponder compatible
Tag scan and favorite channel functions
Dual/tri-watch function for monitoring CH16 and/or call channel
Priority scan function
Display and keypad backlighting
External speaker connection
Weather channel with weather alert
General
| Frequency range | TX | 156.025–157.425 MHz |
|---|---|---|
| RX | 156.050–163.275 MHz | |
| CH70 | 156.525 MHz | |
| Usable channels | USA, CAN, INT, WX channels | |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC) | |
| Power supply requirement | 13.8 V DC nominal (11.7–15.9 V DC) |
|
| Current drain (at 13.8 V DC) |
TX 25W output | 5 A |
| RX AF max. | 1.2 A | |
| Operating temperature range | –20°C to +60°C; –4°F to +140°F | |
| Antenna impedance | 50 Ω(SO-239) | |
| Dimensions (W×H×D) (Projections not included) |
156.5×66.5×110.1 mm; 6.2×2.6×4.3 inch |
|
| Weight (approx.) | 700 g; 1.5 lb (with HM-237B) | |
| NMEA formats | Input | RMC, GGA, GNS, GLL, VTG |
| Output | DSC, DSE, RMC, GSA, GSV |
