YaTai type c sc connector wdm 1x16 way fiber optic optical plc splitter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
SC/APC Fiber Optic Adapter Single Mode Simplex SC APC fiber flange optic adaptor
-
Good quality YaTai sc cleaver optical fiber cable connector fast connector
-
2021 YaTai yellow sc 1 core ftth fiber optical drop cable patch cord
-
Best Seller communication accessories 50~26dbm -70-+3 dBm Tool Kit Optical Power Meter
-
High quality 1310nm 1550nm swift k7 62 s splicing machine optic fiber fusion splicer
-
wholesale splicing single mode AI 7 connector optic fiber fusion splicer
Product Description

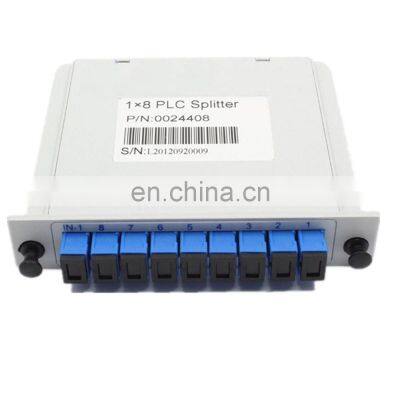

Card Type Optical Fiber Splitter
SC UPC/APC
Product description
|
Parameters |
|||||||
|
Item |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
1x128 |
|
Max. Insertion Loss (dB) |
≤4.1 |
≤7.4 |
≤10.5 |
≤13.8 |
≤17.1 |
≤20.4 |
≤23.8 |
|
Uniformity (dB) |
≤0.8 |
≤0.8 |
≤0.8 |
≤1.0 |
≤1.5 |
≤2.0 |
≤2.0 |
|
PDL (dB) |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.5 |
|
Wavelength Dependent Loss (dB) |
≤0.8 |
≤0.8 |
≤0.8 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.2 |
|
Return Loss (dB) |
≥50 |
≥50 |
≥50 |
≥50 |
≥50 |
≥50 |
≥50 |
|
Directivity (dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
|
Item |
2x2 |
2x4 |
2x8 |
2x16 |
2x32 |
2x64 |
2x128 |
|
Max. Insertion Loss (dB) |
≤4.4 |
≤7.7 |
≤10.8 |
≤14.1 |
≤17.4 |
≤20.7 |
≤24.1 |
|
Uniformity (dB) |
≤0.8 |
≤1.0 |
≤1.0 |
≤1.5 |
≤2.0 |
≤2.5 |
≤2.5 |
Stable Transmission
High quality coupler
Use with confidence
Less loss, Higher reurn loss , good repeatability
Adapt to many different enviroments
