Home > Products > CATV/Trunk Amplifier > high quality 4 outputs power consumption outdoor line catv signal trunk amplifier

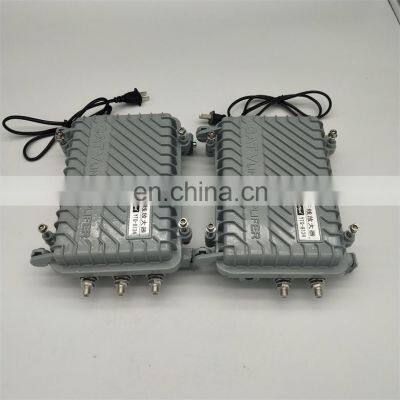

high quality 4 outputs power consumption outdoor line catv signal trunk amplifier
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
wholesale adjustable resistance signal metal two way outdoor trunk amplifier
-
catv ftth shutter mini fiber passive micro optical receiver node rfog hfc optical mini node receiver with power supply
-
Hot selling 1550/1577/1270 nm 5G/10G XGPON FTTH Mini active optical node CATV Optical Receiver
-
1550/1577/1270 nm XGPON 1RF CATV Optical WDM Receiver Mini Node
-
Indoor 2 outputs 106dbuv high power out fiber ftth rf catv fttb optical receiver with AGC
-
Free Print Mini Optical Receiver Optical Receiver With AGC Price
Product Description
Item : | Unit | YTG7134 | YTG8134 | reverse parameters |
Frequency Range | MHZ | 47/750 | 47-860 | 5-30/42/65 |
Frequency Division ( Selected by the user ) | MHZ | 30/47,42/58 ,65/87 | ||
Rated Gain | dB | 30 | 30 | -2 |
Flatness In Band | dB | ±0.75 | ±0.75 | +0.3 |
Rated Input Level | dBµV | 72 | 72 | 98 |
Rated Output Level | dBµV | 102 | 102 | 96-80 |
Gain Adjustment Range | dB | 0-20 | -2-18 | |
Slope Adjustment Range | dB | 0~20 | -3dB/ grade | |
Noise figure | dB | ≤8 | ≤10 | ≤6 |
(CTB)/59CH input | dB | 63 | 61 | 78 |
(CSO)/59CH input | dB | 62 | 61 | 70 |
Temperature Range (-15℃~45℃) | dB | -1.5dB-1dB |
Reverse parameters take SA8134 as example | |
Return Loss | dB | ≥16 |
| |
Lightning Resistance | KV | 5(10/700S) |
| |
Power Voltage | V | AC 220±10%or AC 30~90v |
| |
Power Consumption | VA | 12 |
| |
Dimensions | mm | 190×260×90 |
| |
Working Temperature | ℃ | -20±50 |
| |
Weight | Kg | 1.82 |
| |
Bidirectional transmission function |
| (35/47M or 65/87M)optional | ||
